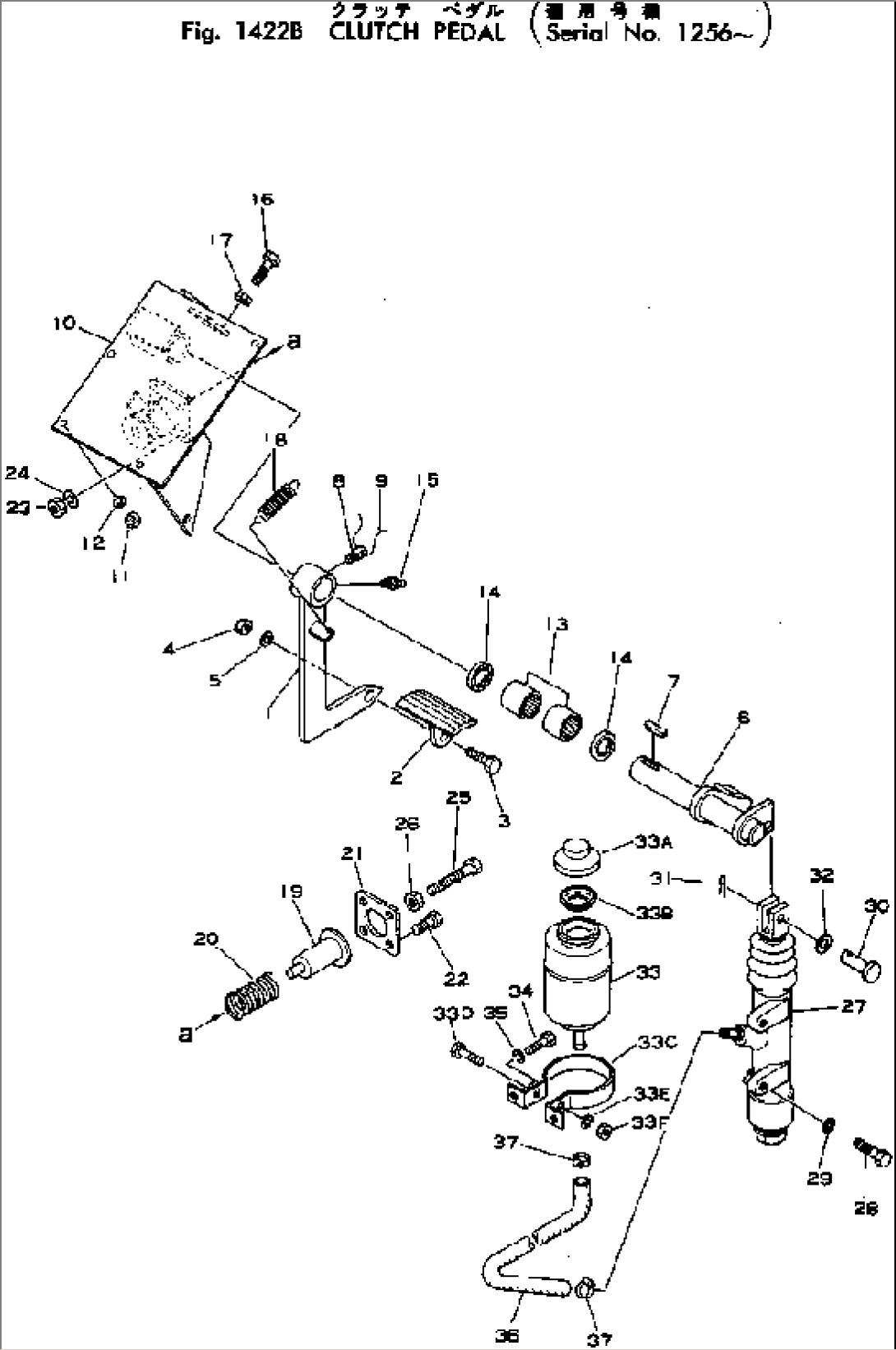

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 565-43-74114 | LEVER | 1256- | |
| 2 | 560-43-14120 | PEDAL | 510- | |
| 3 | 01010-31035 | BOLT | 726- | |
| 4 | 01580-01008 | NUT | 726- | |
| 5 | 01602-01030 | WASHER | 726- | |
| 6 | 565-43-74234 | SHAFT | 1256- | |
| 7 | 04000-00732 | KEY | 1256- | |
| 8 | 01306-00820 | SCREW | 1256- | |
| 9 | 04059-01032 | WIRE | 1256- | |
| 10 | 565-43-74134 | BRACKET | 1256- | |
| 11 | 01580-01210 | NUT | 1256- | |
| 12 | 01602-01236 | WASHER | 1256- | |
| 13 | 06120-02520 | BEARING | 1256- | |
| 14 | 06122-02504 | SEAL | 1256- | |
| 15 | 07020-00000 | FITTING | 1256- | |
| 16 | 01010-31030 | BOLT | 1256- | |
| 17 | 01580-01008 | NUT | 1256- | |
| 18 | 565-32-11710 | SPRING | 1256- | |
| 19 | 565-43-18530 | SHAFT | 1256- | |
| 20 | 565-43-18431 | SPRING | 1256- | |
| 21 | 565-43-18520 | COVER | 726- | |
| 22 | 01010-30820 | BOLT | 726- | |
| 23 | 01580-00806 | NUT | 726- | |
| 24 | 01602-00825 | WASHER | 726- | |
| 25 | 01016-31030 | BOLT | 1256- | |
| 26 | 01580-01008 | NUT | 726- | |
| 27 | (565-43-13300) | CYLINDER ASS'Y | 1256- | |
| 28 | 01010-31220 | BOLT | 1256- | |
| 29 | 01602-01236 | WASHER | 1256- | |
| 30 | 04205-01238 | PIN | 1256- | |
| 31 | 04050-03022 | PIN | 1256- | |
| 32 | 01641-01223 | WASHER | 1256- | |
| 32 | 565-43-13900 | TANK ASS'Y | 1256- | |
| 33 | 565-43-13910 | TANK | 1256- | |
| 33A | 565-43-13930 | CAP | 1256- | |
| 33B | 565-43-13920 | PLATE | 1256- | |
| 33C | 565-43-13940 | CLAMP | 1256- | |
| 33D | 01010-30625 | BOLT | 1256- | |
| 33E | 01602-00619 | WASHER | 1256- | |
| 33F | 01580-00605 | NUT | 1256- | |
| 34 | 01010-30816 | BOLT | 1256- | |
| 35 | 01602-00825 | WASHER | 1256- | |
| 36 | 07260-20940 | HOSE | 1256- | |
| 37 | 07280-01920 | CLAMP | 1256- |
