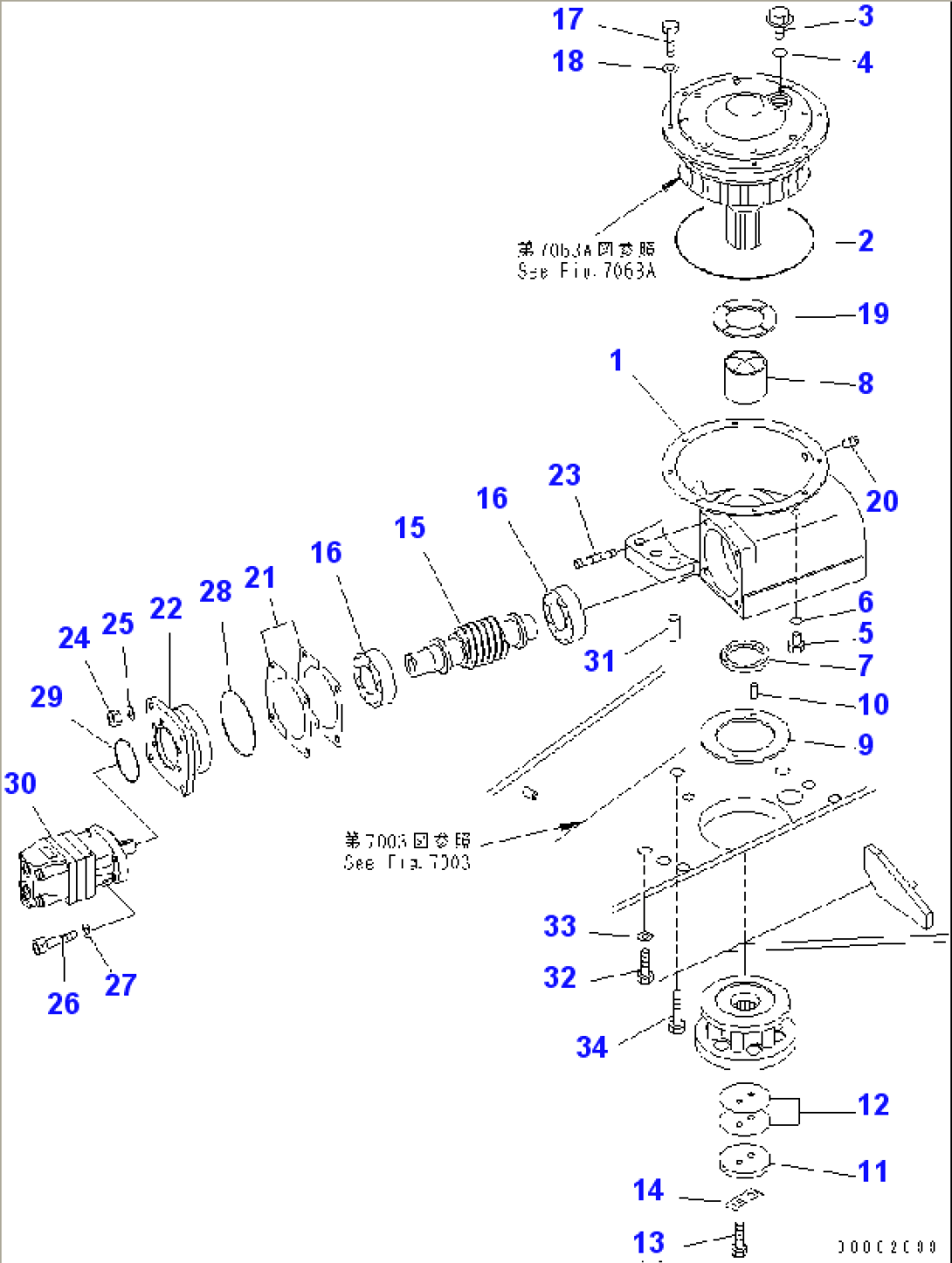

CLUTCH TYPE CIRCLE REVERSE GEAR (1/2) (WET TYPE)(#13139-)

Item	Part No.	Part Name	Qty	Serial No.
1	23B-70-52110	CASE		13139-
2	07000-15260	O-RING		13139-
3	07041-13012	PLUG		13139-
4	07002-13034	O-RING		13139-
5	07040-11812	PLUG		13139-
6	07002-11823	O-RING		13139-
7	23B-70-52290	SEAL		13139-
8	23B-70-52190	BUSHING		13139-
9	234-70-35360	PLATE		13139-
10	706-75-42830	PIN,DOWEL		13139-
11	04080-06012	HOLDER		13139-
12	234-71-13320	SHIMÂ¤ 0.5MM		13139-
13	01010-81235	BOLT		13139-
14	04081-06012	LOCK		13139-
15	23B-70-52121	WORM		13139-
16	06002-30310	BEARING		13139-
17	01010-81030	BOLT		13139-
18	01643-31032	WASHER		13139-
19	23B-70-52320	PLATE		13139-
20	07042-70108	PLUG		13139-
21	238-70-16210	SHIMÂ¤ 0.1MM		13139-
	238-70-16220	SHIMÂ¤ 0.2MM		13139-
	238-70-16240	SHIMÂ¤ 1.0MM		13139-
	23B-70-52470	SHIMÂ¤ 0.05MM		.-
22	23B-70-52250	HOUSING		13139-
23	01140-81235	STUD		13139-
24	01582-11210	NUT		13139-
25	01643-31232	WASHER		13139-
26	01252-41035	BOLT		13139-
27	01643-31032	WASHER		13139-
28	07000-12130	O-RING		13139-
29	23B-70-16240	O-RING		13139-
30	23B-62-41100	MOTOR ASS'Y,CIRCLE REVOLUTION		13139-
31	232-71-13151	PIN		13139-
32	01010-82465	BOLT		13139-
33	01643-32460	WASHER		13139-
34	01010-82050	BOLT		13139-
