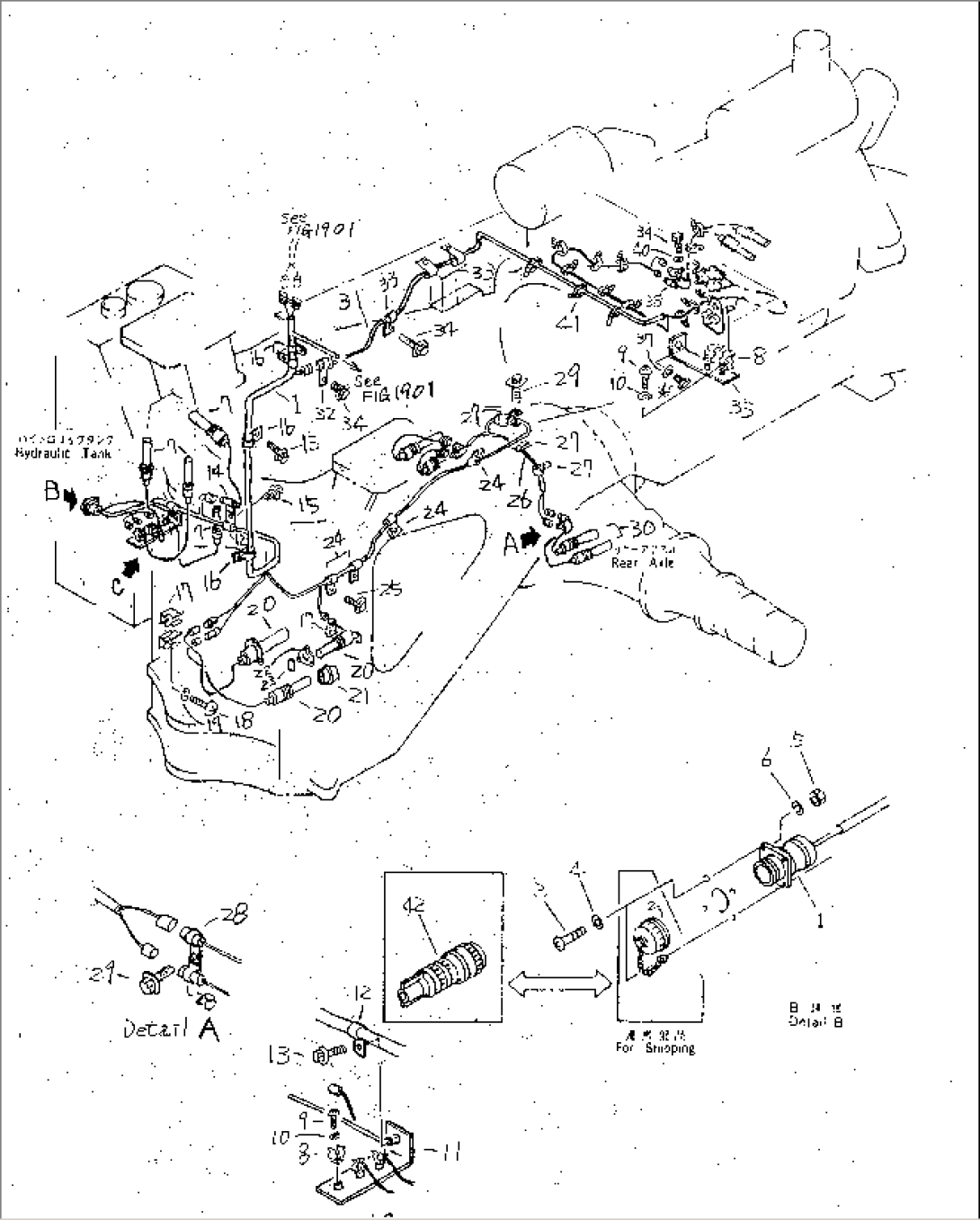

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (428-S12-1110) | WIRING HARNESS | 10001- | |
| 2 | 426-06-11650 | CAP | 10001- | |
| 3 | 01220-40320 | SCREW | 10001- | |
| 4 | 01641-20305 | WASHER | 10001- | |
| 5 | 01580-10302 | NUT | 10001- | |
| 6 | 01601-20307 | WASHER | 10001- | |
| 7 | 600-815-6330 | HEATER | 10001- | |
| 8 | 08052-01711 | CLIP | 10001- | |
| 9 | 01220-40608 | SCREW | 10001- | |
| 10 | 01641-20608 | WASHER | 10001- | |
| 11 | 428-Z91-1210 | BRACKET | 10001- | |
| 12 | 08036-92514 | CLIP | 10001- | |
| 13 | 01435-01020 | BOLT | 10001- | |
| 14 | 08052-41711 | CLIP | 10001- | |
| 15 | 01435-01016 | BOLT | 10001- | |
| 16 | 08036-93014 | CLIP | 10001- | |
| 17 | 08052-01711 | CLIP | 10001- | |
| 18 | 01220-40608 | SCREW | 10001- | |
| 19 | 01641-20608 | WASHER | 10001- | |
| 20 | 600-815-6330 | HEATER | 10001- | |
| 21 | 426-Z91-1220 | PLUG | 10001- | |
| 22 | 426-Z91-1210 | COVER | 10001- | |
| 23 | 07000-42115 | O-RING | 10001- | |
| 24 | 08036-91014 | CLIP | 10001- | |
| 25 | 01435-01016 | BOLT | 10001- | |
| 26 | 427-Z91-1270 | WIRING HARNESS | 10001- | |
| 27 | 08036-90814 | CLIP | 10001- | |
| 28 | 08052-41711 | CLIP | 10001- | |
| 29 | 01435-01016 | BOLT | 10001- | |
| 30 | 600-815-6330 | HEATER | 10001- | |
| 31 | 428-S12-1120 | WIRING HARNESS | 10001- | |
| 32 | 08052-42411 | CLIP | 10001- | |
| 33 | 08036-91814 | CLIP | 10001- | |
| 34 | 01435-01016 | BOLT | 10001- | |
| 35 | 426-Z91-1180 | BRACKET | 10001- | |
| 36 | 01010-51225 | BOLT | 10001- | |
| 37 | 01643-31232 | WASHER | 10001- | |
| 38 | 08052-11711 | CLIP | 10001- | |
| 39 | 01010-51045 | BOLT | 10001- | |
| 40 | 01643-31032 | WASHER | 10001- | |
| 41 | 08034-20536 | BAND | 10001- | |
| 42 | 426-06-11630 | CONNECTOR | 10001- |
