| Item | Part No. | Part Name | Qty | Serial No. |
| 426-43-38012 | BRAKE COMP. ASS'Y | 55001- | ||
| 426-43-38032 | BRAKE COMP. ASS'Y | 55001- | ||
| 426-43-37033 | BRAKE COMP. ASS'Y | 55001- | ||

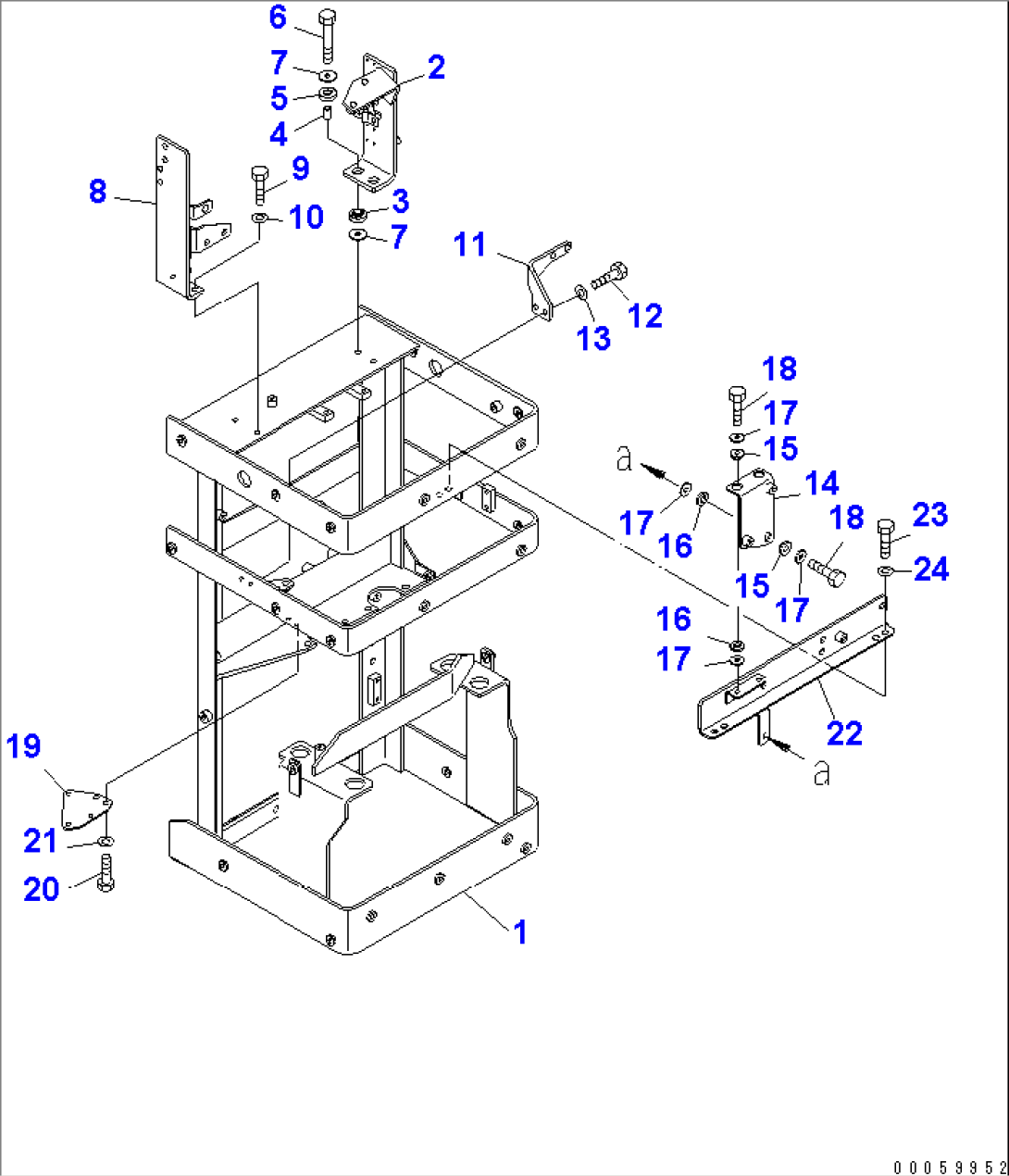

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K4470-01A0 TO K4470-12A1. | ||||
| 1 | 426-43-37296 | BRACKET | 55001- | |
| 2 | 426-43-39990 | BRACKET | 55001- | |
| 3 | 419-43-17930 | CUSHION | 55001- | |
| 4 | 421-62-18560 | SPACER | 55001- | |
| 5 | 415-64-13130 | CUSHION | 55001- | |
| 6 | 01010-81055 | BOLT | 55001- | |
| 7 | 415-64-13120 | WASHER | 55001- | |
| 8 | 426-43-38471 | BRACKET | 55001- | |
| 9 | 01010-81030 | BOLT | 55001- | |
| 10 | 01643-31032 | WASHER | 55001- | |
| 11 | 426-43-38562 | BRACKET | 55001- | |
| 12 | 01010-81025 | BOLT | 55001- | |
| 13 | 01643-31032 | WASHER | 55001- | |
| 14 | 426-43-37561 | BRACKET | 55001- | |
| 15 | 421-62-18550 | CUSHION | 55001- | |
| 16 | 421-62-23710 | CUSHION | 55001- | |
| 17 | 144-854-1890 | WASHER | 55001- | |
| 18 | 01010-81040 | BOLT | 55001- | |
| 19 | 426-43-37570 | PLATE | 55001- | |
| 20 | 01010-81020 | BOLT | 55001- | |
| 21 | 01643-31032 | WASHER | 55001- | |
| 22 | 426-43-38971 | PLATE | 55001- | |
| 23 | 01010-81230 | BOLT | 55001- | |
| 24 | 01643-31232 | WASHER | 55001- |
