| Item | Part No. | Part Name | Qty | Serial No. |
| (426-43-38012) | BRAKE COMP. ASS'Y | 55001- | ||
| (426-43-38032) | BRAKE COMP. ASS'Y | 55001- | ||
| (426-43-37033) | BRAKE COMP. ASS'Y | 55001- | ||
| (426-43-37024) | BRAKE COMP. ASS'Y | 55001- | ||
| (426-43-37062) | BRAKE COMP. ASS'Y | 55001- | ||
| (426-43-37052) | BRAKE COMP. ASS'Y | 55001- | ||

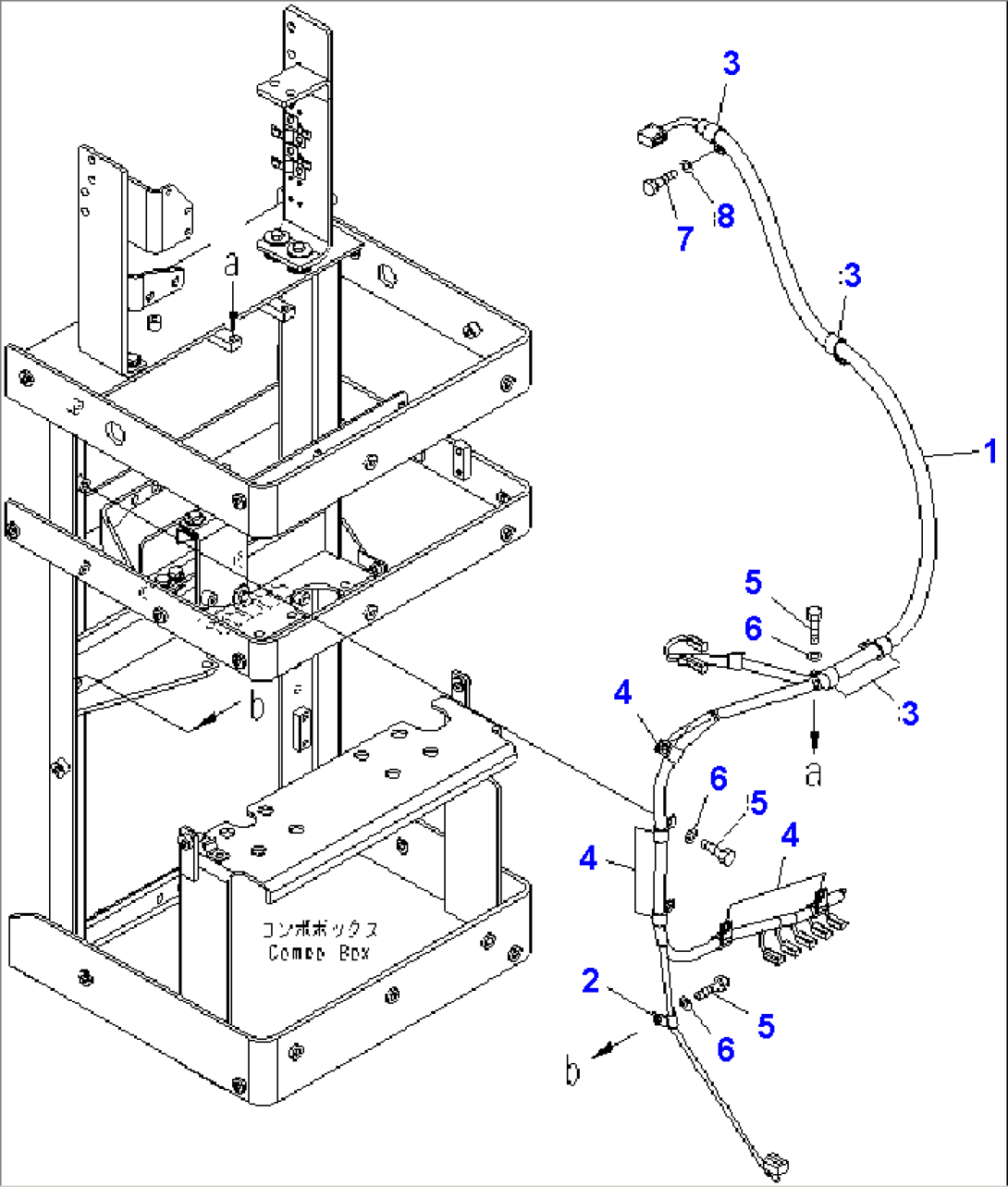

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K4470-01A0 TO K4470-12A1. | ||||
| 1 | 426-06-32244 | WIRE HARNESS | 55001- | |
| 2 | 04434-51010 | CLIP | 55001- | |
| 3 | 04434-51710 | CLIP | 55001- | |
| 4 | 04434-51410 | CLIP | 55001- | |
| 5 | 01010-81016 | BOLT | 55001- | |
| 6 | 01643-31032 | WASHER | 55001- | |
| 7 | 01010-81020 | BOLT | 55001- | |
| 8 | 01643-31032 | WASHER | 55001- |
