| Item | Part No. | Part Name | Qty | Serial No. |
| (426-43-37025) | BRAKE COMP. ASS'Y | 55003- | ||
| (\0\426-43-37024) | BRAKE COMP. ASS'Y | 55001-55002 | ||
| (426-43-37063) | BRAKE COMP. ASS'Y | 55003- | ||
| (\0\426-43-37062) | BRAKE COMP. ASS'Y | 55001-55002 | ||
| (426-43-37052) | BRAKE COMP. ASS'Y | 55001- | ||

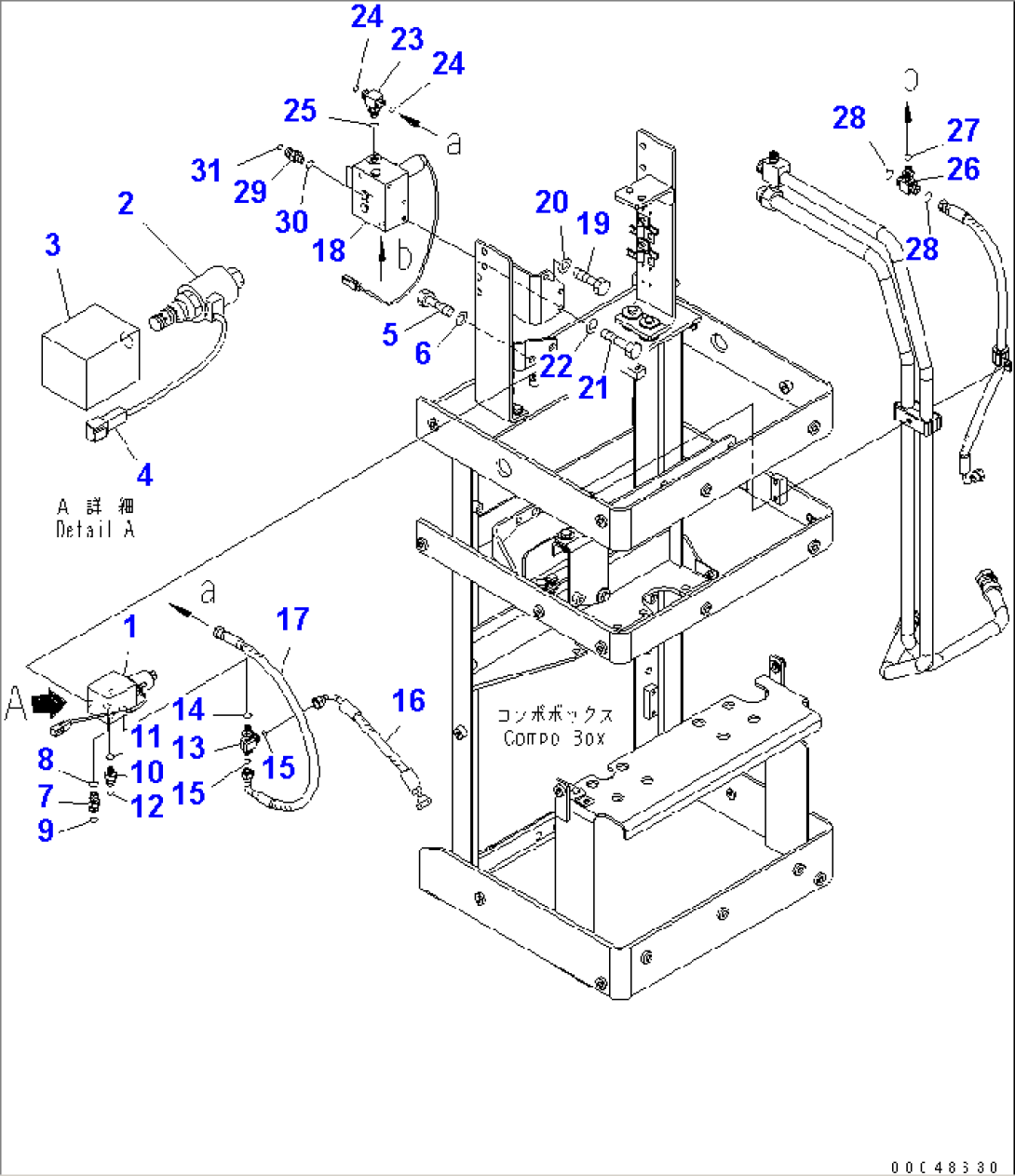

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K4470-01A3 TO K4470-12A1. | ||||
| 1 | 421-60-31800 | VALVE ASS'Y | 55001- | |
| 1 | 20Y-60-11803 | SOLENOID VALVE ASS'Y | 55001- | |
| 2 | 20Y-60-11713 | SOLENOID VALVE | 55001- | |
| 3 | 20Y-60-11810 | BLOCK | 55001- | |
| 4 | 08092-12810 | CONNECTOR | 55001- | |
| 5 | 01010-81225 | BOLT | 55001- | |
| 6 | 01643-31232 | WASHER | 55001- | |
| 7 | 02781-0031D | UNION | 55001- | |
| 8 | 07002-61423 | O-RING | 55001- | |
| 9 | 02896-61009 | O-RING | 55001- | |
| 10 | 22B-62-17380 | UNION | 55001- | |
| 11 | 07002-61423 | O-RING | 55001- | |
| 12 | 02896-61009 | O-RING | 55001- | |
| 13 | 21N-64-36680 | TEE | 55001- | |
| 14 | 07002-61423 | O-RING | 55001- | |
| 15 | 02896-61009 | O-RING | 55001- | |
| 16 | 426-43-36510 | HOSE | 55001- | |
| 17 | 426-43-36520 | HOSE | 55001- | |
| 18 | 426-62-32141 | VALVE ASS'Y | 55001- | |
| 19 | 01010-80820 | BOLT | 55001- | |
| 20 | 01643-30823 | WASHER | 55001- | |
| 21 | 01010-81020 | BOLT | 55001- | |
| 22 | 01643-31032 | WASHER | 55001- | |
| 23 | 02782-10311 | ELBOW | 55001- | |
| 24 | 07002-61423 | O-RING | 55001- | |
| 25 | 02896-61009 | O-RING | 55001- | |
| 26 | 21W-62-42630 | TEE | 55001- | |
| 27 | 07002-61423 | O-RING | 55001- | |
| 28 | 02896-61009 | O-RING | 55001- | |
| 29 | 02781-0031D | UNION | 55001- | |
| 30 | 07002-61423 | O-RING | 55001- | |
| 31 | 02896-61009 | O-RING | 55001- |
