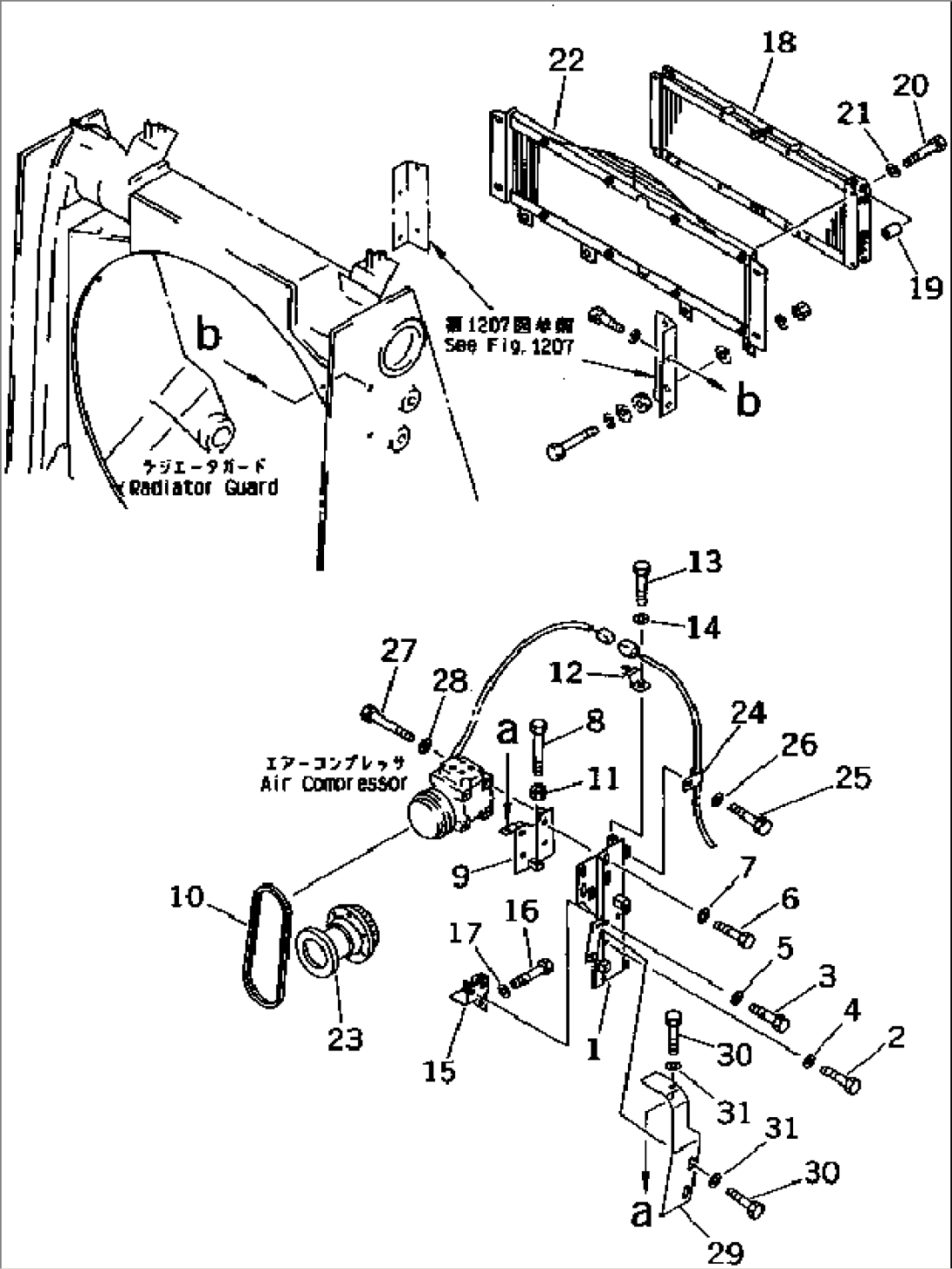

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-911-2891 | BRACKET | 16491- | |
| 2 | 01010-51030 | BOLT | 16001- | |
| 3 | 01010-51235 | BOLT | 16001- | |
| 4 | 01643-31032 | WASHER | 16001- | |
| 5 | 01643-31232 | WASHER | 16001- | |
| 6 | 01010-50825 | BOLT | 16001- | |
| 7 | 154-61-16570 | WASHER | 16001- | |
| 8 | 01016-31090 | BOLT | 16491- | |
| 9 | 17M-911-4520 | BRACKET | 16491- | |
| 10 | 04120-21748 | V-BELT | 16001- | |
| 11 | 01580-11008 | NUT | 16491- | |
| 12 | 08053-01510 | CLIP | 16491- | |
| 13 | 01010-51020 | BOLT | 16491- | |
| 14 | 01643-31032 | WASHER | 16491- | |
| 15 | 195-Z11-7651 | BRACKET | 16001- | |
| 16 | 01010-51285 | BOLT | 16001- | |
| 17 | 01643-31232 | WASHER | 16001- | |
| 17M-911-4680 | CONDENSER ASS'Y | 16491- | ||
| 18 | 17M-911-4690 | CONDENSER ASS'Y | 16491- | |
| 19 | 195-Z11-6320 | SPACER | 16001- | |
| 20 | 01010-51070 | BOLT | 16001- | |
| 21 | 01643-31032 | WASHER | 16001- | |
| 22 | 195-Z11-5111 | BRACKET | 16001- | |
| 23 | 6162-23-3200 | DRIVE ASS'Y | 16001- | |
| 24 | 21T-38-12270 | CLIP | 16001- | |
| 25 | 01010-51020 | BOLT | 16001- | |
| 26 | 01643-31032 | WASHER | 16001- | |
| 27 | 01010-50885 | BOLT | 16491- | |
| 28 | 01643-30823 | WASHER | 16491- | |
| 29 | 17M-911-4530 | COVER | 16491- | |
| 30 | 01010-51025 | BOLT | 16491- | |
| 31 | 01643-31032 | WASHER | 16491- |
