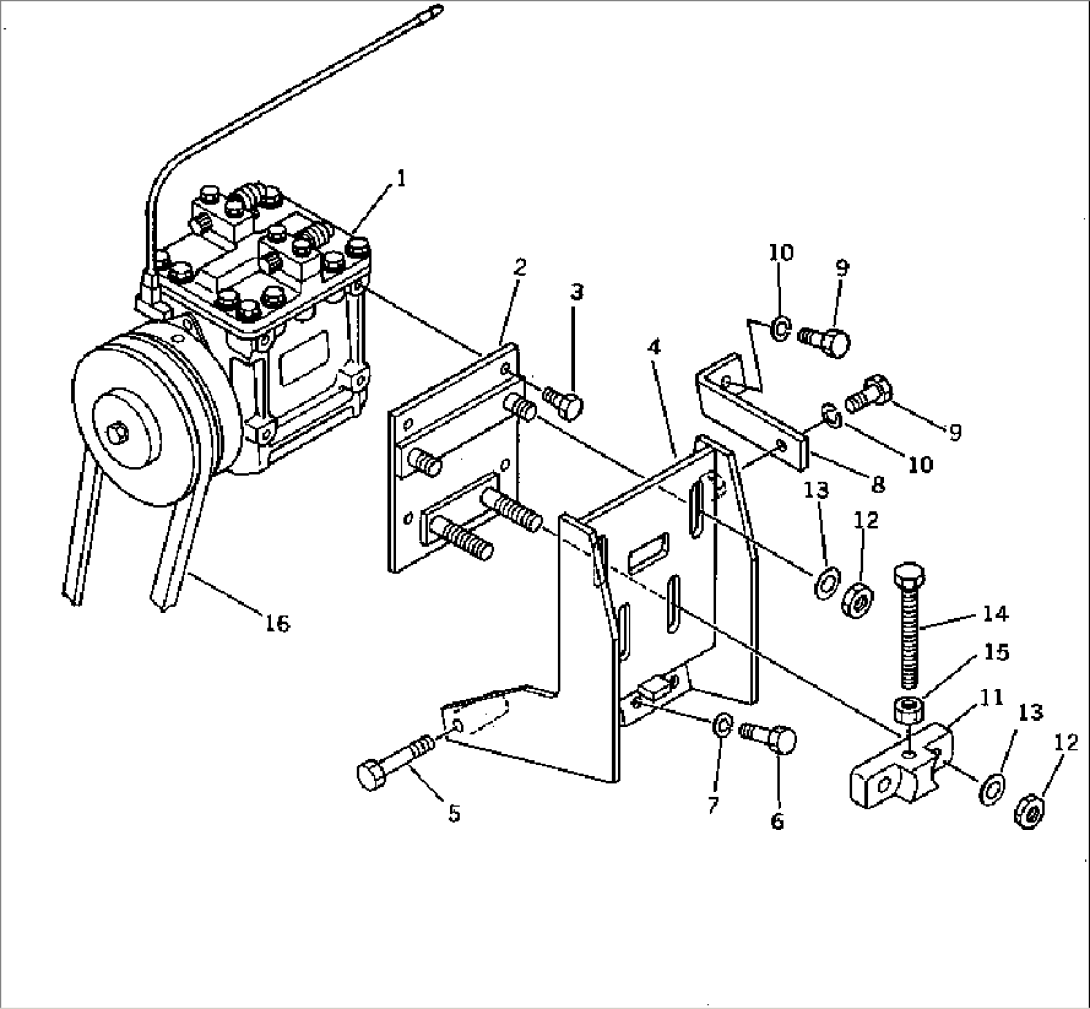

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 145-Z79-5400 | COMPRESSOR ASS'Y | 45001-@ | |
| 2 | 144-Z79-5320 | BRACKET | 45001-45921 | |
| 3 | 01010-50820 | BOLT | 45001-45921 | |
| 4 | 144-Z79-5310 | BRACKET | 45001-@ | |
| 5 | 01011-51055 | BOLT | 45001-@ | |
| 6 | 01010-51025 | BOLT | 45001-@ | |
| 7 | 01602-21030 | WASHER,SPRING | 45001-@ | |
| 8 | 144-Z79-5340 | BRACKET | 45001-@ | |
| 9 | 01010-51025 | BOLT | 45001-@ | |
| 10 | 01602-21030 | WASHER,SPRING | 45001-@ | |
| 11 | 144-Z79-5330 | BLOCK | 45001-@ | |
| 12 | 01583-11207 | NUT | 45001-45921 | |
| 13 | 01643-31232 | WASHER | 45001-@ | |
| 14 | 01016-51090 | BOLT | 45001-@ | |
| 15 | 01580-11210 | NUT | 45001-@ | |
| 16 | 04120-21755 | V-BELT | 45001-@ |
