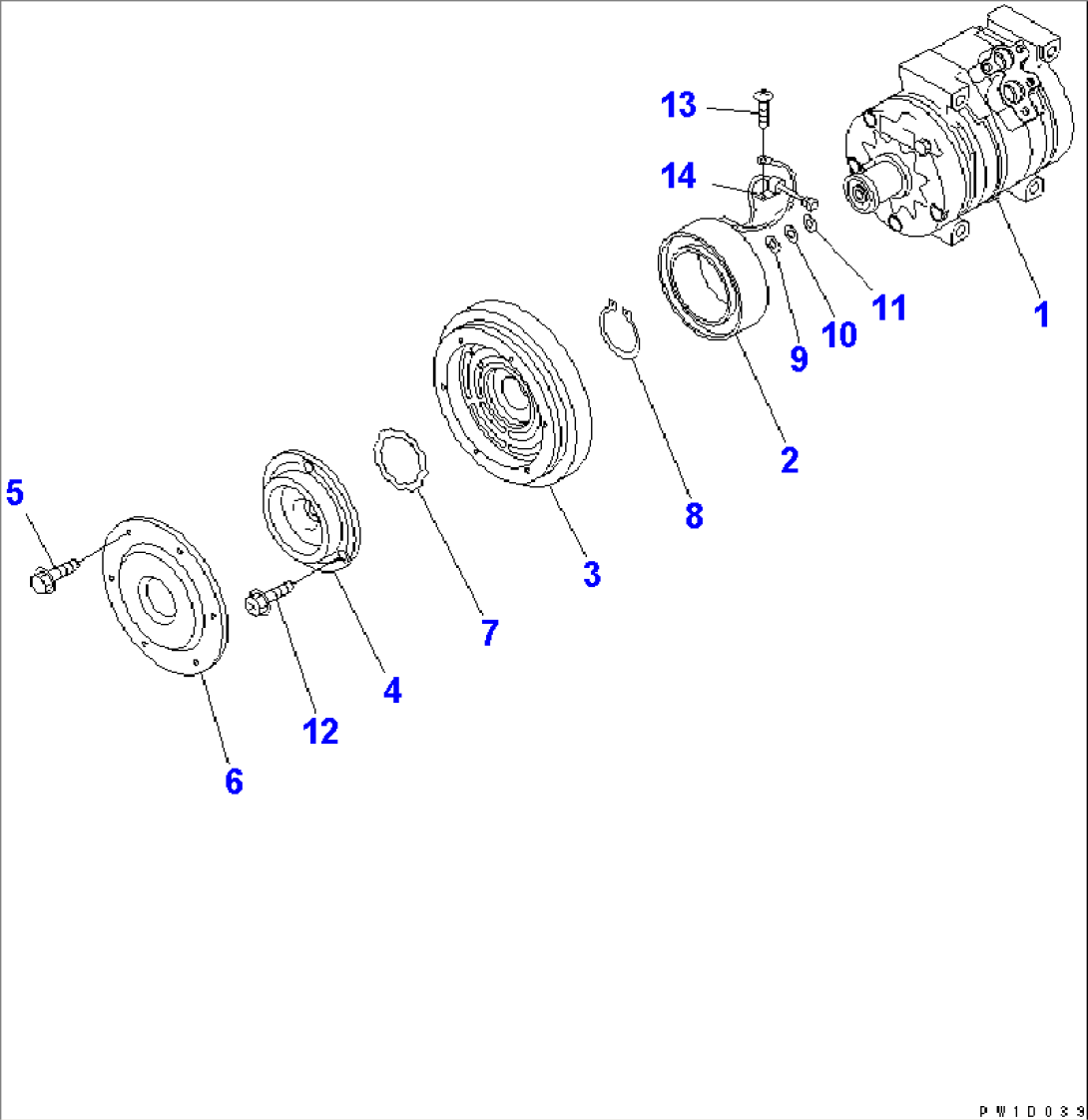

| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-979-6121 | COMPRESSOR ASSEMBLY | K40001- | ||
| 1 | ND447220-4051 | COMPRESSOR ASSEMBLY | K40001- | |
| ND247300-0510 | CLUTCH ASSEMBLY,MAGNET | K40001- | ||
| 2 | ND047310-7240 | STATOR,MAGNET CLUTCH | K40001- | |
| 3 | \6\ | ROTOR,MAGNET CLUTCH | K40001- | |
| 4 | ND047410-1570 | HUB,CLUTCH | K40001- | |
| ND047410-1580 | HUB,CLUTCH | K40001- | ||
| 5 | ND949047-2950 | BOLT,WASHER | K40001- | |
| 6 | ND047372-0660 | COVER,DUST | K40001- | |
| 7 | ND949070-1360 | RING, SNAP | K40001- | |
| ND949070-0640 | RING, SNAP | K40001- | ||
| 8 | ND949070-1390 | RING, SNAP | K40001- | |
| 9 | ND949013-7480 | WASHER, 0.1MM,PLATE | K40001- | |
| 10 | ND949013-7500 | WASHER, 0.3MM,PLATE | K40001- | |
| 11 | ND949013-7510 | WASHER, 0.5MM,PLATE | K40001- | |
| 12 | ND949048-0430 | BOLT,WASHER HEAD | K40001- | |
| 13 | ND91310-05081 | SCREW,WASHER | K40001- | |
| 14 | ND146691-4470 | CLAMP | K40001- |
