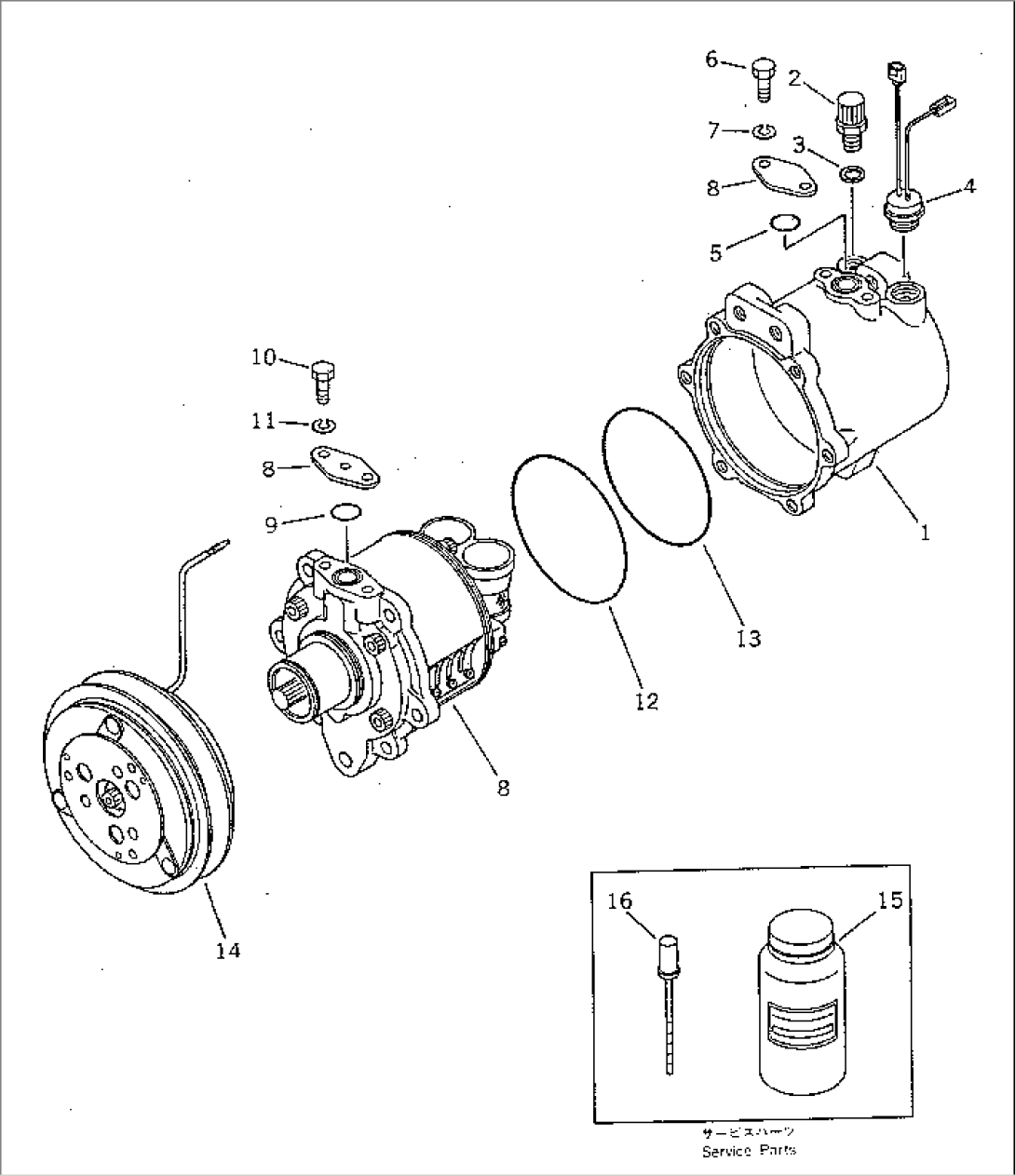

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-07-11712 | COMPRESSOR ASS'Y | 10001-20091 | ||
| 1 | 421-07-11580 | CASE ASS'Y | 10001-20091 | |
| 2 | 421-07-11560 | VALVE,CHARGE | 10001-20091 | |
| 3 | 421-07-11590 | GASKET | 10001-20091 | |
| 4 | 421-07-11750 | SENSOR,THERMO PROTECTOR | 10001-20091 | |
| 5 | 07000-02016 | O-RING | 10001-20091 | |
| 6 | 01010-50616 | BOLT | 10001-20091 | |
| 7 | 01602-20619 | WASHER,SPRING | 10001-20091 | |
| 8 | 421-07-11570 | ROTOR ASS'Y | 10001-20091 | |
| 9 | 07000-02016 | O-RING | 10001-20091 | |
| 10 | 01010-50616 | BOLT | 10001-20091 | |
| 11 | 01602-20619 | WASHER,SPRING | 10001-20091 | |
| 12 | 421-07-11480 | O-RING | 10001-20091 | |
| 13 | 421-07-11490 | O-RING | 10001-20091 | |
| 14 | 421-07-11790 | CLUTCH ASS'Y | 10001-20091 | |
| 15 | 421-07-11370 | OIL,(SERVICE PARTS) | 10001-20091 | |
| 16 | 421-07-11380 | GAUGE,OIL LEVEL (SERVICE PARTS) | 10001-20091 |
