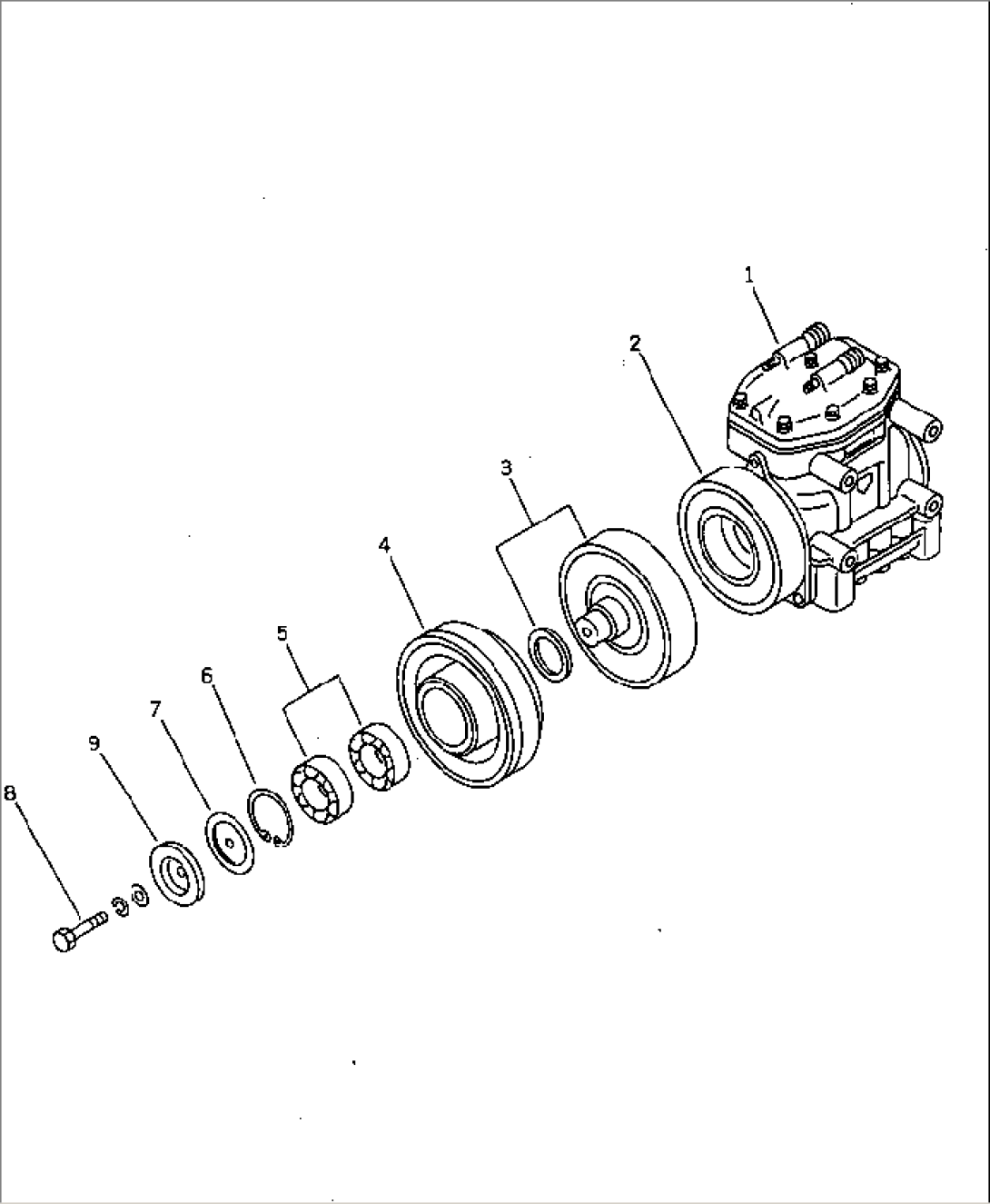

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-911-4501 | COMPRESSOR ASS'Y,PULLEY 130 | 10001-10011 | ||
| 1 | 198-911-4740 | COMPRESSOR | 10001-10011 | |
| 198-911-5920 | CLUTCH ASS'Y | 10001-10011 | ||
| 2 | 145-Z79-6220 | STATOR | 10001-10011 | |
| 3 | 198-911-5930 | ROTOR SUB ASS'Y | 10001-10011 | |
| 4 | 198-911-5940 | PULLEY SUB ASS'Y | 10001-10011 | |
| 5 | 195-Z11-7360 | BEARING | 10001-10011 | |
| 6 | 04065-05520 | RING,SNAP | 10001-10011 | |
| 7 | 145-Z79-6240 | PLATE | 10001-10011 | |
| 8 | 145-Z79-6250 | BOLT | 10001-10011 | |
| 9 | 198-911-5950 | COVER | 10001-10011 |
