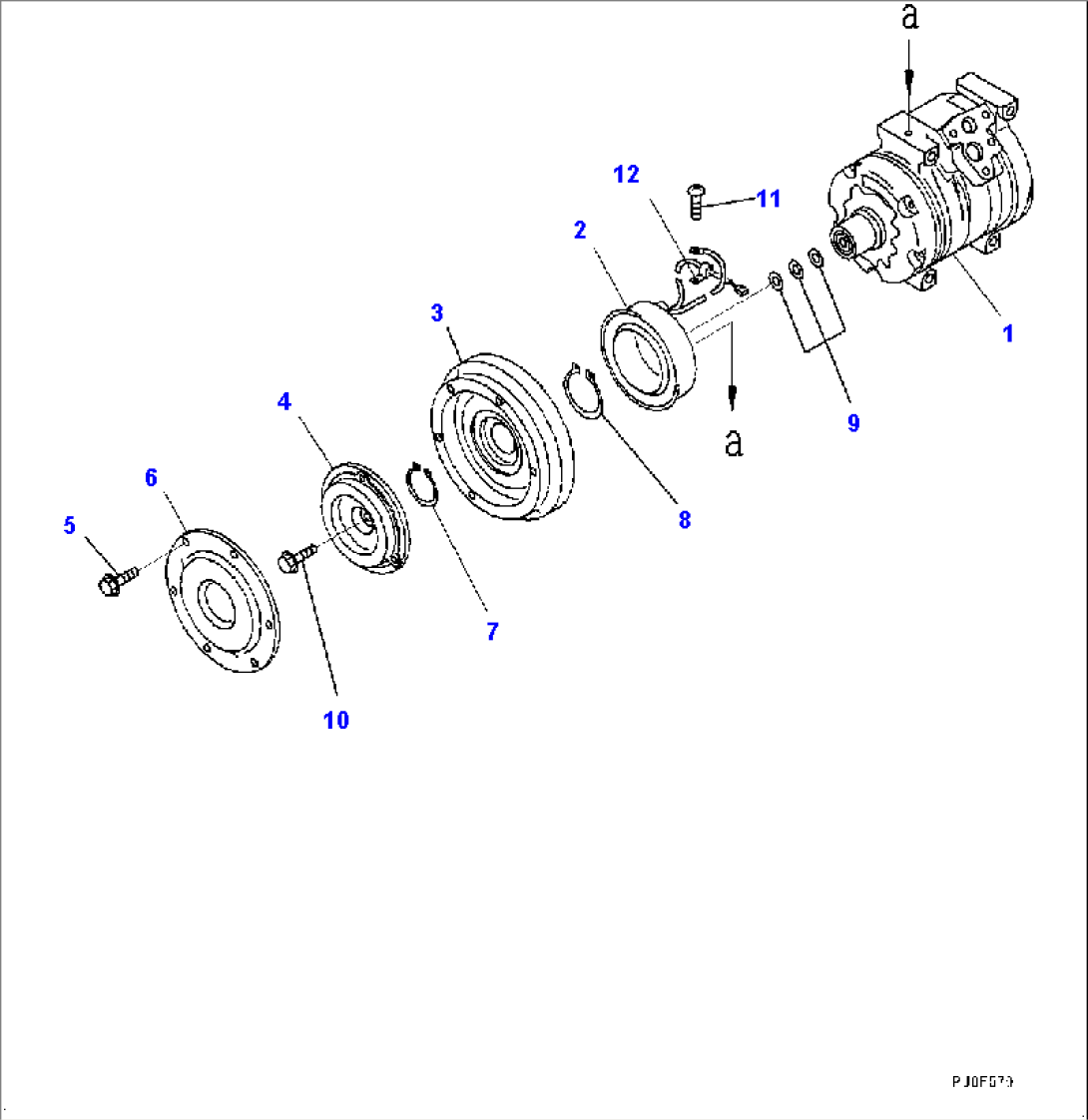

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-911-4810 | Compressor Assembly | 85077-85479 | ||
| 1 | ND447220-4781 | Compressor Assembly | 85077-85479 | |
| 1 | ND247300-5320 | Clutch Assembly, Magnetic | 85077-85479 | |
| 2 | ND147310-0110 | Stator | 85077-85479 | |
| 3 | Rotor | 85077-85479 | ||
| 4 | ND047410-1570 | Hub | 85077-85479 | |
| 4 | ND047410-1580 | Hub | 85077-85479 | |
| 5 | ND949047-2950 | Bolt and Washer | 85077-85479 | |
| 6 | ND047372-0660 | Dust Cover | 85077-85479 | |
| 7 | ND949070-1360 | Ring, Snap | 85077-85479 | |
| 8 | ND949070-0640 | Ring, Snap | 85077-85479 | |
| 9 | ND949013-7480 | Washer, T=0.1mm | 85077-85479 | |
| 9 | ND949013-7500 | Washer, T=0.3mm | 85077-85479 | |
| 9 | ND949013-7510 | Washer, T=0.5mm | 85077-85479 | |
| 10 | ND949048-0430 | Bolt | 85077-85479 | |
| 11 | ND91310-05081 | Screw | 85077-85479 | |
| 12 | ND146691-4470 | Clamp | 85077-85479 |
