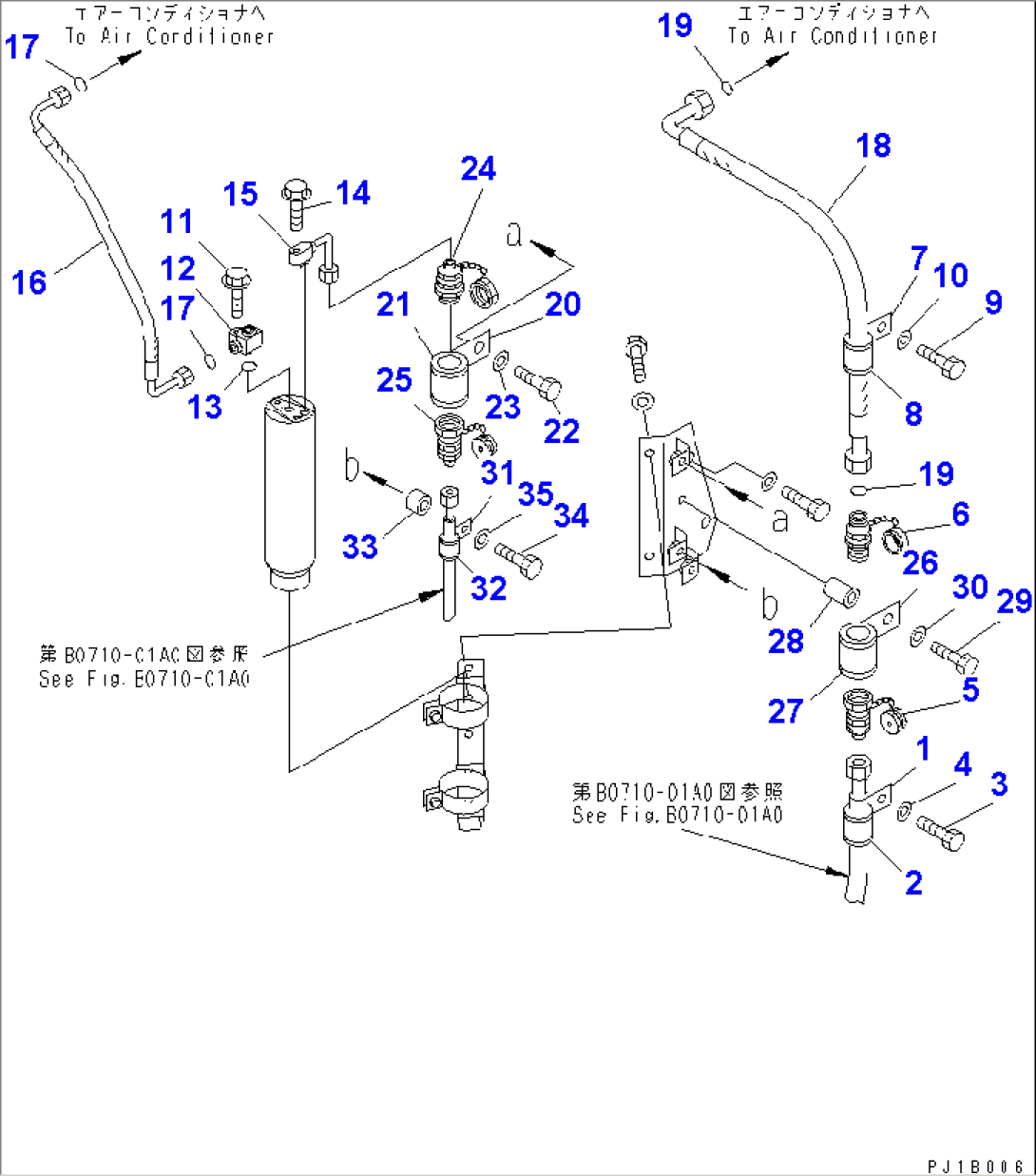

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52512 | CLIP | 65001- | |
| 2 | 07095-20318 | CUSHION | 65001- | |
| 3 | 01010-81225 | BOLT | 65001- | |
| 4 | 01643-31232 | WASHER | 65001- | |
| 5 | 17A-911-1541 | CONNECTOR ASS'Y | 65001- | |
| 6 | 17A-911-1531 | CONNECTOR ASS'Y | 65001- | |
| 7 | 04434-53212 | CLIP | 65001- | |
| 8 | 07095-20523 | CUSHION | 65001- | |
| 9 | 01010-81220 | BOLT | 65001- | |
| 10 | 01643-31232 | WASHER | 65001- | |
| 11 | 01435-00625 | BOLT | 65001- | |
| 12 | 17A-911-1671 | JOINT | 65001- | |
| 13 | 20Y-979-3150 | O-RING | 65001- | |
| 14 | 01435-00625 | BOLT | 65001- | |
| 15 | 17A-911-1511 | TUBE | 65001- | |
| 16 | 17A-911-1471 | HOSE | 65001- | |
| 17 | 20Y-979-3150 | O-RING | 65001- | |
| 18 | 17A-911-1481 | HOSE | 65001- | |
| 19 | 20Y-979-3130 | O-RING | 65001- | |
| 20 | 20Y-62-15951 | CLIP | 65001- | |
| 21 | 07095-00628 | CUSHION | 65001- | |
| 22 | 01010-81225 | BOLT | 65001- | |
| 23 | 01643-31232 | WASHER | 65001- | |
| 24 | 17A-911-1551 | CONNECTOR ASS'Y | 65001- | |
| 25 | 17A-911-1561 | CONNECTOR ASS'Y | 65001- | |
| 26 | 20Y-62-15951 | CLIP | 65001- | |
| 27 | 07095-00628 | CUSHION | 65001- | |
| 28 | 154-979-1480 | COLLAR | 65001- | |
| 29 | 01010-81270 | BOLT | 65001- | |
| 30 | 01643-31232 | WASHER | 65001- | |
| 31 | 04434-51912 | CLIP | 65001- | |
| 32 | 07095-20213 | CUSHION | 65001- | |
| 33 | 20Y-03-11220 | COLLAR | 65001- | |
| 34 | 01010-81260 | BOLT | 65001- | |
| 35 | 01643-31232 | WASHER | 65001- |
