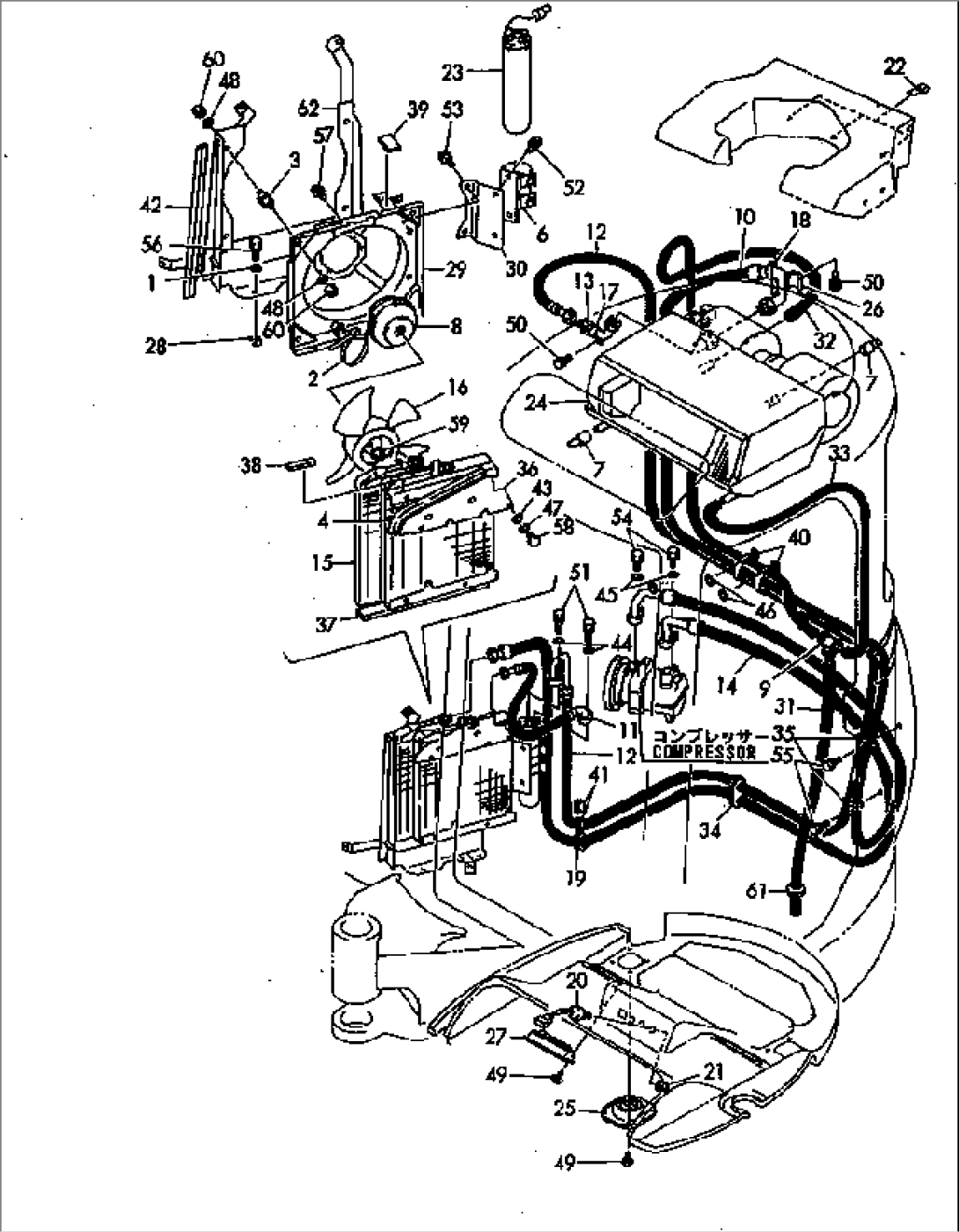

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | YM194145-04810 | WASHER | 10001- | |
| 2 | YM172126-11510 | BAND | 10001- | |
| 3 | YM172122-13310 | CUSHION,RADIATOR | 10001- | |
| 4 | YM172183-13480 | RUBBER,SEAL | 10001- | |
| 5 | YM172164-18000 | COOLER ASS'Y | 10001- | |
| 6 | YM172162-18040 | BRACKET | 10001- | |
| 7 | YM172162-18070 | PLUG,DRAIN | 10001- | |
| 8 | YM172164-18080 | MOTOR | 10001- | |
| 9 | YM172165-18080 | CONNECTOR | 10001- | |
| 10 | YM172164-18700 | HOSE | 10001- | |
| 11 | YM172164-18710 | HOSE | 10001- | |
| 12 | YM172164-18720 | HOSE | 10001- | |
| 13 | YM172164-18730 | TUBE | 10001- | |
| 14 | YM172164-18740 | HOSE | 10001- | |
| 15 | YM172164-18780 | CONDENSER | 10001- | |
| 16 | YM172164-18790 | FAN | 10001- | |
| 17 | YM172164-18800 | CLIP | 10001- | |
| 18 | YM172164-18810 | CLIP | 10001- | |
| 19 | YM172164-18820 | GROMMET | 10001- | |
| 20 | YM1E8080-79430 | SWITCH ASS'Y,CONTROL | 10001- | |
| 21 | YM1E8080-79450 | KNOB,FAN | 10001- | |
| 22 | YM1E8080-79470 | NUT | 10001- | |
| 23 | YM198325-87110 | DRYER | 10001- | |
| 24 | YM198325-87200 | CASE,LOWER | 10001- | |
| 25 | YM197830-87910 | GRILLE | 10001- | |
| 26 | YM197821-88380 | INSULATOR | 10001- | |
| 27 | YM197830-88611 | GRILLE | 10001- | |
| 28 | YM933169-22940 | SPACER,RESERVOIR | 10001- | |
| 29 | YM172164-18400 | COVER ASS'Y | 10001- | |
| 30 | YM172164-18530 | BRACKET ASS'Y | 10001- | |
| 31 | YM172164-18750 | HOSE,DRAIN | 10001- | |
| 32 | YM172164-18760 | HOSE,DRAIN | 10001- | |
| 33 | YM172164-18770 | HOSE,DRAIN | 10001- | |
| 34 | YM172164-18850 | GROMMET | 10001- | |
| 35 | YM172164-18860 | GUIDE,HOSE | 10001- | |
| 36 | YM172164-19190 | PLATE | 10001- | |
| 37 | YM172164-19200 | RUBBER | 10001- | |
| 38 | YM172164-19230 | SEAL | 10001- | |
| 39 | YM172164-19240 | SPONGE | 10001- | |
| 40 | YM1A1380-59480 | CLAMP | 10001- | |
| 41 | YM172137-62970 | GROMMET | 10001- | |
| 42 | YM172164-66640 | RUBBER,SEAL | 10001- | |
| 43 | YM22137-060000 | WASHER | 10001- | |
| 44 | YM22137-060000 | WASHER | 10001- | |
| 45 | YM22137-080000 | WASHER | 10001- | |
| 46 | YM22157-100000 | WASHER | 10001- | |
| 47 | YM22217-060000 | WASHER | 10001- | |
| 48 | YM22217-080000 | WASHER | 10001- | |
| 49 | YM22869-400160 | SCREW | 10001- | |
| 50 | YM26013-060162 | BOLT | 10001- | |
| 51 | YM26013-060252 | BOLT | 10001- | |
| 52 | YM26013-080162 | BOLT | 10001- | |
| 53 | YM26013-080202 | BOLT | 10001- | |
| 54 | YM26013-080252 | BOLT | 10001- | |
| 55 | YM26013-100252 | BOLT | 10001- | |
| 56 | YM26013-100302 | BOLT | 10001- | |
| 57 | YM26023-050122 | SCREW | 10001- | |
| 58 | YM26116-060602 | BOLT | 10001- | |
| 59 | YM26367-050002 | NUT | 10001- | |
| 60 | YM26716-080002 | NUT | 10001- | |
| 61 | YM933166-16110 | GROMMET | 10001- | |
| 62 | YM172164-18100 | MOUNT ASS'Y | 10001- |
