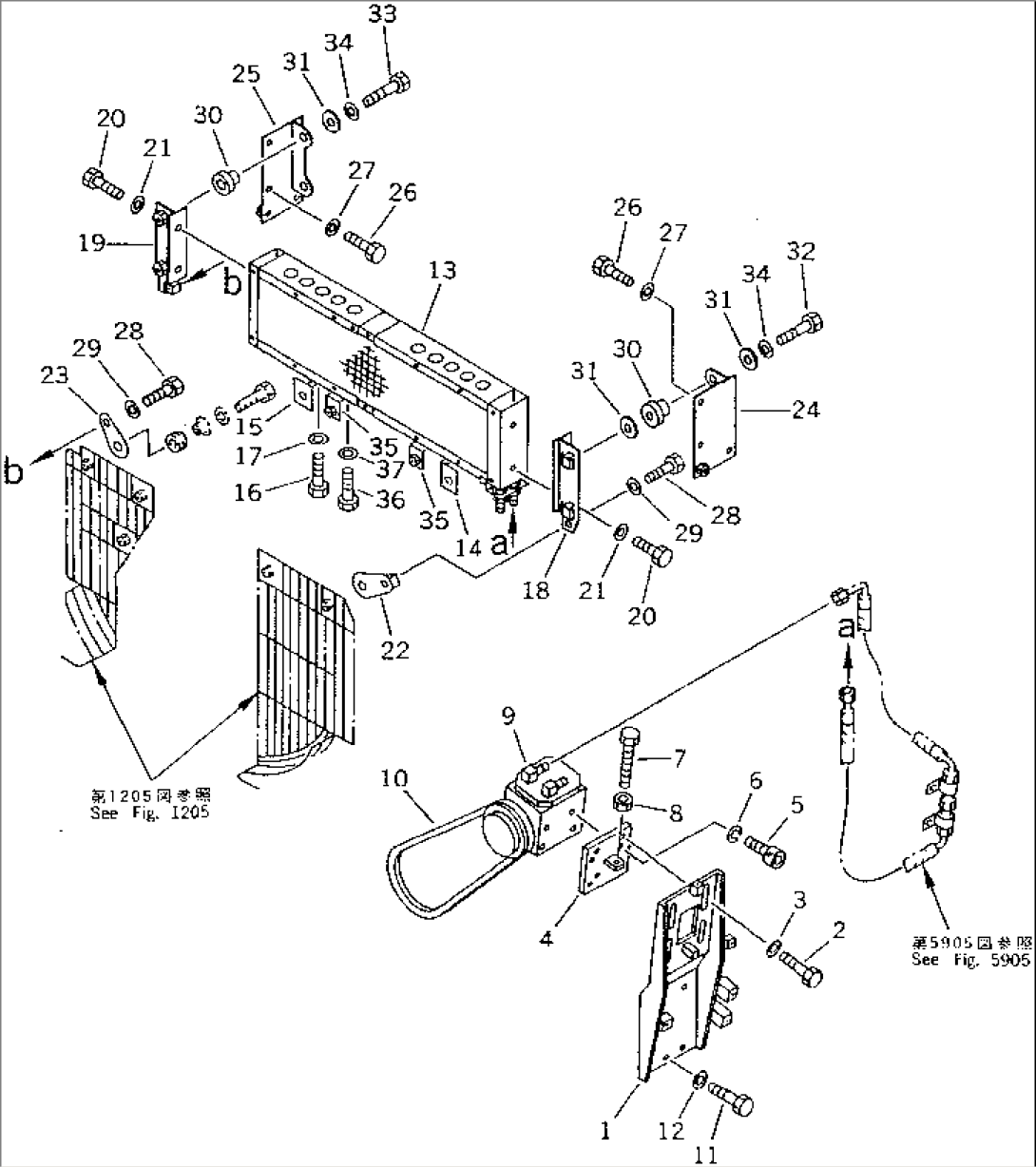

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\15A-Z11-X730) | COMPRESSOR GROUP | 10301-10584 | |
| ==================== | ||||
| 1 | 154-Z11-5310 | BRACKET | 10301-@ | |
| 2 | 01010-51030 | BOLT | 10301-@ | |
| 3 | 203-54-56970 | WASHER | 10301-@ | |
| 4 | 154-Z11-5320 | BRACKET | 10301-10584 | |
| 5 | 01252-40820 | BOLT | 10301-10584 | |
| 6 | 01602-20825 | WASHER,SPRING | 10301-10584 | |
| 7 | 130-Z79-1740 | BOLT | 10301-@ | |
| 8 | 01580-11008 | NUT | 10301-@ | |
| 9 | 195-Z11-5301 | COMPRESSOR ASS'Y | 10301-10584 | |
| 10 | 04120-21735 | V-BELT | 10301-@ | |
| 11 | 01011-51025 | BOLT | 10301-@ | |
| 12 | 01643-31032 | WASHER | 10301-@ | |
| ==================== | ||||
| G-2 | (\8\15A-Z11-X720) | CONDENSER GROUP | 10301-10584 | |
| ==================== | ||||
| 13 | 154-Z11-5101 | CONDENSER ASS'Y | 10301-10584 | |
| 14 | 154-Z11-5740 | BRACKET | 10301-@ | |
| 15 | 154-Z11-5730 | BRACKET | 10301-@ | |
| 16 | 01010-51220 | BOLT | 10301-@ | |
| 17 | 01643-31232 | WASHER | 10301-@ | |
| 18 | 15A-Z11-1120 | BRACKET,L.H. | 10301-@ | |
| 19 | 15A-Z11-1130 | BRACKET,R.H. | 10301-@ | |
| 20 | 01010-51020 | BOLT | 10301-@ | |
| 21 | 01643-31032 | WASHER | 10301-@ | |
| 22 | 154-Z11-5550 | BRACKET | 10301-@ | |
| 23 | 154-Z11-5560 | BRACKET | 10301-@ | |
| 24 | 15A-Z11-1140 | BRACKET,L.H. | 10301-@ | |
| 25 | 15A-Z11-1150 | BRACKET,R.H. | 10301-@ | |
| 26 | 01010-51225 | BOLT | 10301-@ | |
| 27 | 01643-31232 | WASHER | 10301-@ | |
| 28 | 01010-51225 | BOLT | 10301-@ | |
| 29 | 01643-31232 | WASHER | 10301-@ | |
| 30 | 195-03-41380 | CUSHION | 10301-@ | |
| 31 | 178-60-12250 | COLLAR | 10301-@ | |
| 32 | 01010-51060 | BOLT,L.H. | 10301-@ | |
| 33 | 01010-51045 | BOLT,R.H. | 10301-@ | |
| 34 | 01643-31032 | WASHER | 10301-@ | |
| 35 | 15A-Z11-2110 | BRACKET | 10301-@ | |
| 36 | 01010-51225 | BOLT | 10301-@ | |
| 37 | 01643-31232 | WASHER | 10301-@ | |
| ==================== |
