| Item | Part No. | Part Name | Qty | Serial No. |

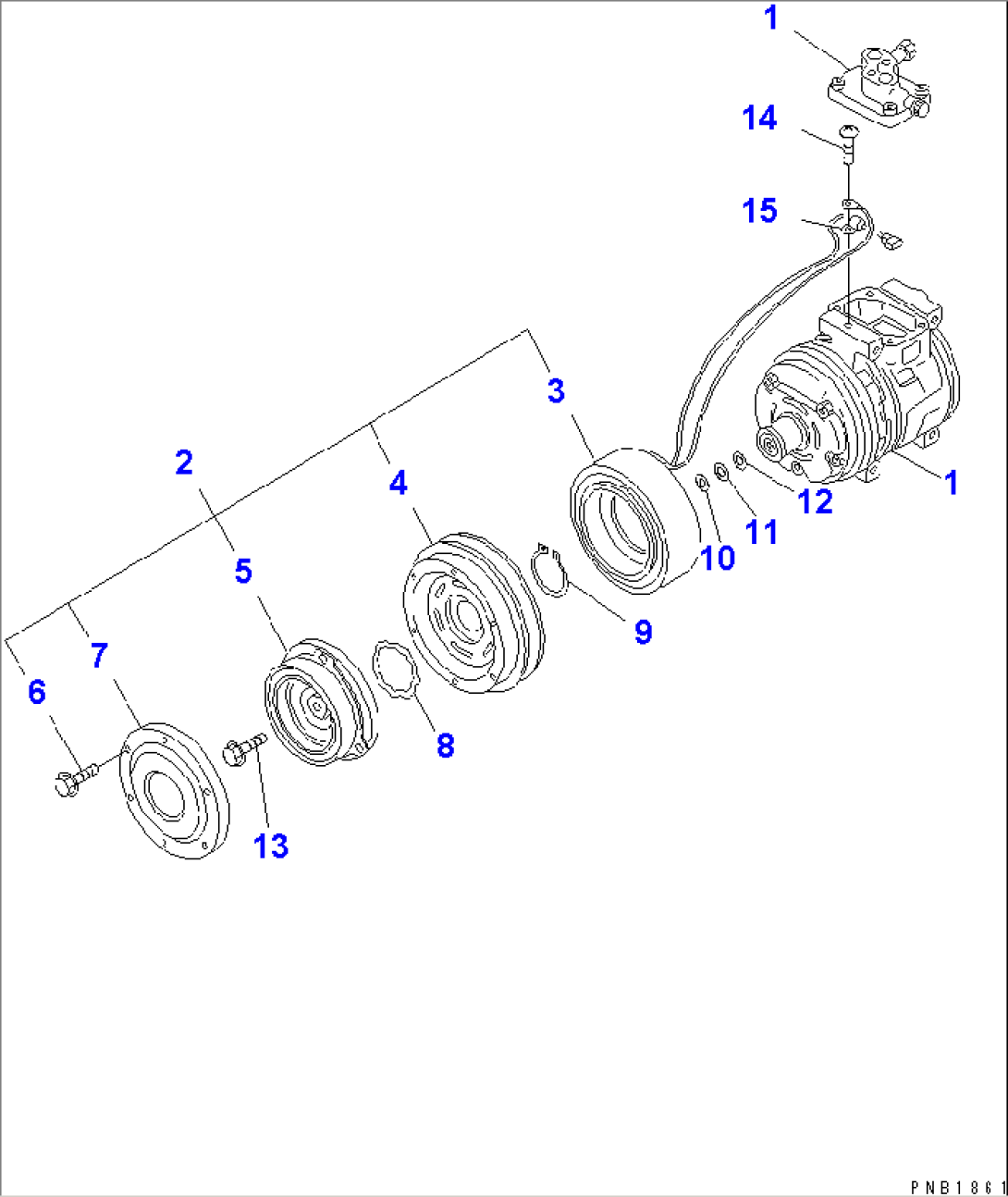

| 14X-Z11-8580 | COMPRESSOR ASS'Y | 10111- | ||
| 1 | ND447200-1741 | COMPRESSOR ASS'Y | 10111- | |
| 2 | ND247300-5350 | CLUTCH ASS'Y | 10111- | |
| 3 | ND047310-7240 | STATOR | 10111- | |
| 4 | ND047350-7130 | ROTOR | 10111- | |
| 5 | ND447410-0010 | HUB | 10111- | |
| 6 | ND949047-2950 | BOLT | 10111- | |
| 7 | ND047372-0660 | COVER | 10111- | |
| 8 | ND949070-1360 | RING, SNAP,SNAP | 10111- | |
| 9 | ND949070-0640 | RING, SNAP,SNAP | 10111- | |
| 10 | ND949013-7480 | WASHER, 0.1MM | 10111- | |
| 11 | ND949013-7500 | WASHER, 0.3MM | 10111- | |
| 12 | ND949013-7510 | WASHER, 0.5MM | 10111- | |
| 13 | ND949048-0430 | BOLT | 10111- | |
| 14 | ND913100-5081 | SCREW | 10111- | |
| 15 | ND146691-4470 | CLAMP | 10111- |
