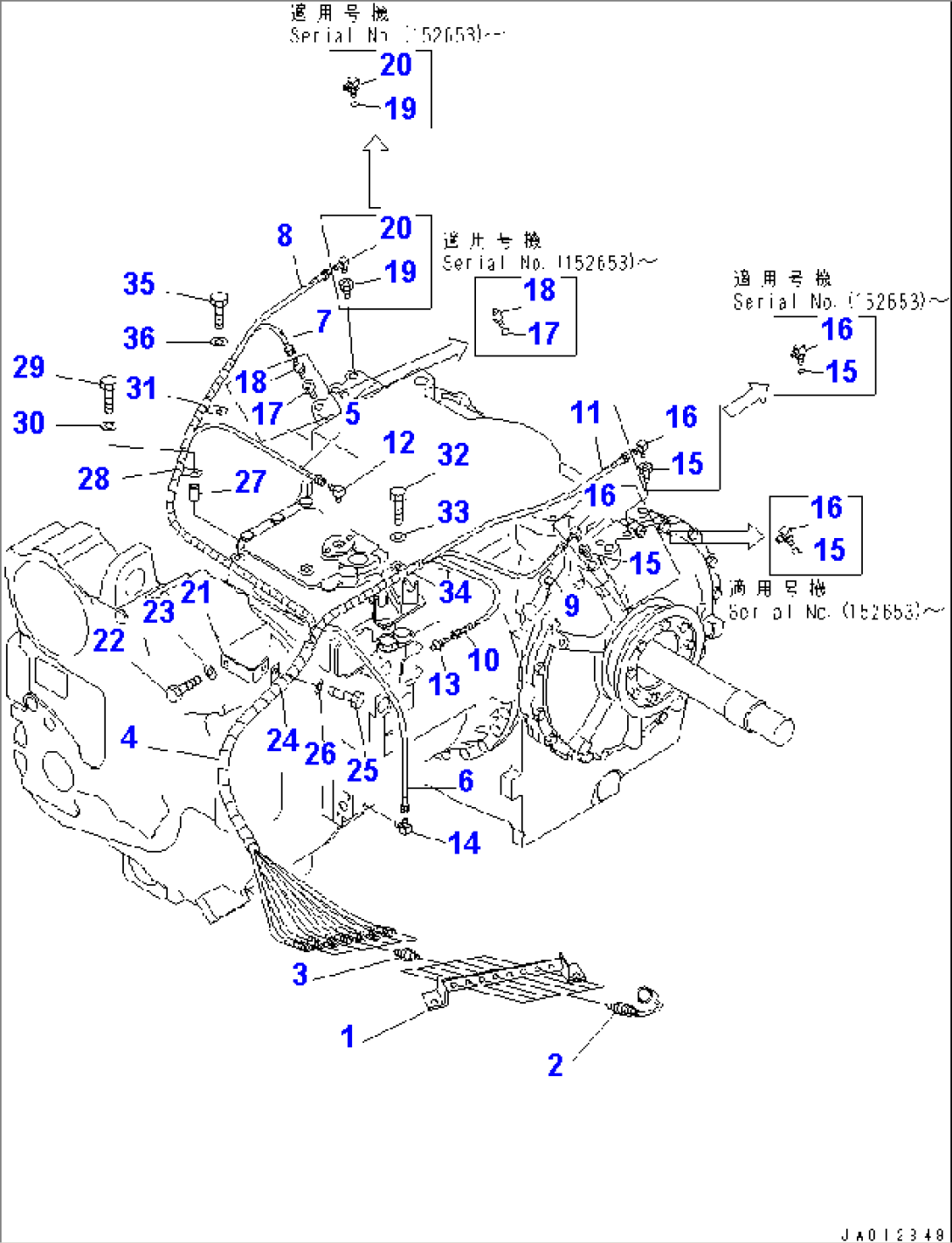

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 1 | 17A-49-17111 | BLOCK | 65275- | |
| 2 | 195-49-36120 | NIPPLE | 65275- | |
| 3 | 203-62-21740 | NIPPLE | 65275- | |
| 4 | 17A-49-11811 | HOSE ASS'Y | 65275- | |
| 5 | 17A-49-17510 | HOSE, 1300MM | 65275- | |
| 6 | 17A-49-17521 | HOSE | 65275- | |
| 7 | 17A-49-17571 | HOSE | 65275- | |
| 8 | 17A-49-17141 | HOSE | 65275- | |
| 9 | 17A-49-17710 | HOSE | 65275- | |
| 10 | 17A-49-17151 | HOSE, 1450MM | 65275- | |
| 11 | 17A-49-17721 | HOSE, 1600MM | 65275- | |
| 12 | 202-62-21430 | ELBOW | 65275- | |
| 13 | 203-62-21740 | NIPPLE | 65275- | |
| 14 | 202-62-21430 | ELBOW | 65275- | |
| 15 | 17M-22-47890 | O-RING | (152653)- | |
| 15 | 21T-38-11390 | BUSHING | 65275-(152652) | |
| 16 | 17A-22-41380 | JOINT | (152653)- | |
| 16 | 202-62-21430 | ELBOW | 65275-(152652) | |
| 17 | 17M-22-47890 | O-RING | (152653)- | |
| 17 | 21T-38-11390 | BUSHING | 65275-(152652) | |
| 18 | 17A-22-41370 | NIPPLE | (152653)- | |
| 18 | 203-62-21740 | NIPPLE | 65275-(152652) | |
| 19 | 17M-22-47890 | O-RING | (152653)- | |
| 19 | 21T-38-11390 | BUSHING | 65275-(152652) | |
| 20 | 17A-22-41380 | JOINT | (152653)- | |
| 20 | 202-62-21430 | ELBOW | 65275-(152652) | |
| 21 | 17A-49-11991 | BRACKET | 65275- | |
| 22 | 01010-81245 | BOLT | 65275- | |
| 23 | 01643-31232 | WASHER | 65275- | |
| 24 | 08036-93014 | CLIP | 65275- | |
| 25 | 01010-81020 | BOLT | 65275- | |
| 26 | 01643-31032 | WASHER | 65275- | |
| 27 | 195-01-16140 | SPACER | 65275- | |
| 28 | 08036-01814 | CLIP | 65275- | |
| 29 | 01010-81270 | BOLT | 65275- | |
| 30 | 01643-31232 | WASHER | 65275- | |
| 31 | 08036-01814 | CLIP | 65275- | |
| 32 | 01010-81016 | BOLT | 65275- | |
| 33 | 01643-31032 | WASHER | 65275- | |
| 34 | 08036-01814 | CLIP | 65275- | |
| 35 | 01010-81285 | BOLT | 65275- | |
| 36 | 01643-31232 | WASHER | 65275- |
