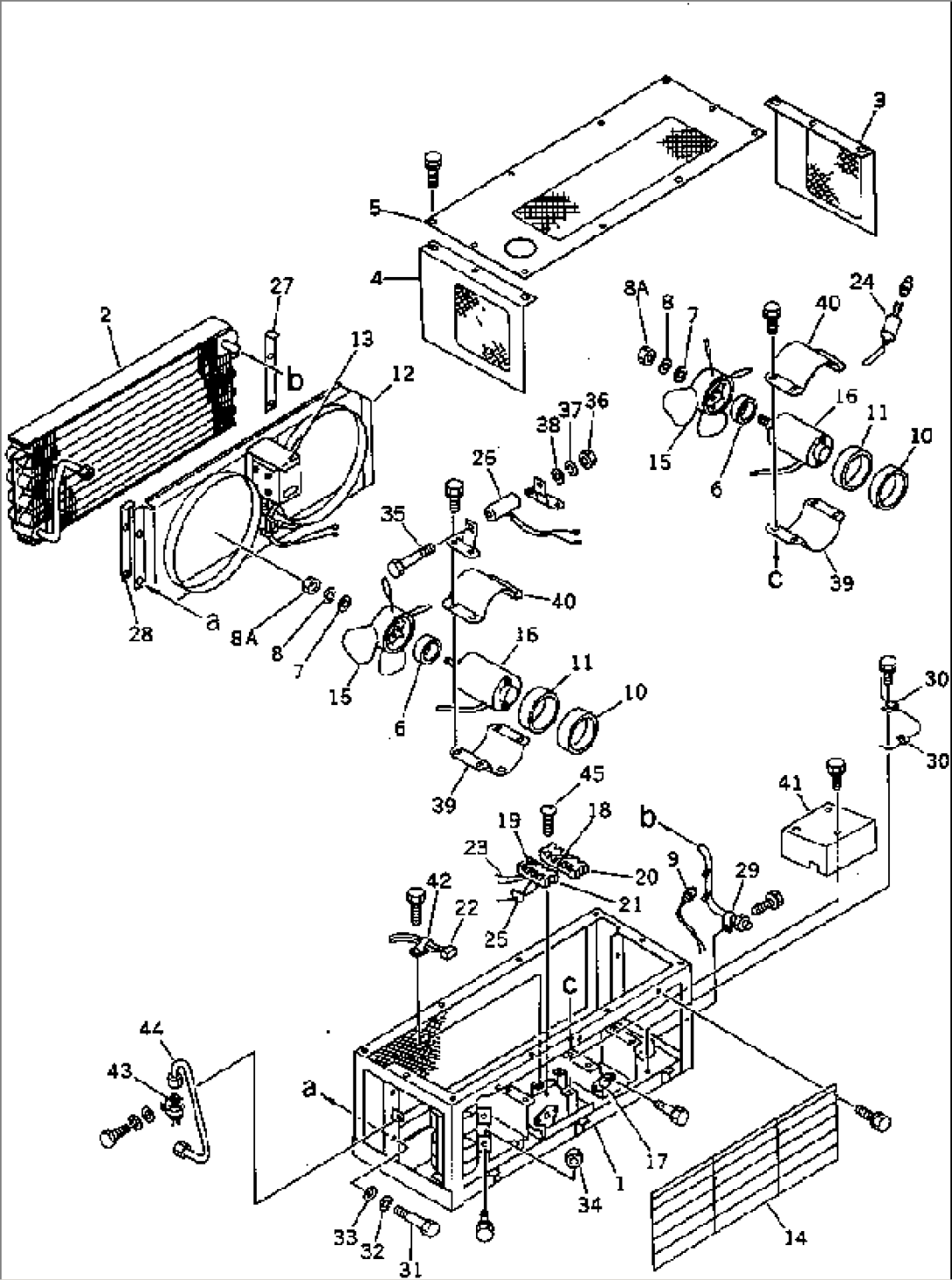

| Item | Part No. | Part Name | Qty | Serial No. |
| 145-Z79-5301 | CONDENSER ASS'Y | 10001-10011 | ||
| 1 | 145-Z79-5311 | CASE | 10001-10011 | |
| 2 | 145-Z79-5320 | CORE,CONDENSER | 10001-10011 | |
| 3 | 145-Z79-4720 | COVER SUB ASS'Y | 10001-@ | |
| 4 | 145-Z79-4730 | COVER SUB ASS'Y | 10001-@ | |
| 5 | 145-Z79-4740 | COVER SUB ASS'Y | 10001-@ | |
| 6 | 145-Z79-6620 | WASHER | 10001-@ | |
| 7 | 145-Z79-6630 | WASHER | 10001-10011 | |
| 8 | 145-Z79-6640 | WASHER | 10001-10011 | |
| 8A | 01580-10504 | NUT | 10001-10011 | |
| 9 | 145-Z79-5331 | SWITCH,PRESSURE | 10001-10011 | |
| 10 | 145-Z79-4790 | PACKING | 10001-10011 | |
| 11 | 145-Z79-4810 | PACKING | 10001-@ | |
| 145-Z79-5340 | SHROUD,FAN | 10001-10011 | ||
| 12 | 145-Z79-4820 | SHROUD,FAN | 10001-10011 | |
| 13 | 145-Z79-5350 | SWITCH,PRESSURE | 10001-10011 | |
| 14 | 145-Z79-4850 | COVER SUB ASS'Y | 10001-@ | |
| 15 | 145-Z79-5370 | FAN ASS'Y | 10001-@ | |
| 16 | 145-Z79-5380 | MOTOR ASS'Y | 10001-@ | |
| 17 | 145-Z79-5390 | THERMOSTAT ASS'Y | 10001-10011 | |
| 18 | 145-Z79-4910 | CONNECTOR ASS'Y | 10001-@ | |
| 19 | 145-Z79-4920 | CONNECTOR ASS'Y | 10001-@ | |
| 20 | 145-Z79-4930 | ORNAMENT | 10001-@ | |
| 21 | 145-Z79-4940 | ORNAMENT | 10001-@ | |
| 22 | 145-Z79-4951 | WIRE ASS'Y | 10001-10011 | |
| 23 | 145-Z79-4960 | WIRE ASS'Y | 10001-@ | |
| 24 | 145-Z79-4970 | WIRE ASS'Y | 10001-10011 | |
| 25 | 145-Z79-4250 | GROMMET | 10001-10011 | |
| 26 | 145-Z79-4830 | RESISTOR | 10001-@ | |
| 27 | 145-Z79-4760 | SPACER | 10001-10011 | |
| 28 | 145-Z79-4750 | SPACER | 10001-10011 | |
| 29 | 145-Z79-6890 | CLIP | 10001-10011 | |
| 30 | 145-Z79-4770 | CLAMP | 10001-10011 | |
| 31 | 01010-80865 | BOLT | 10001-10011 | |
| 32 | 01602-20825 | WASHER,SPRING | 10001-10011 | |
| 33 | 01640-20816 | WASHER | 10001-10011 | |
| 34 | 01580-10605 | NUT | 10001-10011 | |
| 35 | 145-Z79-4840 | BOLT | 10001-10011 | |
| 36 | 01580-10504 | NUT | 10001-10011 | |
| 37 | 01601-20513 | WASHER,SPRING | 10001-10011 | |
| 38 | 01641-20508 | WASHER | 10001-10011 | |
| 39 | 145-Z79-4870 | PLATE | 10001-10011 | |
| 40 | 145-Z79-4880 | PLATE | 10001-10011 | |
| 41 | 145-Z79-4780 | COVER SUB ASS'Y | 10001-10011 | |
| 42 | 145-Z79-4890 | CLAMP | 10001-10011 | |
| 43 | 198-911-5580 | SWITCH,PRESSURE | 10001-10011 | |
| 44 | 195-979-6760 | TUBE | 10001-10011 | |
| 45 | 01220-30412 | SCREW | 10001-10011 |
