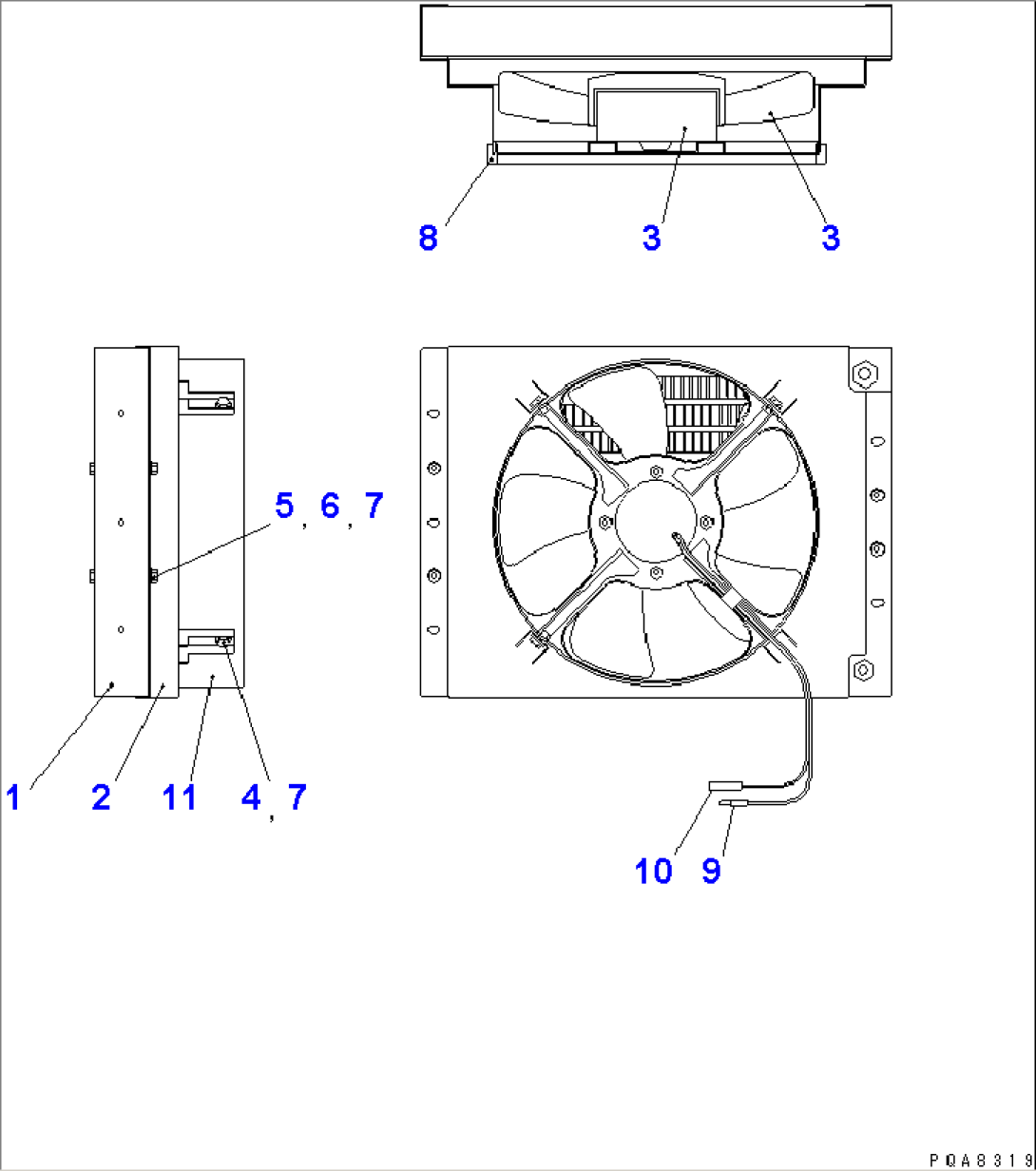

| Item | Part No. | Part Name | Qty | Serial No. |
| 114-X11-3630 | CONDENSER | 62001-62453 | ||
| 1 | TW7004-0060 | CONDENSER | 62001-62453 | |
| 2 | TW7024-0100 | SHROUD | 62001-62453 | |
| 3 | TW7040-0610 | FAN MOTOR ASS'Y | 62001-62453 | |
| 4 | TW8020-0616 | BOLT | 62001-62453 | |
| 5 | TW8000-0660 | BOLT | 62001-62453 | |
| 6 | TW8050-0650 | NUT | 62001-62453 | |
| 7 | TW8070-0616 | WASHER | 62001-62453 | |
| 8 | TW7036-0500 | SEAL | 62001-62453 | |
| 9 | 08021-00400 | CONNECTOR | 62001-62453 | |
| 10 | 08022-04001 | CONNECTOR | 62001-62453 | |
| 11 | 114-X11-3780 | SHROUD | 62001-62453 |
