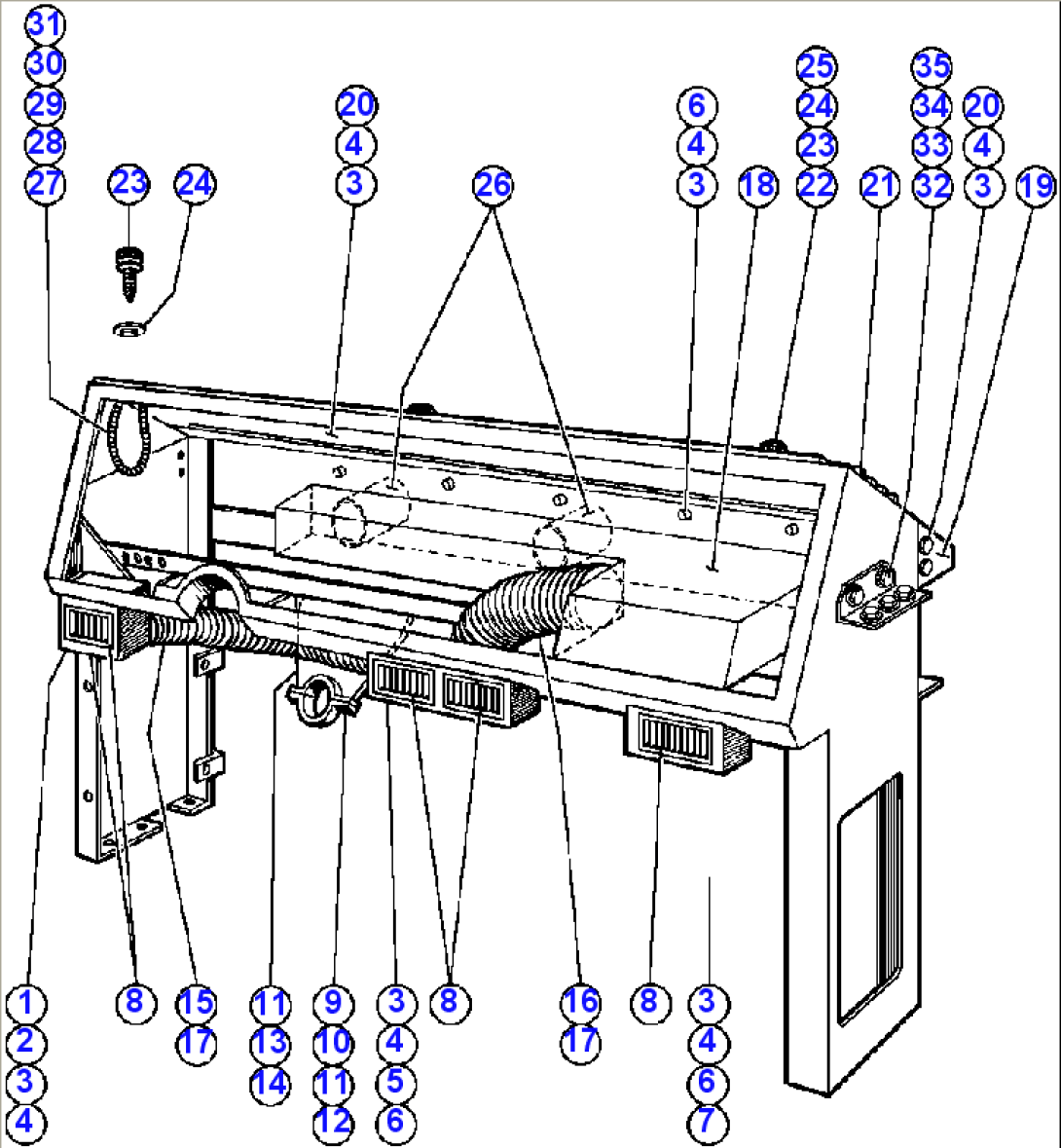

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VS6086 | PLENUM - L.H. | | |
| 2 | VZ0368 | MACHINE SCREW - 1/4" - 20NC X 3/4" | | |
| 3 | SD4235 | LOCKWASHER - 1/4" | | |
| 4 | TR1307 | FLAT WASHER - 1/4" | | |
| 5 | VS6097 | PLENUM, CENTER | | |
| 6 | VZ0367 | MACHINE SCREW - 1/4" - 20NC X 1/2" | | |
| 7 | VS6092 | PLENUM, R.H. | | |
| 8 | VS6257 | LOUVER | | |
| 9 | VS6187 | COLLAR | | |
| 10 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | | |
| 11 | C0312 | LOCKWASHER - 3/8" | | |
| 12 | TC1233 | NUT - 3/8" - 16NC | | |
| 13 | VS6184 | BRACKET, STEERING COLUMN | | |
| 14 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | | |
| 15 | VS6007 | DUCT, AIR | | |
| 16 | VS6008 | DUCT, AIR | | |
| 17 | DF5391 | CLAMP - 2 1/2" | | |
| 18 | VS6220 | DUCT, HEATER/AIR CONDITIONER | | |
| 19 | VS6209 | DUCT, DEFROSTER | | |
| 20 | SH7591 | CAPSCREW - 1/4" - 20NC X 1/2" | | |
| 21 | C1231 | COUPLING, PIPE | | |
| 22 | VS6172 | COVER | | |
| 23 | VS7483 | CAPSCREW - 3/8" | | |
| 24 | VS7484 | WASHER, ALUMINUM | | |
| 25 | VS6006 | SPEED-NUT, U-CLIP | | |
| 26 | VS6108 | HOSE, DEFROST | | |
| 27 | VE0406 | CHAIN, STEEL | | |
| 28 | VE0408 | SLEEVE, VINYL | | |
| 29 | VH4569 | MACHINE SCREW | | |
| 30 | SC4163 | LOCKWASHER - #8 | | |
| 31 | VN9725 | NUT - #8 - 32NC | | |
| 32 | TZ8001 | BRACKET, CONSOLE (1) | | |
| 33 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" (1) | | |
| 34 | TC1231 | LOCKWASHER - 3/8" (1) | | |
| 35 | WA4726 | FLAT WASHER - 3/8" (1) | | |
| NS|36 | | NOTE: (1) NOT INCLUDED IN ASSEMBLY. | | |
