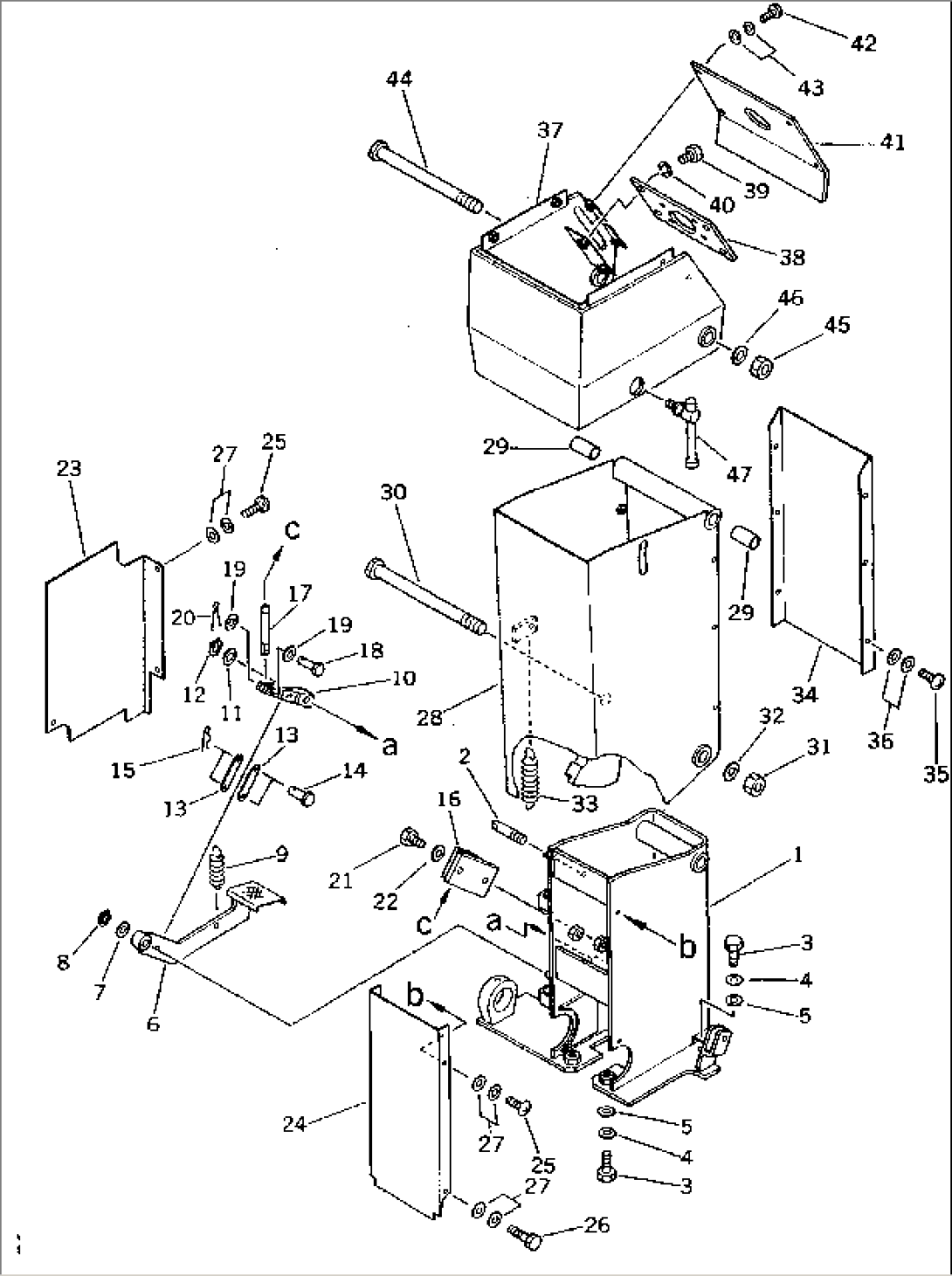

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-43-18410 | BRACKET | 1001-1999 | |
| 2 | 238-43-38280 | BOLT | 1001-@ | |
| 3 | 01010-51235 | BOLT | 1001-1999 | |
| 4 | 01643-31232 | WASHER | 1001-1999 | |
| 5 | 01640-21223 | WASHER | 1001-1999 | |
| 6 | 238-43-38220 | PEDAL | 1001-@ | |
| 7 | 01643-31232 | WASHER | 1001-@ | |
| 8 | 04064-01210 | RING,SNAP | 1001-@ | |
| 9 | 234-835-2230 | SPRING | 1001-@ | |
| 10 | 238-43-38210 | LEVER | 1001-@ | |
| 11 | 01643-31232 | WASHER | 1001-@ | |
| 12 | 04064-01210 | RING,SNAP | 1001-@ | |
| 13 | 234-43-38770 | PLATE | 1001-@ | |
| 14 | 04205-10822 | PIN | 1001-@ | |
| 15 | 234-43-18710 | PIN,SNAP | 1001-@ | |
| 16 | 238-43-38180 | BLOCK | 1001-@ | |
| 17 | 238-43-38190 | PIN | 1001-@ | |
| 18 | 04205-10628 | PIN | 1001-@ | |
| 19 | 01643-30623 | WASHER | 1001-1999 | |
| 20 | 233-43-27750 | PIN,COTTER | 1001-@ | |
| 21 | 01010-51030 | BOLT | 1001-@ | |
| 22 | 01643-31032 | WASHER | 1001-@ | |
| 23 | 238-43-38250 | COVER | 1001-1999 | |
| 24 | 238-43-38240 | COVER | 1001-1999 | |
| 25 | 01220-40616 | SCREW | 1001-@ | |
| 26 | 01010-50616 | BOLT | 1001-@ | |
| 27 | 01643-30623 | WASHER | 1001-1999 | |
| 28 | 235-43-28210 | BOX | 1001-1999 | |
| 29 | 234-885-1610 | BUSHING | 1001-1999 | |
| 30 | 238-43-38160 | SHAFT | 1001-@ | |
| 31 | 233-43-27860 | NUT | 1001-@ | |
| 32 | 01643-31845 | WASHER | 1001-@ | |
| 33 | 230-43-13120 | SPRING | 1001-@ | |
| 34 | 238-43-38260 | COVER | 1001-1999 | |
| 35 | 01220-40616 | SCREW | 1001-@ | |
| 36 | 01643-30623 | WASHER | 1001-1999 | |
| 37 | 235-43-28111 | BOX | 1398-1999 | |
| 235-43-28110 | BOX | 1001-1397 | ||
| 38 | 23D-43-18551 | PLATE | 1001-1999 | |
| 39 | 01010-51025 | BOLT | 1001-@ | |
| 40 | 01602-21030 | WASHER,SPRING | 1001-1999 | |
| 41 | 23D-43-12220 | COVER | 1416-1999 | |
| 235-43-28120 | COVER | 1001-1415 | ||
| 42 | 01220-40620 | SCREW | 1001-@ | |
| 43 | 01643-30623 | WASHER | 1001-1999 | |
| 44 | 238-43-38170 | SHAFT | 1001-1999 | |
| 45 | 233-43-27860 | NUT | 1001-1999 | |
| 46 | 01643-31845 | WASHER | 1001-1999 | |
| 47 | 238-43-38230 | HANDLE | 1001-@ |
