| Item | Part No. | Part Name | Qty | Serial No. |

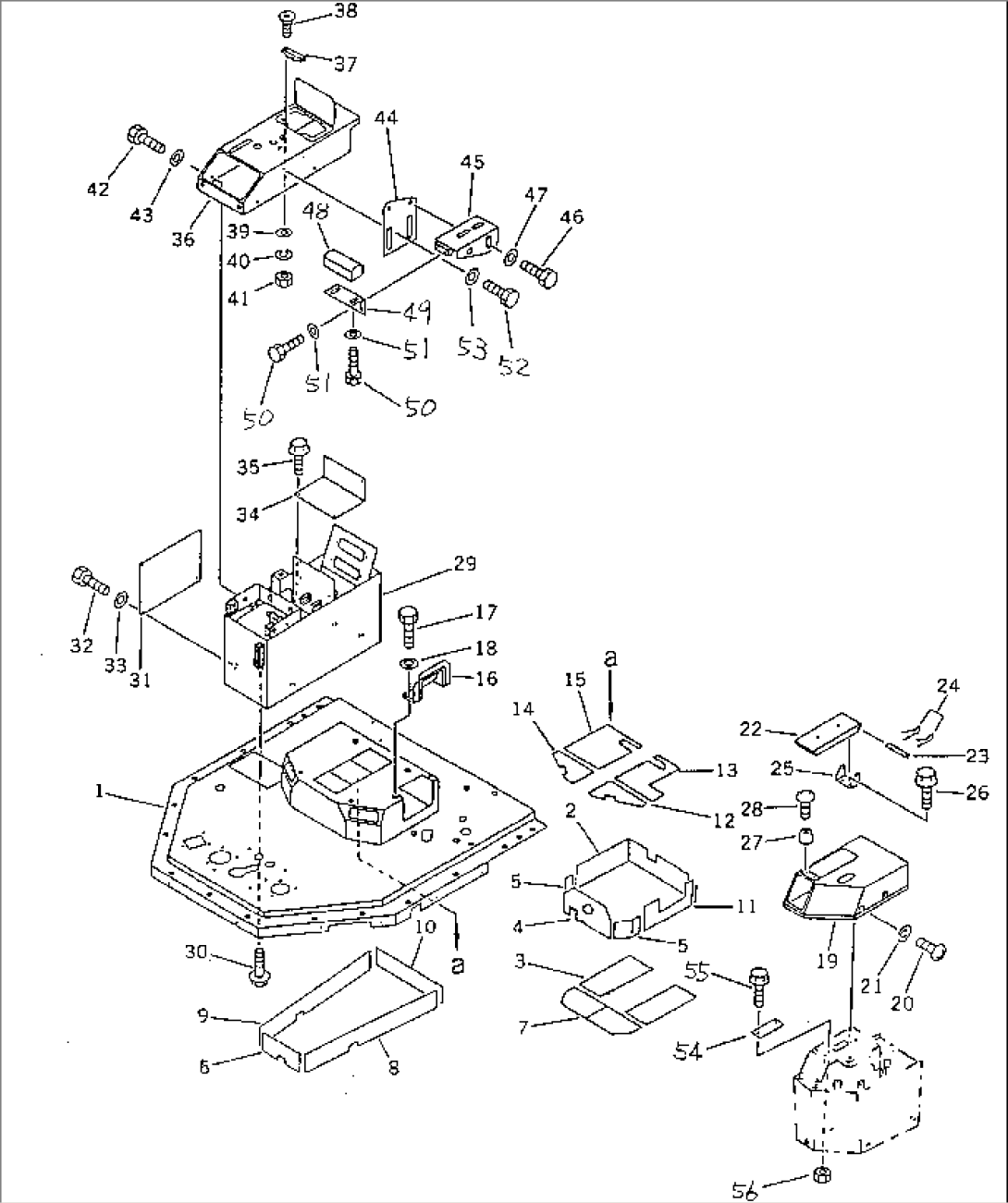

| 428-54-14110 | FRAME ASS'Y | 10001- | ||
| 1 | 428-54-14120 | FRAME,FLOOR | 10001- | |
| 2 | 421-54-18450 | INSULATOR | 10001- | |
| 3 | 428-54-14210 | INSULATOR | 10001- | |
| 4 | 428-54-14220 | INSULATOR | 10001- | |
| 5 | 421-54-18430 | INSULATOR | 10001- | |
| 6 | 421-54-18330 | INSULATOR | 10001- | |
| 7 | 421-54-18460 | INSULATOR | 10001- | |
| 8 | 421-54-18340 | INSULATOR | 10001- | |
| 9 | 421-54-18350 | INSULATOR | 10001- | |
| 10 | 421-54-18360 | INSULATOR | 10001- | |
| 11 | 421-54-18440 | INSULATOR | 10001- | |
| 12 | 421-54-18370 | INSULATOR | 10001- | |
| 13 | 428-54-14230 | INSULATOR | 10001- | |
| 14 | 421-54-18380 | INSULATOR | 10001- | |
| 15 | 428-54-14240 | INSULATOR | 10001- | |
| 16 | 425-54-12570 | COVER | 10001- | |
| 17 | 01010-50825 | BOLT | 10001- | |
| 18 | 01643-30823 | WASHER | 10001- | |
| 19 | 425-54-12671 | COVER | 10001- | |
| 20 | 01220-70616 | SCREW | 10001- | |
| 21 | 01642-40608 | WASHER | 10001- | |
| 22 | 425-54-12510 | BRACKET | 10001- | |
| 23 | 425-54-12530 | SHAFT | 10001- | |
| 24 | 04050-13018 | PIN,COTTER | 10001- | |
| 25 | 425-54-12520 | PLATE | 10001- | |
| 26 | 01435-01020 | BOLT | 10001- | |
| 27 | 425-54-12590 | STOPPER | 10001- | |
| 28 | 01220-30420 | SCREW | 10001- | |
| 29 | 428-54-14130 | BRACKET | 10001- | |
| 30 | 01435-01225 | BOLT | 10001- | |
| 31 | 425-54-12722 | PLATE | 10001- | |
| 32 | 01010-50816 | BOLT | 10001- | |
| 33 | 01643-30823 | WASHER | 10001- | |
| 34 | 424-54-14191 | PLATE | 10001- | |
| 35 | 01435-00610 | BOLT | 10001- | |
| 36 | 428-54-14140 | COVER | 10001- | |
| 37 | 09452-06506 | CATCHER | 10001- | |
| 38 | 01224-40412 | SCREW | 10001- | |
| 39 | 01641-20405 | WASHER | 10001- | |
| 40 | 01601-20410 | WASHER,SPRING | 10001- | |
| 41 | 01580-10403 | NUT | 10001- | |
| 42 | 01010-50818 | BOLT | 10001- | |
| 43 | 01643-30823 | WASHER | 10001- | |
| 44 | 425-54-12692 | PLATE | 10001- | |
| 45 | 425-54-12684 | BRACKET | 10001- | |
| 46 | 01010-51225 | BOLT | 10001- | |
| 47 | 01643-31232 | WASHER | 10001- | |
| 48 | 428-54-14150 | REST,ARM | 10001- | |
| 49 | 421-54-18560 | PLATE | 10001- | |
| 50 | 01010-50820 | BOLT | 10001- | |
| 51 | 01643-30823 | WASHER | 10001- | |
| 52 | 01010-51225 | BOLT | 10001- | |
| 53 | 01643-31232 | WASHER | 10001- | |
| 54 | 424-54-12820 | PLATE | 10001- | |
| 55 | 01435-01020 | BOLT | 10001- | |
| 56 | 01584-01008 | NUT | 10001- |
