| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-S58-2210 | PLATE | 54104- | |
| 2 | 01435-00616 | BOLT | 54104- | |
| 3 | 416-942-2180 | HOSE | 54104- | |
| 4 | 07281-01029 | CLAMP | 54104- | |
| 5 | 416-942-2190 | DUCT | 54104- | |
| 6 | 01435-00612 | BOLT | 54104- | |
| 7 | 01584-00605 | NUT | 54104- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa120l 3 s/n 54001 up (for north america)
- Operatior's compartment and control system
- Console box (l.h.) (duct hose)(#54104 )
Поиск по каталогу

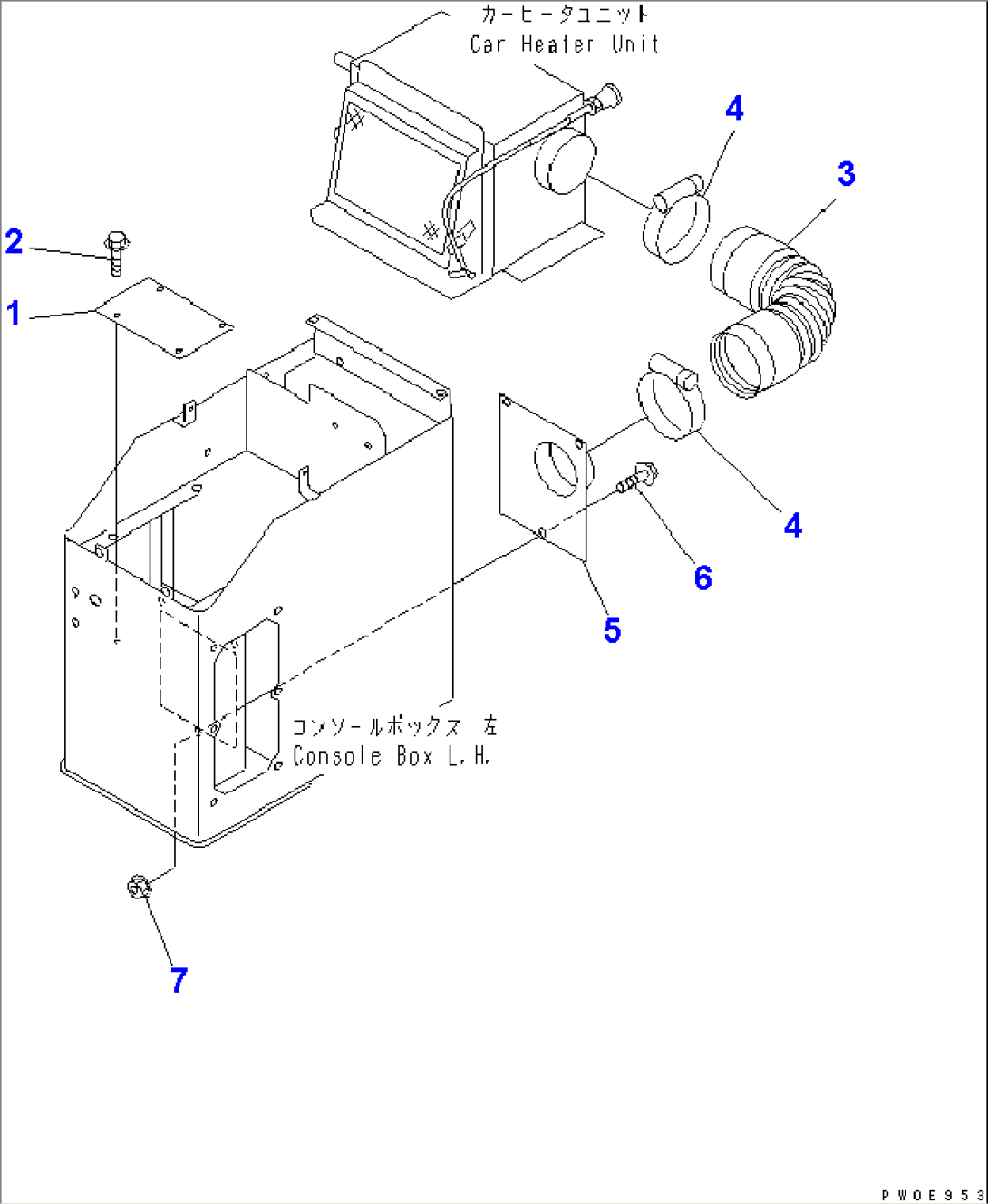

CONSOLE BOX (L.H.) (DUCT HOSE)(#54104-)
