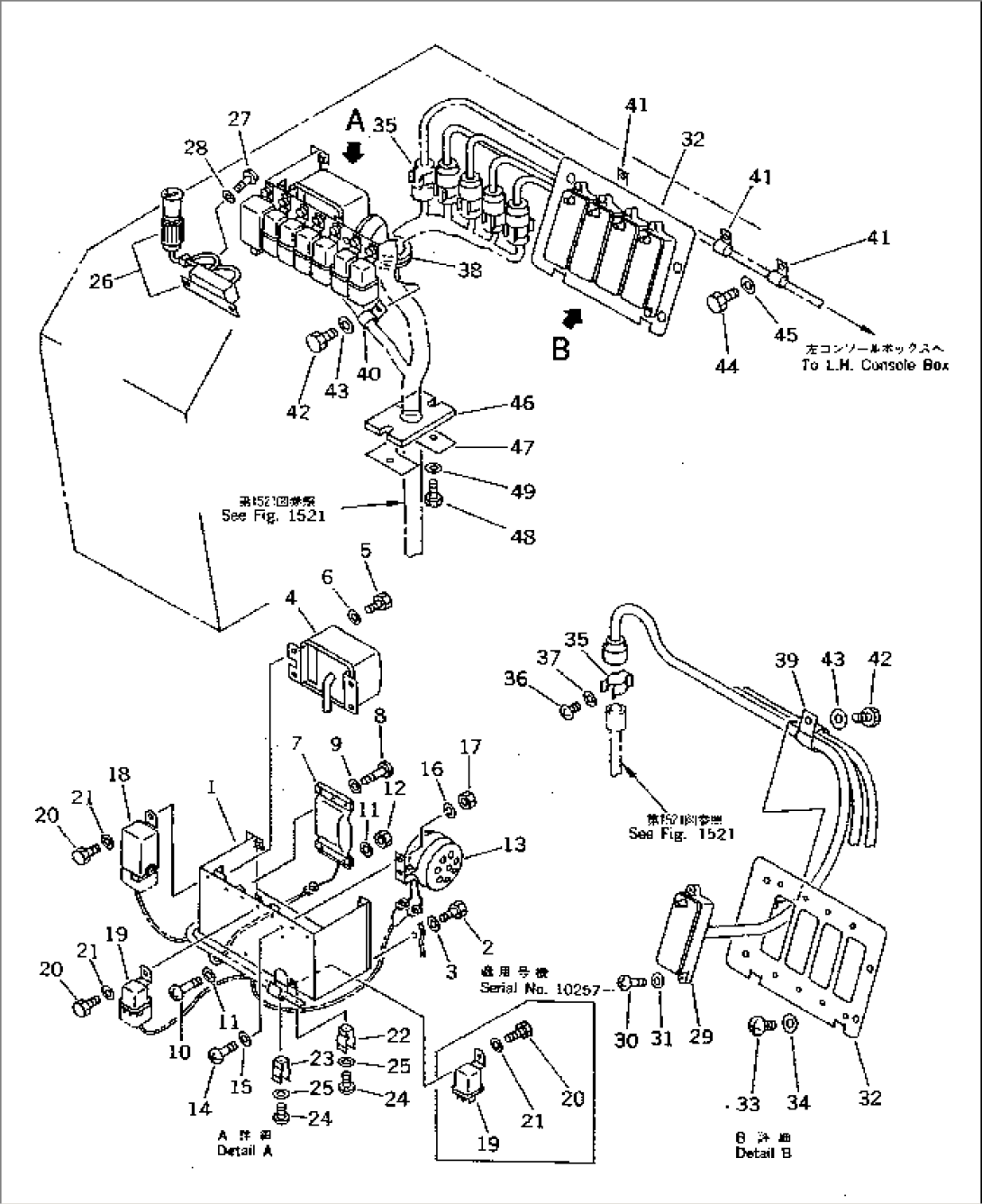

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-11730 | BOX | 10257-10534 | |
| \0\421-06-11731 | BOX | 10001-10256 | ||
| 2 | 01010-50616 | BOLT | 10001-@ | |
| 3 | 01643-30623 | WASHER | 10001-@ | |
| 4 | 7861-72-3000 | CONTROLLER ASS'Y | 10244-@ | |
| \0\7861-01-3000 | CONTROLLER ASS'Y | 10001-10243 | ||
| 5 | 01010-50616 | BOLT | 10001-@ | |
| 6 | 01643-30623 | WASHER | 10001-@ | |
| 7 | 423-06-11211 | TIMER,BI-METAL | 10001-@ | |
| (\2\423-06-11210) | TIMER,BI-METAL | (10001-.) | ||
| 8 | 01235-40410 | SCREW | 10001-@ | |
| 9 | 01641-20405 | WASHER | 10001-@ | |
| 10 | 01235-40420 | SCREW | 10001-@ | |
| 11 | 01641-20405 | WASHER | 10001-@ | |
| 12 | 01580-10403 | NUT | 10001-@ | |
| 13 | 08166-02480 | BUZZER | 10001-10534 | |
| 14 | 01220-40616 | SCREW | 10001-10534 | |
| 15 | 01640-20610 | WASHER | 10001-10534 | |
| 16 | 01602-20619 | WASHER,SPRING | 10001-10534 | |
| 17 | 01580-10605 | NUT | 10001-10534 | |
| 18 | 22W-06-13251 | FLASHER | 10001-@ | |
| 19 | 287-06-16410 | RELAY | 10257-@ | |
| 287-06-16410 | RELAY | 10001-10256 | ||
| 20 | 01010-50610 | BOLT | 10257-@ | |
| 01010-50610 | BOLT | 10001-10256 | ||
| 21 | 01643-30623 | WASHER | 10257-@ | |
| 01643-30623 | WASHER | 10001-10256 | ||
| 22 | 421-06-12910 | CLIP | 10001-@ | |
| 23 | 238-06-17130 | CLIP | 10001-@ | |
| 24 | 01220-40608 | SCREW | 10001-@ | |
| 25 | 01641-20608 | WASHER | 10001-@ | |
| 26 | 195-822-6151 | LIGHTER,(WITH CAB) | 10001-@ | |
| 27 | 01220-40410 | SCREW,(WITH CAB) | 10001-@ | |
| 28 | 01641-20405 | WASHER,(WITH CAB) | 10001-@ | |
| 29 | 421-06-11431 | BREAKER | 10001-@ | |
| 30 | 01220-40625 | SCREW | 10001-@ | |
| 31 | 01641-20608 | WASHER | 10001-@ | |
| 32 | 425-06-11140 | BRACKET | 10001-@ | |
| 33 | 01220-40812 | SCREW | 10001-@ | |
| 34 | 01641-30812 | WASHER | 10001-@ | |
| 35 | 421-06-12610 | CLIP | 10001-@ | |
| 36 | 01220-40608 | SCREW | 10001-@ | |
| 37 | 01641-20608 | WASHER | 10001-@ | |
| 38 | 08037-05016 | GROMMET | 10001-@ | |
| 39 | 08036-03014 | CLIP | 10001-@ | |
| 40 | 08036-01814 | CLIP | 10001-@ | |
| 41 | 08036-10814 | CLIP | 10001-@ | |
| 42 | 01010-51016 | BOLT | 10001-@ | |
| 43 | 01643-31032 | WASHER | 10001-@ | |
| 44 | 01010-51020 | BOLT | 10001-@ | |
| 45 | 01643-31032 | WASHER | 10001-@ | |
| 46 | 419-06-12230 | SEAT | 10001-@ | |
| 47 | 419-06-12220 | PLATE | 10001-@ | |
| 48 | 01010-50612 | BOLT | 10001-@ | |
| 49 | 01643-30623 | WASHER | 10001-@ |
