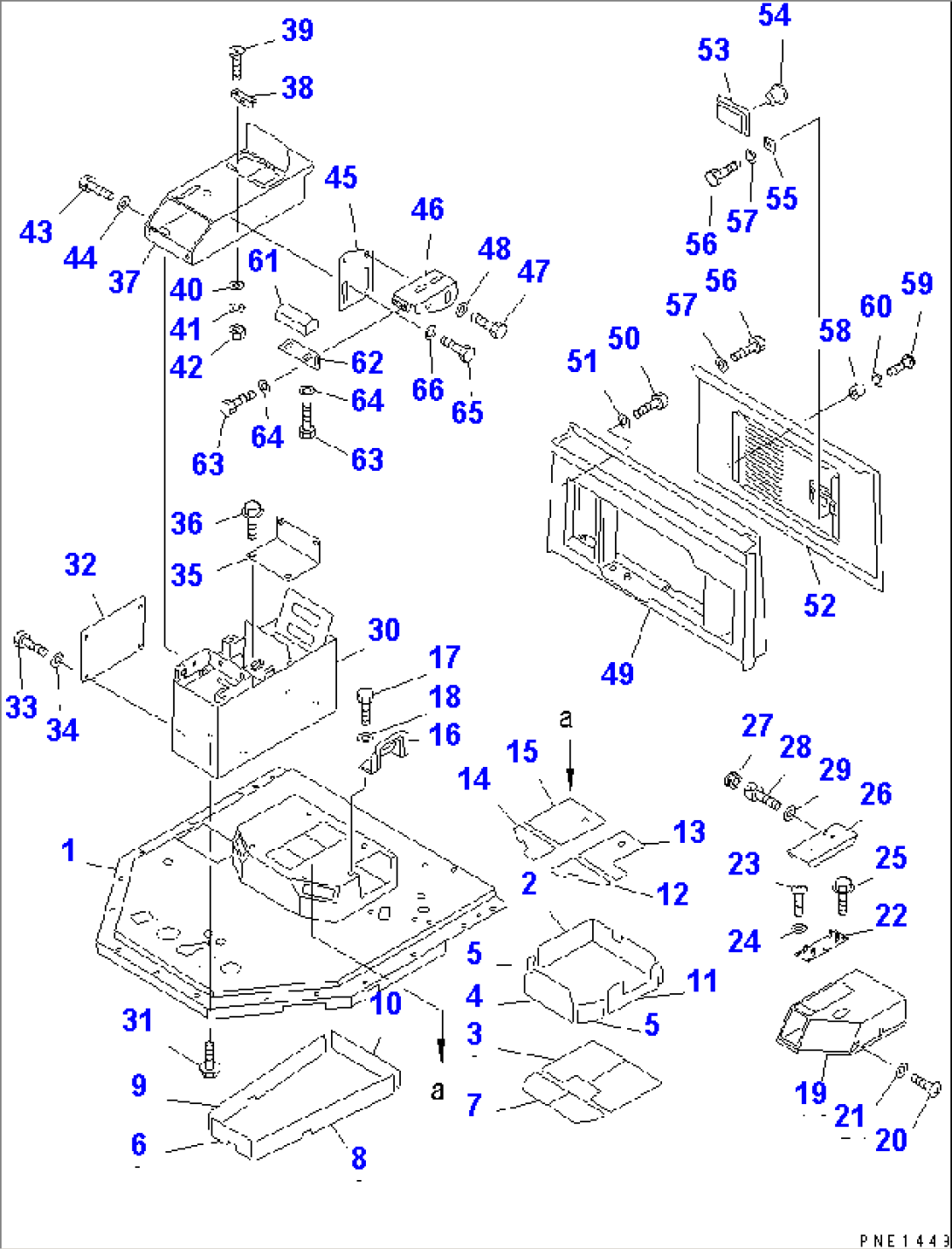

| Item | Part No. | Part Name | Qty | Serial No. |
| (427-54-13810) | FRAME ASS'Y | 10001- | ||
| 1 | 427-54-13634 | FRAME,FLOOR | 10031- | |
| 1 | 427-54-13632 | FRAME,FLOOR | 10001-10030 | |
| 2 | 421-54-18450 | INSULATOR | 10001- | |
| 3 | 421-54-18470 | INSULATOR | 10001- | |
| 4 | 421-54-18420 | INSULATOR | 10001- | |
| 5 | 421-54-18430 | INSULATOR | 10001- | |
| 6 | 421-54-18330 | INSULATOR | 10001- | |
| 7 | 421-54-18460 | INSULATOR | 10001- | |
| 8 | 421-54-18340 | INSULATOR | 10001- | |
| 9 | 421-54-18350 | INSULATOR | 10001- | |
| 10 | 421-54-18360 | INSULATOR | 10001- | |
| 11 | 421-54-18440 | INSULATOR | 10001- | |
| 12 | 421-54-18370 | INSULATOR | 10001- | |
| 13 | 421-54-18390 | INSULATOR | 10001- | |
| 14 | 421-54-18380 | INSULATOR | 10001- | |
| 15 | 421-54-18410 | INSULATOR | 10001- | |
| 16 | 425-54-12570 | COVER | 10001- | |
| 17 | 01010-80825 | BOLT | 10001- | |
| 18 | 01643-30823 | WASHER | 10001- | |
| 19 | 425-54-12671 | COVER | 10001- | |
| 20 | 01220-70616 | SCREW | 10001- | |
| 21 | 01642-40608 | WASHER | 10001- | |
| 22 | 427-54-12911 | BRACKET | 10001- | |
| 23 | 01220-40416 | SCREW | 10001- | |
| 24 | 01642-20405 | WASHER | 10001- | |
| 25 | 01435-01020 | BOLT | 10001- | |
| 26 | 427-54-12890 | BRACKET | 10001- | |
| 27 | 09415-01008 | CAP | 10001- | |
| 28 | 01252-40860 | BOLT | 10001- | |
| 29 | 01643-50823 | WASHER | 10001- | |
| 30 | 425-54-12713 | BOX | 10001- | |
| 31 | 01435-01225 | BOLT | 10001- | |
| 32 | 425-54-12722 | PLATE | 10001- | |
| 33 | 01010-80816 | BOLT | 10001- | |
| 34 | 01643-30823 | WASHER | 10001- | |
| 35 | 424-54-14191 | PLATE | 10001- | |
| 36 | 01435-00610 | BOLT | 10001- | |
| 37 | 425-54-12843 | COVER | 10001- | |
| 38 | 09452-06506 | CATCHER | 10001- | |
| 39 | 01224-40412 | SCREW | 10001- | |
| 40 | 01641-20405 | WASHER | 10001- | |
| 41 | 01601-20410 | WASHER,SPRING | 10001- | |
| 42 | 01580-60403 | NUT | 10001- | |
| 43 | 01435-00816 | BOLT | 10088- | |
| 43 | 01010-50818 | BOLT | 10001-10087 | |
| 44 | 01643-30823 | WASHER | 10001-10087 | |
| 45 | 425-54-12692 | PLATE | 10001- | |
| 46 | 425-54-12684 | BRACKET | 10001- | |
| 47 | 01010-81225 | BOLT | 10001- | |
| 48 | 01643-31232 | WASHER | 10001- | |
| 49 | 428-54-12122 | BOX,REAR | 10102- | |
| 49 | \3\428-54-12121 | BOX,REAR | 10001-10101 | |
| (428-54-12122,428-963-1253) | ||||
| 50 | 01010-81225 | BOLT | 10001- | |
| 51 | 01643-31232 | WASHER | 10001- | |
| 52 | 428-54-12131 | COVER | 10001- | |
| 53 | 421-54-11362 | LOCK ASS'Y | 10001- | |
| 54 | 421-54-11381 | LOCK | 10001- | |
| 55 | 421-54-11980 | PLATE | 10001- | |
| 56 | 01010-81225 | BOLT | 10001- | |
| 57 | 01643-31232 | WASHER | 10001- | |
| 58 | 418-60-15150 | STOPPER | 10001- | |
| 59 | 01220-40630 | SCREW | 10001- | |
| 60 | 01602-20619 | WASHER,SPRING | 10001- | |
| 61 | 421-54-18550 | REST,ARM | 10001- | |
| 62 | 421-54-18560 | PLATE | 10001- | |
| 63 | 01010-80820 | BOLT | 10001- | |
| 64 | 01643-30823 | WASHER | 10001- | |
| 65 | 01010-81225 | BOLT | 10001- | |
| 66 | 01643-31232 | WASHER | 10001- |
