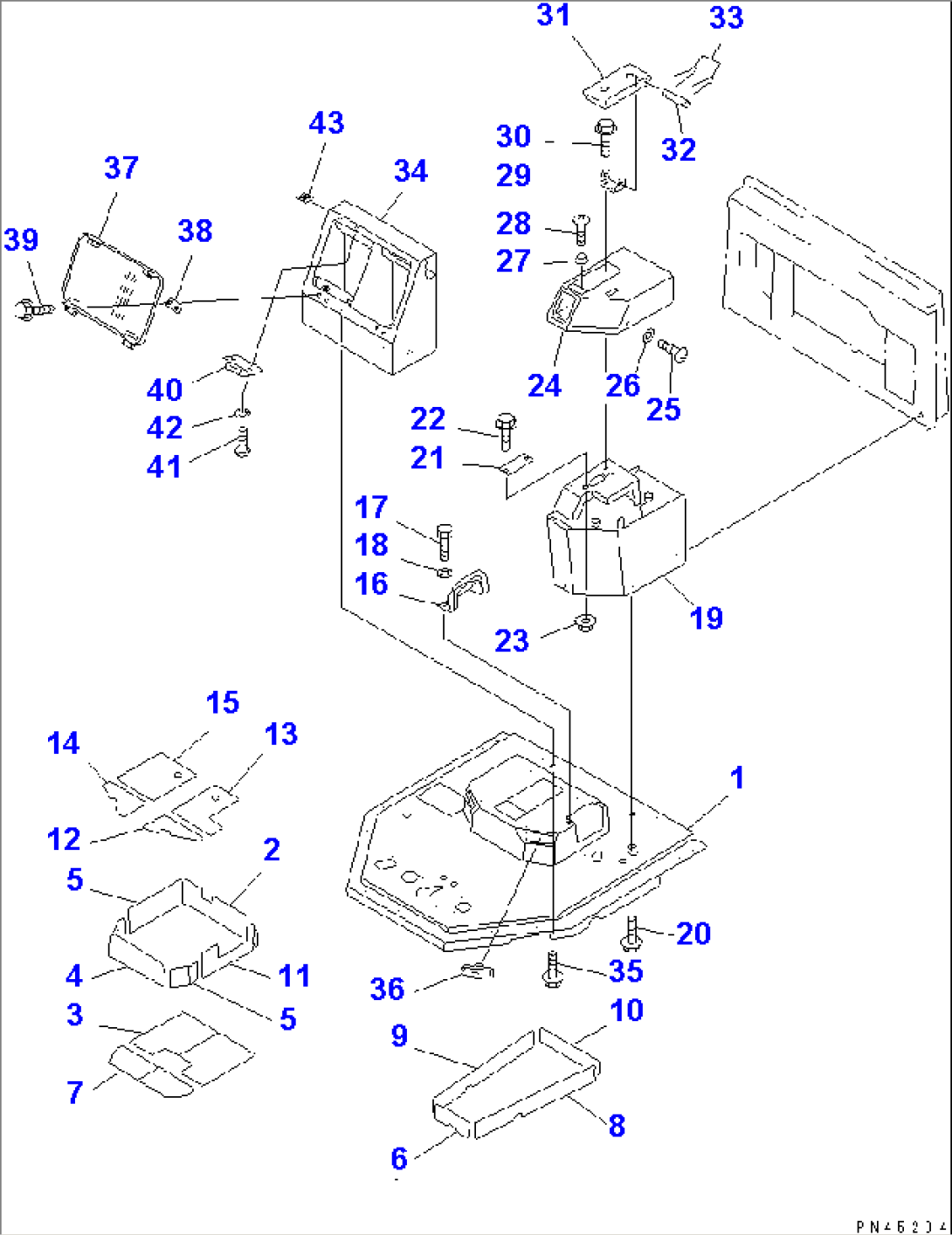

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-54-13810 | FRAME ASS'Y | 10001- | ||
| 1 | 427-54-13634 | FRAME,FLOOR | 10030- | |
| 1 | 427-54-13632 | FRAME,FLOOR | 10001-10030 | |
| 2 | 421-54-18450 | INSULATOR | 10001- | |
| 3 | 421-54-18470 | INSULATOR | 10001- | |
| 4 | 421-54-18420 | INSULATOR | 10001- | |
| 5 | 421-54-18430 | INSULATOR | 10001- | |
| 6 | 421-54-18330 | INSULATOR | 10001- | |
| 7 | 421-54-18460 | INSULATOR | 10001- | |
| 8 | 421-54-18340 | INSULATOR | 10001- | |
| 9 | 421-54-18350 | INSULATOR | 10001- | |
| 10 | 421-54-18360 | INSULATOR | 10001- | |
| 11 | 421-54-18440 | INSULATOR | 10001- | |
| 12 | 421-54-18370 | INSULATOR | 10001- | |
| 13 | 421-54-18390 | INSULATOR | 10001- | |
| 14 | 421-54-18380 | INSULATOR | 10001- | |
| 15 | 421-54-18410 | INSULATOR | 10001- | |
| 16 | 425-54-12570 | COVER | 10001- | |
| 17 | 01010-80825 | BOLT | 10001- | |
| 18 | 01643-30823 | WASHER | 10001- | |
| 19 | 424-54-12830 | BOX | 10001- | |
| 20 | 01435-01220 | BOLT | 10001- | |
| 21 | 424-54-12820 | PLATE | 10001- | |
| 22 | 01435-01020 | BOLT | 10001- | |
| 23 | 01584-01008 | NUT | 10001- | |
| 24 | 425-54-12671 | COVER | 10001- | |
| 25 | 01220-70616 | SCREW | 10001- | |
| 26 | 01642-40608 | WASHER | 10001- | |
| 27 | 425-54-12590 | STOPPER | 10001- | |
| 28 | 01220-40420 | SCREW | 10001- | |
| 29 | 425-54-12520 | PLATE | 10001- | |
| 30 | 01435-01020 | BOLT | 10001- | |
| 31 | 425-54-12510 | BRACKET | 10001- | |
| 32 | 425-54-12530 | SHAFT | 10001- | |
| 33 | 04050-13020 | PIN,COTTER | 10001- | |
| 34 | 427-54-13651 | BOX | 10102- | |
| 34 | \3\427-54-13650 | BOX | 10001-10101 | |
| (427-54-13651,428-963-1253) | ||||
| 35 | 01435-01220 | BOLT | 10001- | |
| 36 | 424-09-12610 | COVER | 10001- | |
| 37 | 421-T43-1310 | COVER | 10001- | |
| 38 | 421-T43-1320 | PLATE | 10001- | |
| 39 | 01435-00616 | BOLT | 10001- | |
| 40 | 09452-14503 | CATCHER | 10001- | |
| 41 | 01220-40308 | SCREW | 10001- | |
| 42 | 01601-20307 | WASHER,SPRING | 10001- | |
| 43 | 428-963-1410 | SEAT | 10001- |
