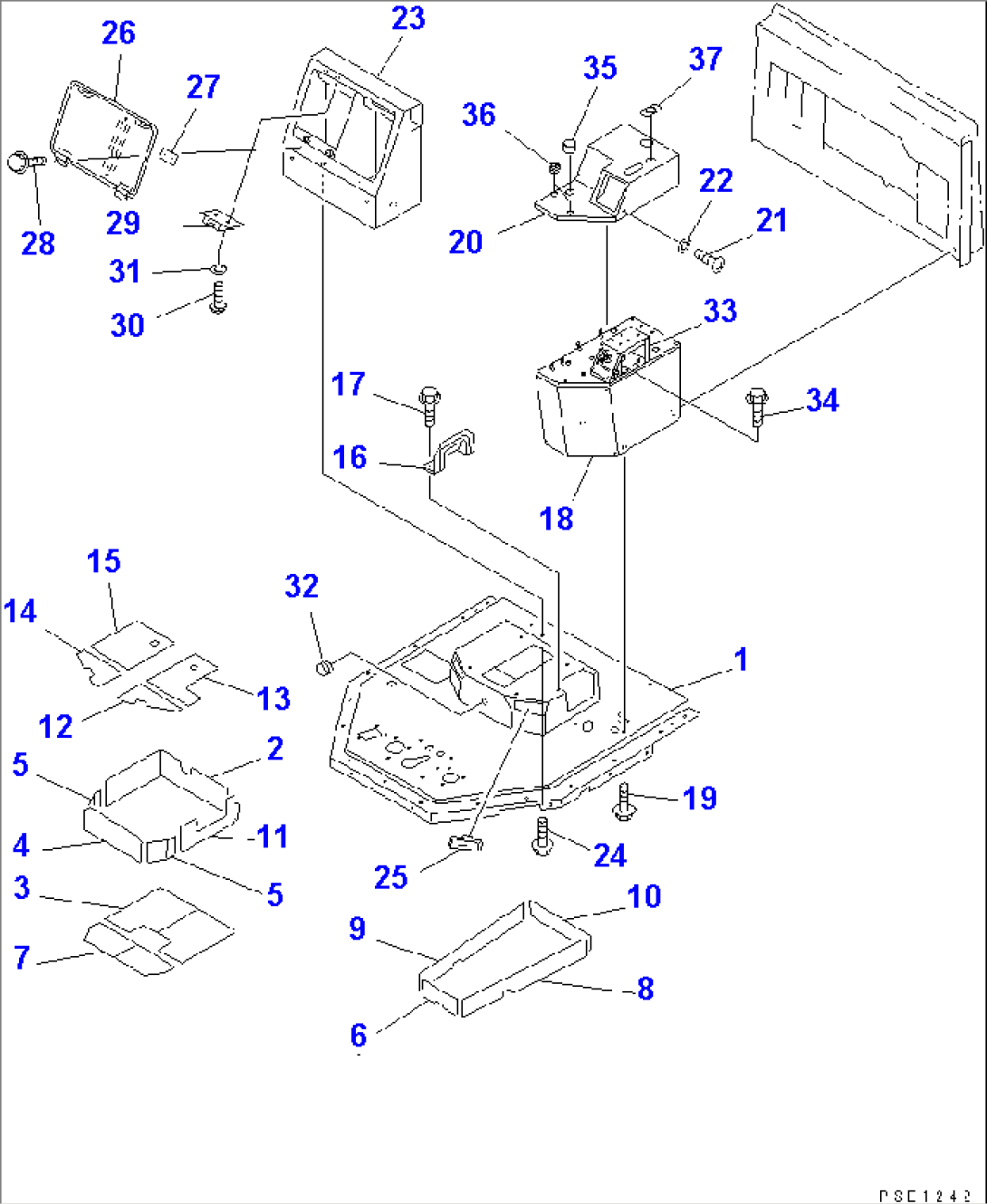

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (427-S33-2870) | FRAME,FLOOR | 10501- | |
| 2 | 421-54-18450 | INSULATOR | 10501- | |
| 3 | 421-54-18470 | INSULATOR | 10501- | |
| 4 | 421-54-18420 | INSULATOR | 10501- | |
| 5 | 421-54-18430 | INSULATOR | 10501- | |
| 6 | 421-54-18330 | INSULATOR | 10501- | |
| 7 | 421-54-18460 | INSULATOR | 10501- | |
| 8 | 421-54-18341 | INSULATOR | 10501- | |
| 9 | 421-54-18351 | INSULATOR | 10501- | |
| 10 | 421-54-18360 | INSULATOR | 10501- | |
| 11 | 421-54-18440 | INSULATOR | 10501- | |
| 12 | 427-S33-2710 | INSULATOR | 10501- | |
| 13 | 427-S33-2730 | INSULATOR | 10501- | |
| 14 | 427-S33-2720 | INSULATOR | 10501- | |
| 15 | 427-S33-2740 | INSULATOR | 10501- | |
| 16 | 425-54-12570 | COVER | 10501- | |
| 17 | 01435-00825 | BOLT | 10501- | |
| 18 | 427-S33-2790 | BOX | 10001- | |
| 19 | 01435-01220 | BOLT | 10501- | |
| 20 | 428-S33-2430 | COVER | 10001- | |
| 21 | 01220-70616 | SCREW | 10060- | |
| 22 | 01642-40608 | WASHER | 10060- | |
| 23 | 427-54-13650 | BOX | 10501- | |
| 24 | 01435-01220 | BOLT | 10501- | |
| 25 | 424-09-12610 | COVER | 10501- | |
| 26 | 421-T43-1310 | COVER | 10501- | |
| 27 | 421-T43-1320 | PLATE | 10501- | |
| 28 | 01435-00616 | BOLT | 10501- | |
| 29 | 09452-14503 | CATCHER | 10501- | |
| 30 | 01220-40308 | SCREW | 10501- | |
| 31 | 01601-20307 | WASHER,SPRING | 10501- | |
| 32 | 09415-00706 | CAP | 10501- | |
| 33 | 428-S33-2550 | COVER | 10501- | |
| 34 | 01435-00814 | BOLT | 10501- | |
| 35 | 09415-02512 | CAP | 10501- | |
| 36 | 09415-01610 | CAP | 10501- | |
| 37 | 428-S33-2510 | DECAL | 10501- |
