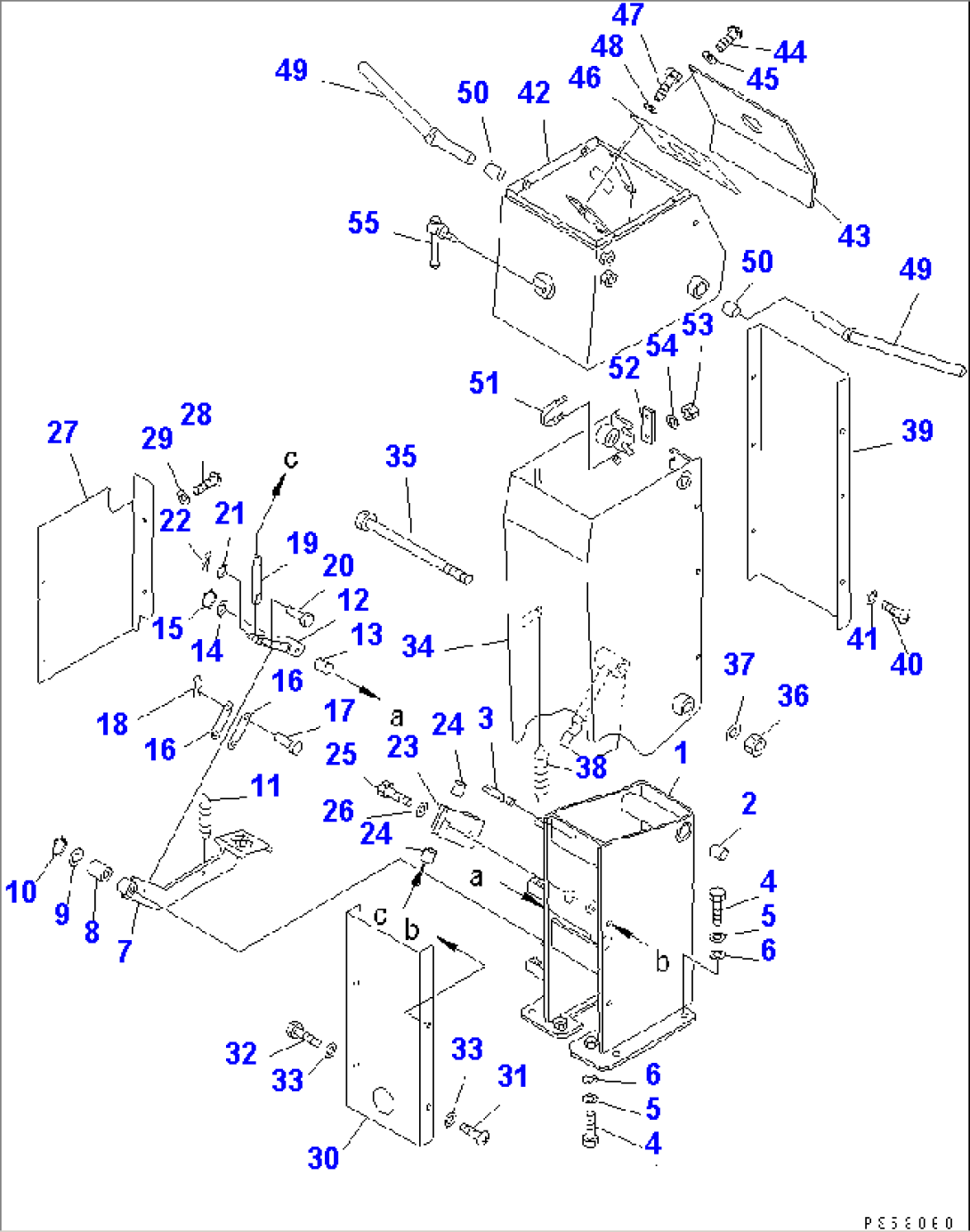

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-43-21150 | BRACKET | 11001-@ | |
| 2 | 234-885-1610 | BUSHING | 11001-@ | |
| 3 | 238-43-38280 | BOLT | 11001-@ | |
| 4 | 01010-51235 | BOLT | 11010-@ | |
| 01010-51235 | BOLT | 11001-11009 | ||
| 5 | 01640-21223 | WASHER | 11010-@ | |
| 01640-21223 | WASHER | 11001-11009 | ||
| 6 | 01643-31232 | WASHER | 11010-@ | |
| 01643-31232 | WASHER | 11001-11009 | ||
| 7 | 238-43-38220 | PEDAL | 11001-@ | |
| 8 | 237-43-17240 | BUSHING | 11001-@ | |
| 9 | 01643-31232 | WASHER | 11001-@ | |
| 10 | 04064-01210 | RING,SNAP | 11001-@ | |
| 11 | 234-835-2230 | SPRING | 11001-@ | |
| 12 | 238-43-38210 | LEVER | 11001-@ | |
| 13 | 237-43-17240 | BUSHING | 11001-@ | |
| 14 | 01643-31232 | WASHER | 11001-@ | |
| 15 | 04064-01210 | RING,SNAP | 11001-@ | |
| 16 | 238-43-38770 | PLATE | 11001-@ | |
| 17 | 04205-10822 | PIN | 11001-@ | |
| 18 | 234-43-18710 | PIN,SNAP | 11001-@ | |
| 19 | 238-43-38190 | PIN | 11001-@ | |
| 20 | 04205-10628 | PIN | 11001-@ | |
| 21 | 01643-30623 | WASHER | 11001-@ | |
| 22 | 233-43-27750 | PIN,SNAP | 11001-@ | |
| 23 | 238-43-38180 | BLOCK | 11001-@ | |
| 24 | 237-43-17240 | BUSHING | 11001-@ | |
| 25 | 01010-51030 | BOLT | 11001-@ | |
| 26 | 01643-31032 | WASHER | 11001-@ | |
| 27 | 23D-43-21590 | COVER | 11001-@ | |
| 28 | 01220-40616 | SCREW | 11001-@ | |
| 29 | 01643-30623 | WASHER | 11001-@ | |
| 30 | 23F-43-11160 | COVER | 11001-12013 | |
| 31 | 01220-40616 | SCREW | 11001-@ | |
| 32 | 01010-50616 | BOLT | 11001-@ | |
| 33 | 01643-30623 | WASHER | 11001-@ | |
| 34 | 23F-43-11230 | BOX | 11002-@ | |
| 23D-43-21161 | BOX | 11001-11001 | ||
| 35 | 238-43-38160 | SHAFT | 11001-@ | |
| 36 | 233-43-27860 | NUT | 11001-@ | |
| 37 | 01643-31845 | WASHER | 11001-@ | |
| 38 | 230-43-13120 | SPRING | 11001-@ | |
| 39 | 23D-43-21610 | COVER | 11001-@ | |
| 40 | 01220-40616 | SCREW | 11001-@ | |
| 41 | 01643-30623 | WASHER | 11001-@ | |
| 42 | 23F-843-1710 | BOX | 11001-@ | |
| 43 | 23F-843-1720 | COVER | 11001-@ | |
| 44 | 01220-40620 | SCREW | 11001-@ | |
| 45 | 01643-30623 | WASHER | 11001-@ | |
| 46 | 23D-43-18550 | PLATE | 11001-@ | |
| 47 | 01010-51035 | BOLT | 11001-@ | |
| 48 | 01643-31032 | WASHER | 11001-@ | |
| 49 | 23D-43-21521 | SHAFT | 11001-@ | |
| 50 | 234-885-1610 | BUSHING | 11001-@ | |
| 51 | 07283-22236 | CLIP | 11001-@ | |
| 52 | 23D-43-21620 | PLATE | 11001-@ | |
| 53 | 01580-11008 | NUT | 11001-@ | |
| 54 | 01643-31032 | WASHER | 11001-@ | |
| 55 | 238-43-38230 | HANDLE | 11001-@ |
