| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-06260 | Valve, Pilot | 80001- | |
| 2 | 702-16-54641 | Boot | 80001- | |
| 3 | 01252-60625 | Bolt | 80001- | |
| 4 | 702-16-54650 | Plate | 80001- | |
| 5 | 702-16-54920 | Ring | 80001- | |
| 6 | 08034-00310 | Band, White | 80001- | |
| 7 | 08034-20310 | Band, Black | 80001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 7 s/n 80001 up
- Operator's compartment and control system
- Console r.h., ppc valve for loader (#80001 )
Поиск по каталогу

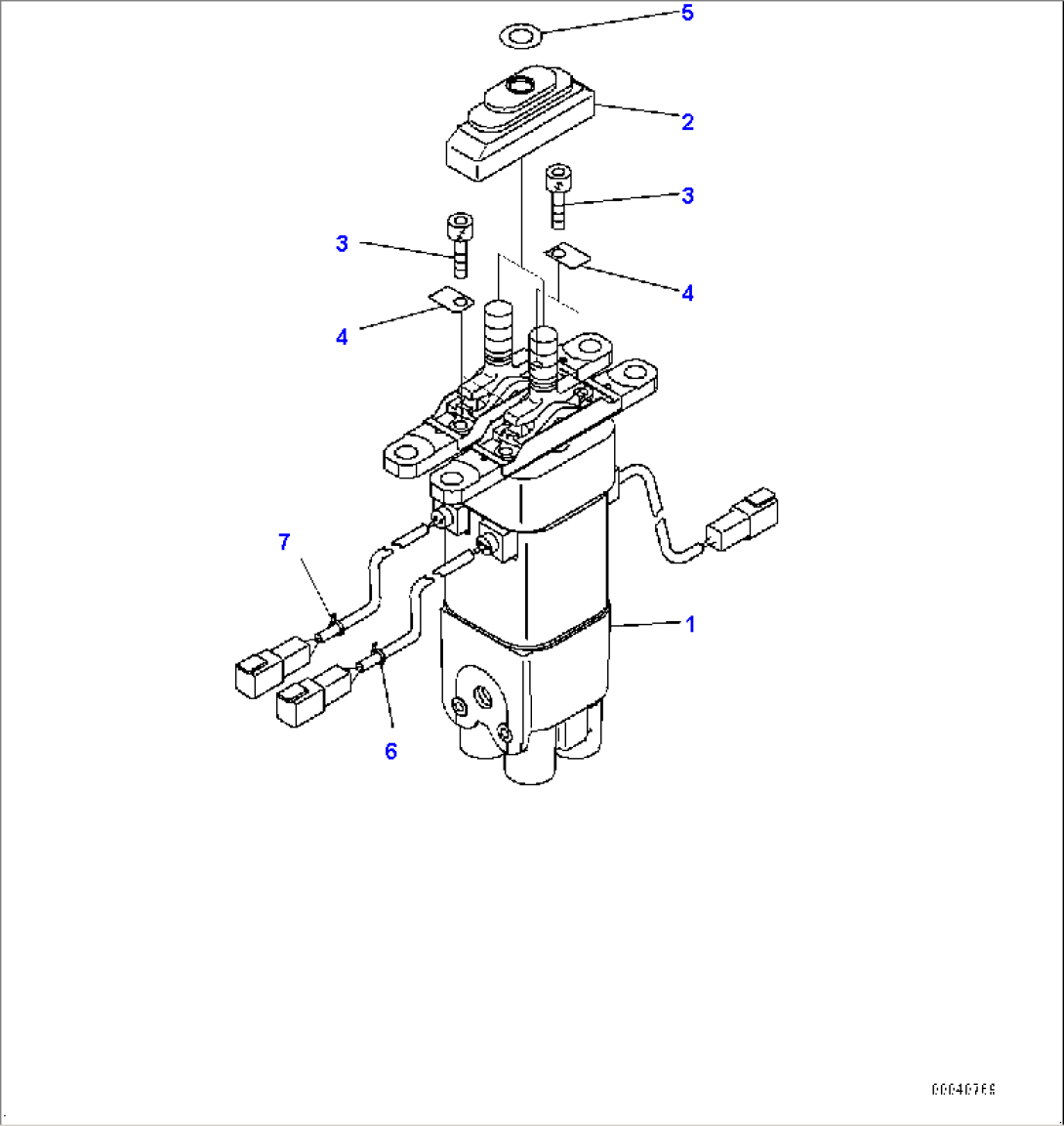

Console R.H., PPC Valve for Loader (#80001-)
