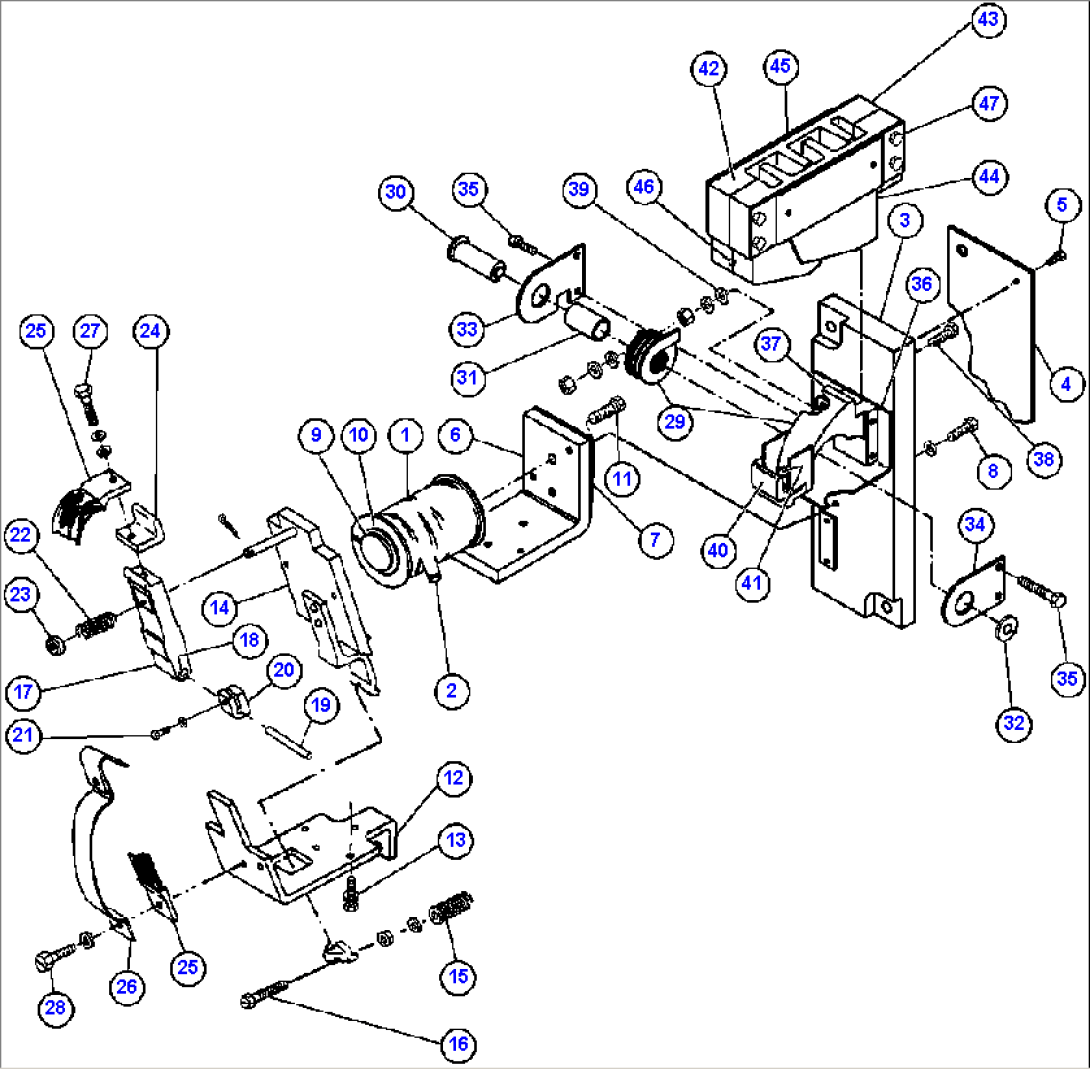

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VM0185 | COIL | ||
| 1 | VS9055 | RETAINER | ||
| 2 | VS9208 | SCREW W/LOCKWASHER - #10 - 32NF X 3/8" | ||
| 3 | VS9334 | BASE | ||
| 4 | VS9181 | SHIELD | ||
| 5 | VE5766 | MACHINE SCREW - #6 X 3/8" | ||
| 6 | VS8940 | FRAME | ||
| 7 | VS9050 | SPACER | ||
| 8 | VS9210 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 9 | VS8889 | CORE | ||
| 10 | VJ9163 | WASHER - SPRING | ||
| 11 | VP9590 | SCREW W/WASHERS | ||
| 12 | VS9236 | STOP | ||
| 13 | DH5941 | CAPSCREW - 1/4" - 20NC X 5/8" | ||
| 14 | VS9230 | ARMATURE | ||
| 15 | VM0198 | SPRING | ||
| 16 | VS9368 | SCREW | ||
| 17 | VS9235 | ARM | ||
| 18 | VS7704 | BUSHING | ||
| 19 | VS9183 | PIN | ||
| 20 | VS9182 | BLOCK | ||
| 21 | VE5156 | CAPSCREW - #10 - 32NF X 7/8" | ||
| 22 | VM0287 | SPRING (1) | ||
| 23 | VS9184 | SEAT (1) | ||
| 24 | VM0199 | TIP, CONTACT (1) | ||
| 25 | VM0283 | SHUNT | ||
| 26 | VM0282 | HORN | ||
| 27 | VN9544 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 28 | DH5941 | CAPSCREW - 1/4" - 20NC X 5/8" | ||
| 29 | VS8682 | COIL / SUPPORT | ||
| 30 | VS9393 | CORE | ||
| 31 | VJ9130 | TUBE | ||
| 32 | VJ9123 | HEAD | ||
| 33 | VS8913 | FLANGE | ||
| 34 | VS8911 | FLANGE | ||
| 35 | VS9209 | SCREW W/LOCKWASHER - #10 - 32NF X 1/2" | ||
| 36 | VS8888 | SHIELD | ||
| 37 | 9414509 | CAPSCREW W/LOCKWASHER | ||
| 38 | TR4065 | CAPSCREW | ||
| 39 | VS8233 | SPACER | ||
| 40 | VM0199 | TIP, CONTACT (1) | ||
| 41 | VN9544 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 42 | VS8875 | SIDE - L.H. | ||
| 43 | VS8874 | SIDE - R.H. | ||
| 44 | VP9573 | PIECE, POLE | ||
| 45 | VS9389 | PIECE, POLE | ||
| 46 | VS8275 | PIN | ||
| 47 | VJ8980 | MACHINE SCREW | ||
| NS|49 | NOTE: NS = NOT SHOWN | |||
| NS|50 | VE3530 | SENSOR, POSITION (SEE INDEX) | ||
| NS|51 | AK0943 | NOTE: (1) INCLUDED IN AK0943 CONTACT TIP KIT. |
