| Item | Part No. | Part Name | Qty | Serial No. |

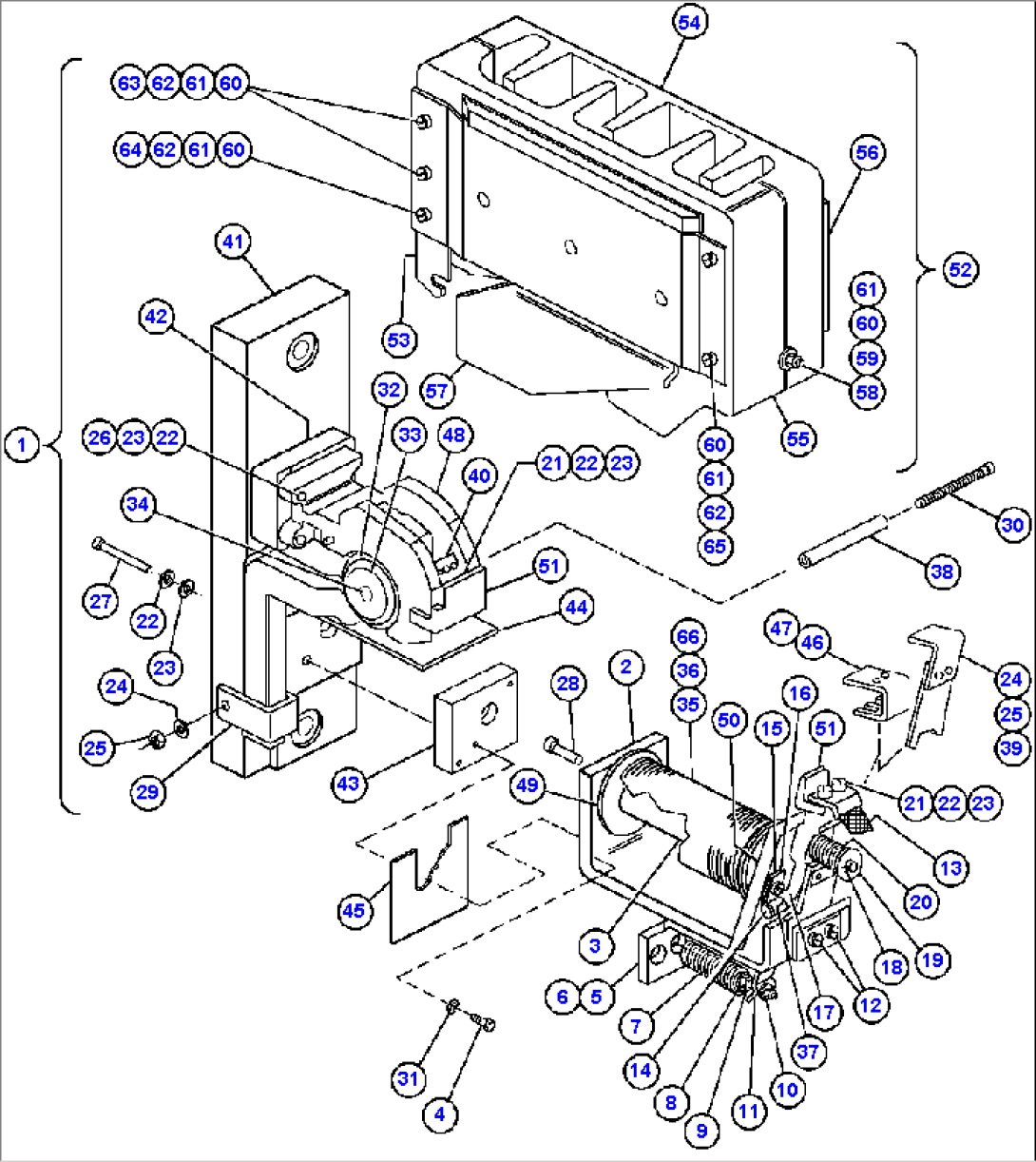

| 1 | VE1317 | CONTACTOR - GF & GFR | | |
| 2 | VS8925 | MAGNET, FRAME | | |
| 3 | VS8908 | CORE | | |
| 4 | VS9207 | SCREW W/LOCKWASHER - #8 - 36NF X 1/2" | | |
| 5 | VS9322 | FRAME, SPRING BRACKET | | |
| 6 | VK0979 | SCREW WITH LOCKWASHER - 3/8" - 16NC X 3/4" | | |
| 7 | VM0242 | SPRING WITH PLUG | | |
| 8 | VE5771 | LOCKWASHER - #10 (EXTERNAL TOOTH) | | |
| 9 | SF2755 | NUT - #10 - 32NF | | |
| 10 | VS9034 | CALIBRATING SCREW - #10 - 32NF X 2 7/16" | | |
| 11 | BF1890 | ARMATURE ASSEMBLY | | |
| 12 | R3869 | CAPSCREW - 5/16" - 18NC X 5/8" | | |
| 12 | C1538 | LOCKWASHER - 5/16" | | |
| 13 | VM0275 | SHUNT | | |
| 14 | VS9172 | PIN - 5/16" DIAMETER, 2 7/8" LONG, STN STL | | |
| 15 | VS9171 | CLAMP | | |
| 16 | VS9209 | SCREW W/LOCKWASHER - #10 - 32NF X 1/2" | | |
| 17 | VS8285 | CONTACT ARM | | |
| 18 | VE5761 | COTTER PIN - 3/32" DIAMETER, 1/2" LONG | | |
| 19 | VS9175 | SEAT, SPRING | | |
| 20 | VM0253 | SPRING - 1 1/4" LONG | | |
| 21 | VJ7860 | CAPSCREW - 5/16" - 18NC X 1 1/4" | | |
| 22 | VE4696 | LOCKWASHER - 5/16" | | |
| 23 | AK1960 | FLAT WASHER - 5/16" (ZINC PL) | | |
| 24 | DC3584 | LOCKWASHER - 1/4" | | |
| 25 | VE4347 | NUT - 1/4" - 20NC | | |
| 26 | VE2250 | CAPSCREW - 5/16" - 18NC X 2 1/4" | | |
| 27 | VE2249 | CAPSCREW - 5/16" - 18NC X 2" | | |
| 28 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | | |
| 28 | C0312 | LOCKWASHER - 3/8" | | |
| 29 | VJ8979 | CLAMP | | |
| 30 | VJ9150 | CAPSCREW - 1/4" - 20NC X 3 1/2" | | |
| 31 | VE4604 | FLAT WASHER - #8 | | |
| 32 | VJ8710 | INSULATION FLANGE - 2 3/8" OD, 1/32" THICK | | |
| 33 | BF1891 | CORE FLANGE - 2" OD | | |
| 34 | BF1892 | CORE | | |
| 35 | VS6662 | FLAT WASHER - #10 | | |
| 36 | VJ9158 | MACHINE SCREW - #10 - 32NF X 3/8" | | |
| 36 | H2643 | LOCKWASHER - #10 | | |
| 37 | VS6881 | FLAT WASHER - 5/16" (BRASS) | | |
| 38 | VS7830 | SPACER - 2 3/16" LONG | | |
| 39 | VM0217 | ARCING HORN | | |
| 40 | VM0229 | ARCING HORN | | |
| 41 | VE7738 | SUPPORT BLOCK | | |
| 42 | VS7165 | BLOCK | | |
| 43 | VS7166 | BLOCK | | |
| 44 | VS7132 | INSULATION | | |
| 45 | VE2248 | SHIM - 0.035" THICK | | |
| 46 | VM0229 | ARCING HORN | | |
| 47 | | (NOT USED THIS APPLICATION) | | |
| 48 | VJ1124 | BLOWOUT COIL SUPPORT | | |
| 49 | VE3288 | PLATE, LOCKING | | |
| 50 | VE0252 | SPRING WASHER - 1.40" | | |
| 51 | VE1183 | CONTACT TIP | | |
| 52 | VJ0846 | ARC CHUTE | | |
| 53 | VS6697 | SUPPORT | | |
| 54 | VJ8965 | SIDE, ARC CHUTE | | |
| 55 | VJ8966 | SIDE, ARC CHUTE | | |
| 56 | VE5778 | POLE PIECE | | |
| 57 | VE1076 | POLE PIECE | | |
| 58 | VE5779 | CAPSCREW - 1/4" - 20NC X 1 1/4" | | |
| 59 | TR1307 | FLAT WASHER - 1/4" | | |
| 60 | DC3584 | LOCKWASHER - 1/4" | | |
| 61 | TD1549 | NUT - 1/4" - 20NC | | |
| 62 | VE5781 | CAPSCREW - 1/4" - 20NC X 3 1/4" | | |
| 63 | VF6144 | FLAT WASHER - 1/4" | | |
| 64 | VS6695 | BUSHING - 5/32" LONG | | |
| 65 | VS6696 | BUSHING - 3/8" LONG | | |
| 66 | VM0250 | COIL, OPERATING | | |
