| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-54-31171 | FRAME | 20150- | |
| 1 | \0\21T-54-31170 | FRAME | 20001-20149 | |
| 2 | 21T-54-31121 | PLATE | 20001- | |
| 3 | 21T-54-31130 | BOLT | 20001- | |
| 4 | 01643-34212 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc2000 8 s/n 20001 20195 ( 40°c spec.)
- Guard
- Container base frame (cold weather spec.)(#20001 )
Поиск по каталогу

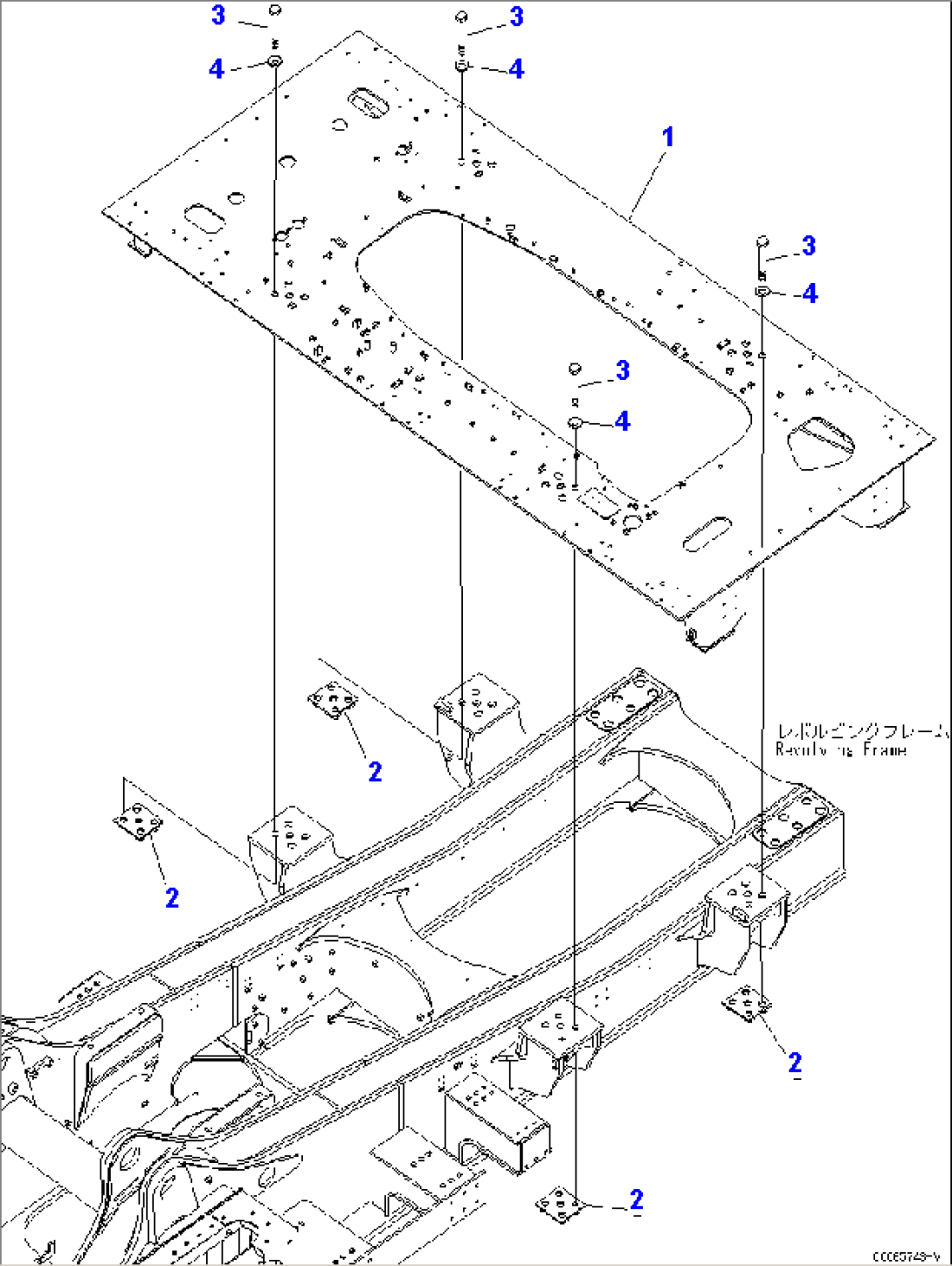

CONTAINER BASE FRAME (COLD WEATHER SPEC.)(#20001-)
