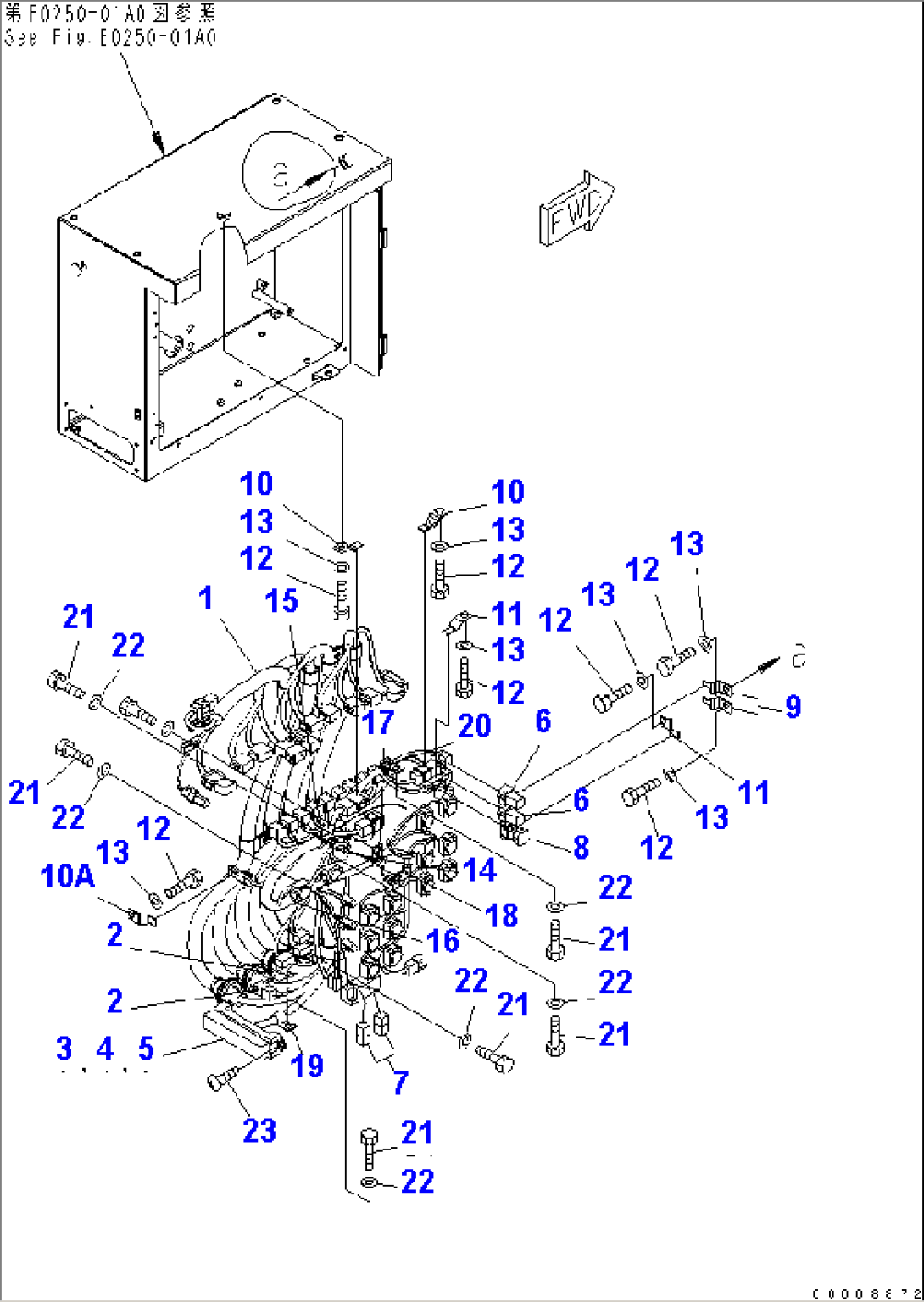

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-06-1211 | WIRING HARNESS | 1001- | |
| 2 | 08020-00000 | DIODE | 1001- | |
| 3 | 08041-01000 | FUSE¤ 10A | 1001- | |
| 4 | 08041-02000 | FUSE¤ 20A | 1001- | |
| 5 | 08044-01500 | BOX | 1001- | |
| 6 | 8233-06-3350 | DIODE | 1001- | |
| 7 | 8285-06-1210 | RESISTOR | 1001- | |
| 8 | 8295-06-1890 | RESISTOR | 1001- | |
| 9 | 08053-00912 | CLIP | 1001- | |
| 10 | 08053-01512 | CLIP | 1001- | |
| 10A | 08193-31012 | CLIP | 1001- | |
| 11 | 08193-21012 | CLIP | 1001- | |
| 12 | 01010-81220 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 04434-53412 | CLIP | 1001- | |
| 15 | 04434-52712 | CLIP | 1001- | |
| 16 | 04434-51912 | CLIP | 1001- | |
| 17 | 04434-51612 | CLIP | 1001- | |
| 18 | 04434-51412 | CLIP | 1001- | |
| 19 | 04434-51512 | CLIP | 1001- | |
| 20 | 04434-51412 | CLIP | 1001- | |
| 21 | 01010-81220 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 01023-10620 | SCREW | 1001- |
