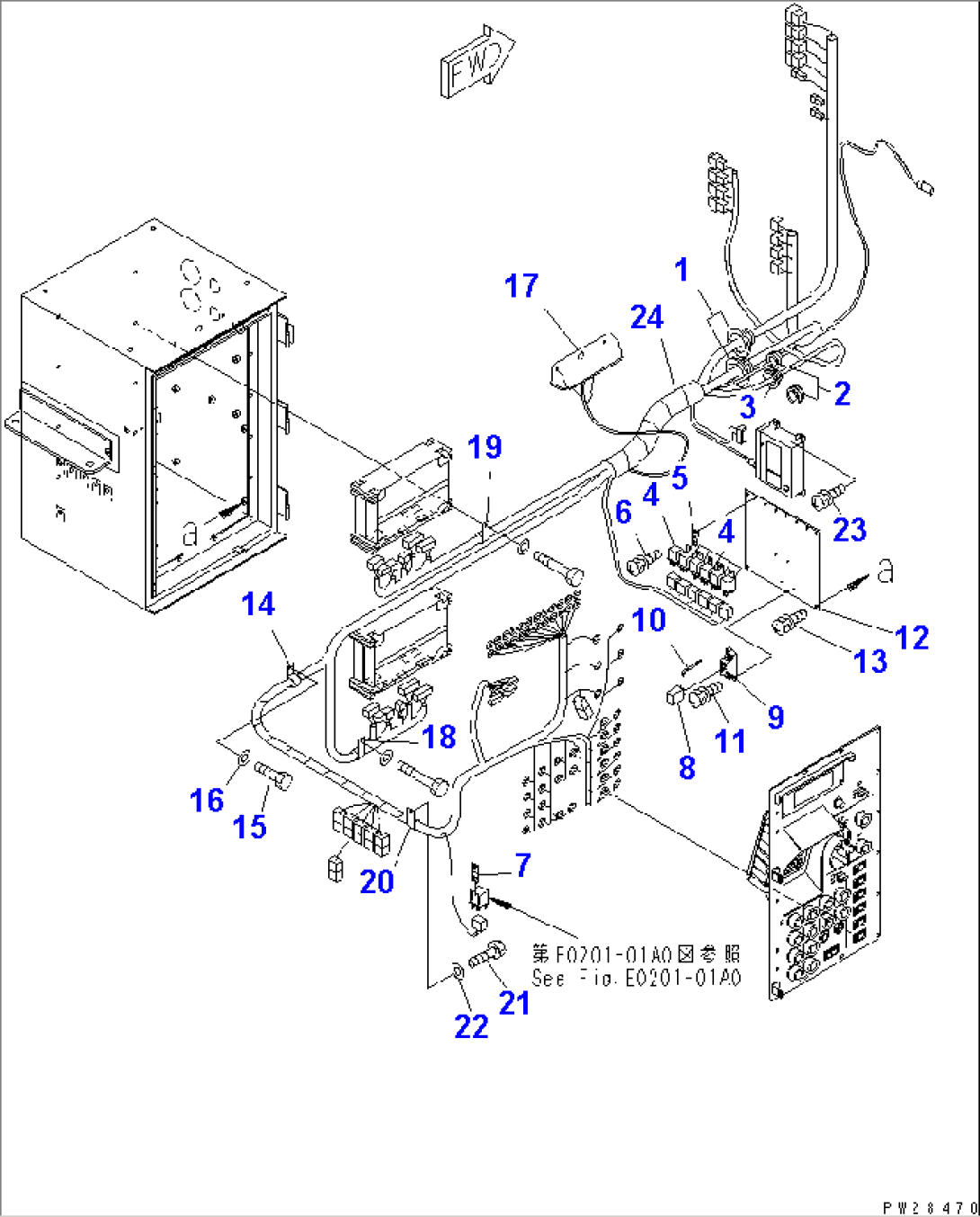

| Item | Part No. | Part Name | Qty | Serial No. |
| (8255-06-4203) | CONTROL BOX ASS'Y | 1101-1188 | ||
| (8255-06-4202) | CONTROL BOX ASS'Y | 1029-1099 | ||
| (8255-06-4201) | CONTROL BOX ASS'Y | 1001-1028 | ||
| 1 | 08037-13550 | GROMMET | 1001-@ | |
| 2 | 8255-06-4820 | GROMMET | 1001-@ | |
| 3 | 08037-11825 | GROMMET | 1001-@ | |
| 4 | 569-06-61960 | RELAY | 1001-@ | |
| 5 | 287-06-16420 | BRACKET | 1001-@ | |
| 6 | 01023-60614 | SCREW | 1001-@ | |
| 7 | 287-06-16420 | BRACKET | 1001-@ | |
| 8 | 8206-06-3370 | RELAY | 1001-@ | |
| 9 | 8206-06-3230 | SOCKET | 1001-@ | |
| 10 | 8221-06-1270 | LOCK | 1001-@ | |
| 11 | 01023-60416 | SCREW | 1001-@ | |
| 12 | 8255-06-4640 | PLATE | 1001-@ | |
| 13 | 01023-60614 | SCREW | 1001-@ | |
| 14 | 08052-42711 | CLIP | 1001-@ | |
| 15 | 01010-80816 | BOLT | 1001-@ | |
| 16 | 01643-30823 | WASHER | 1001-@ | |
| 17 | 08137-62400 | LAMP | 1001-@ | |
| 17 | 08110-12410 | BULB, 12W | 1001-@ | |
| 18 | 08052-42711 | CLIP | 1001-@ | |
| 19 | 08052-42711 | CLIP | 1001-@ | |
| 20 | 08052-42711 | CLIP | 1001-@ | |
| 21 | 01010-80816 | BOLT | 1001-@ | |
| 22 | 01643-30823 | WASHER | 1001-@ | |
| 23 | 01023-60412 | SCREW | 1001-@ | |
| 24 | 8255-06-4872 | WIRING HARNESS | 1101-@ | |
| 24 | 8255-06-4871 | WIRING HARNESS | 1029-1099 | |
| 24 | 8255-06-4870 | WIRING HARNESS | 1001-1028 |
