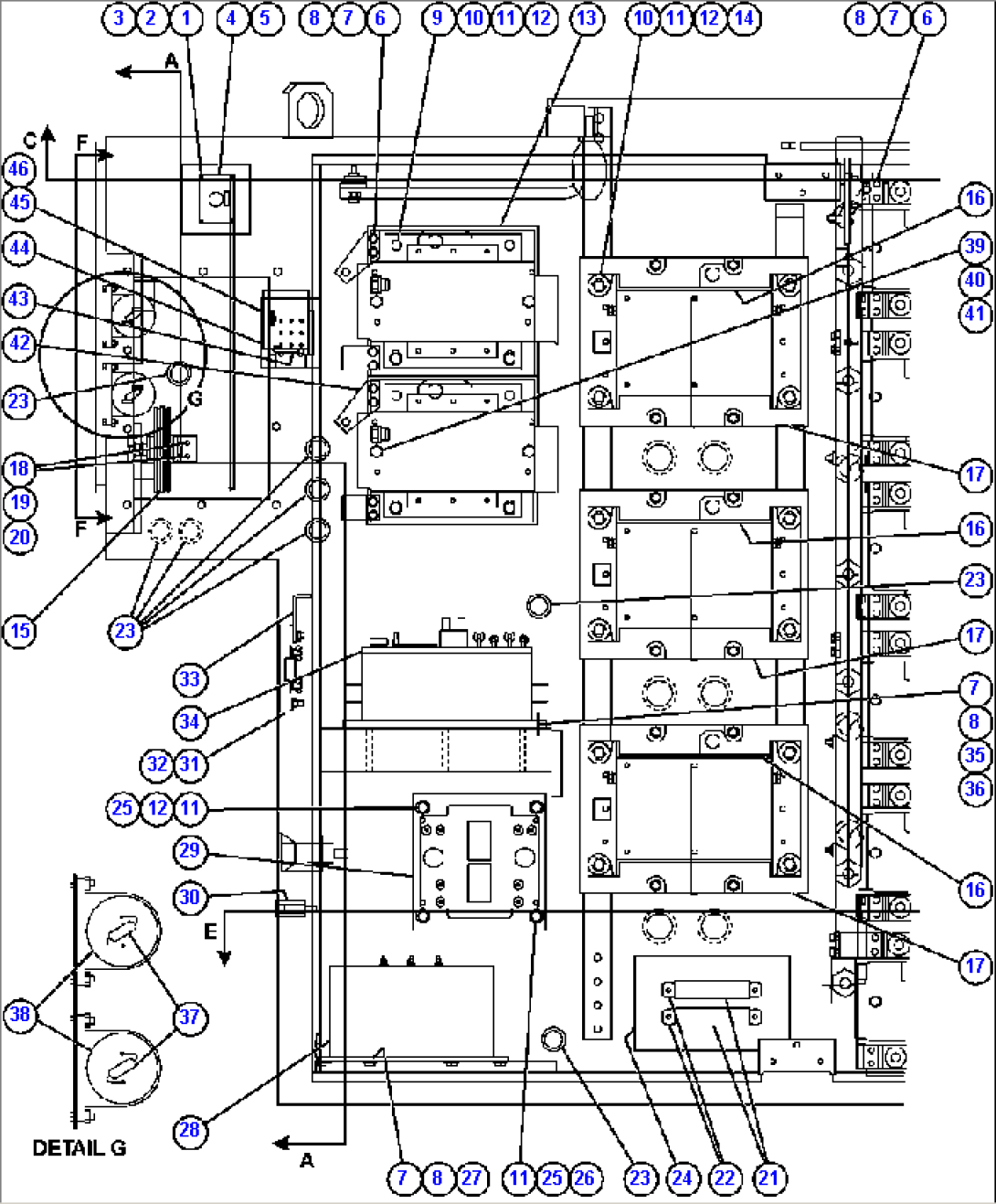

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE4655 | WASHER - #10 | | |
| 2 | VE4601 | LOCKWASHER - #10 | | |
| 3 | SF2755 | NUT - #10 | | |
| 4 | GE0177 | BOARD, PRINTED WIRE | | |
| 5 | GE0214 | LENS CAP, CLEAR | | |
| 6 | VE4516 | WASHER - 3/8" (NARROW) | | |
| 7 | VE4687 | LOCKWASHER - 3/8" | | |
| 8 | TC1233 | NUT, HEX | | |
| 9 | GE0254 | STUD | | |
| 10 | VE5169 | WASHER | | |
| 11 | VC1390 | LOCKWASHER - 5/8" | | |
| 12 | GE0045 | NUT, HEX | | |
| 13 | GE1246 | BASE ASSEMBLY | | |
| 13 | GE0165 | RESISTOR - 12 OHM | | |
| 13 | GE0166 | STEP WASHER | | |
| 13 | GE1247 | BAR | | |
| 14 | GE0862 | STUD | | |
| 15 | PB5230 | RESISTOR, THYRITE | | |
| 16 | GE0859 | RECTIFIER PANEL, IGBT (RU PANEL) | | |
| 17 | GE0876 | BASE ASSEMBLY | | |
| 18 | VE5762 | WASHER - 5/16" (NARROW) | | |
| 19 | VE4696 | LOCKWASHER - 5/16" | | |
| 20 | VE5013 | NUT | | |
| 21 | GE0227 | FUSE, HIGH VOLTAGE - 15 AMP | | |
| 22 | GE0229 | INSULATOR ASSEMBLY | | |
| 23 | GE0861 | GROMMET | | |
| 24 | GE0230 | FUSE PLATE | | |
| 25 | GE0042 | WASHER - 5/8" | | |
| 26 | VE4992 | CAPSCREW - 5/8" - 11NC X 1 3/4" | | |
| 27 | VE4515 | WASHER - 3/8" | | |
| 28 | GE0159 | PANEL, GATE DRIVER POWER SOURCE | | |
| 29 | GE0158 | PANEL, GATE DRIVER POWER CONVERTER | | |
| 30 | GE0205 | INSULATOR ASSEMBLY | | |
| 31 | GE0231 | FUSE PANEL | | |
| 31 | GE0515 | BAR, BUS - 3/4" X 2 3/16" | | |
| 31 | GE0516 | BAR, BUS - 3/4" X 6" | | |
| 31 | GE0232 | LIMITER, FUSE | | |
| 32 | BF3908 | SHIELD, GLASTIC | | |
| 33 | GE0875 | BAR, BUS | | |
| 34 | GE0858 | A.F.S.E. PANEL (SEE INDEX) | | |
| 35 | VE4640 | CAPSCREW - 3/8" - 16NC X 1 1/2" | | |
| 36 | GE0759 | WASHER - 3/8" (HARD) | | |
| 37 | GE0762 | CAPACITOR ASSEMBLY | | |
| 37 | GE0819 | CAPACITOR - 300 VOLT | | |
| 38 | GE0761 | RESISTOR ASSEMBLY | | |
| 38 | GE0820 | RESISTOR - 5 WATT/20,000 OHM | | |
| 39 | VE4519 | WASHER - 1/2" (NARROW) | | |
| 40 | VE4699 | LOCKWASHER - 1/2" | | |
| 41 | VX0421 | CAPSCREW - 1/2" - 13NC X 3 1/4" | | |
| 42 | VS6823 | RESISTOR | | |
| 42 | VE8185 | CEMENT | | |
| 42 | VE7272 | SEALANT | | |
| 42 | GE0661 | SEALANT - 100 FT | | |
| 43 | BF4452 | MODULE, SUPPRESSION | | |
| 44 | VG7043 | RELAY (SEE INDEX) | | |
| 45 | DC3584 | LOCKWASHER - 1/4" | | |
| 46 | TD1549 | NUT - 1/4" - 20NC | | |
| NS|58 | | NOTE: NS = NOT SHOWN | | |
| NS|59 | GE1245 | CHOPPER MODULE PANEL (RU PANEL) | | |
| NS|60 | | (SEE FOLLOWING PAGES FOR VIEWS A-A; B-B; | | |
| NS|61 | | E-E; F-F & DETAIL "G") | | |
