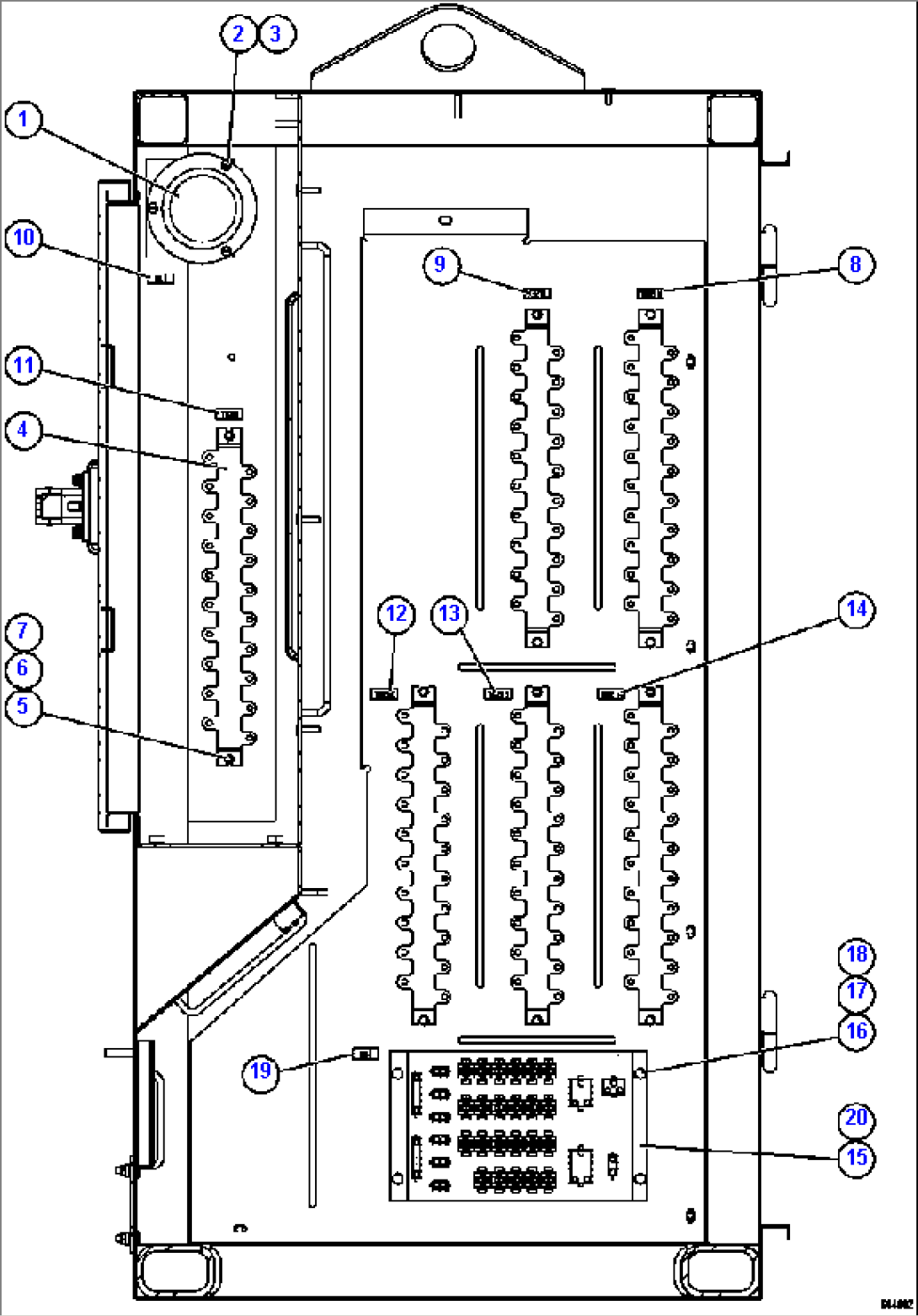

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VS0035 | LIGHT, DOME | ||
| 1 | VZ1912 | BULB | ||
| 1 | TM9090 | INSULATOR | ||
| 2 | TG1929 | MACHINE SCREW - #10 X 1/2" | ||
| 3 | DC3101 | LOCKWASHER - #10 | ||
| 4 | VS8193 | BOARD, TERMINAL (SEE FIG 64070A) | ||
| 5 | MM0459 | FLAT WASHER - M6 | ||
| 6 | MM0206 | LOCKWASHER - M5 | ||
| 7 | MM0373 | NUT - M5 X 0.80 | ||
| 8 | WB2652 | PLATE, NAME - TB21K | ||
| 9 | WB2653 | PLATE, NAME - TB21L | ||
| 10 | EC7462 | PLATE, NAME - DL1 | ||
| 11 | EF3014 | PLATE, NAME - TB32 | ||
| 12 | EB7413 | PLATE, NAME - TB21C | ||
| 13 | EB7408 | PLATE, NAME - TB21B | ||
| 14 | EB7257 | PLATE, NAME - TB21A | ||
| 15 | EK4993 | DIODE BOARD ASSEMBLY - DB1 | ||
| 16 | MM0469 | LOCKWASHER - M6 | ||
| 17 | MM0459 | FLAT WASHER - M6 | ||
| 18 | MM0007 | CAPSCREW - M6 X 1.00 X 12 | ||
| 19 | EC8825 | PLATE, NAME - DB1 | ||
| 20 | ED3922 | RESISTOR |
