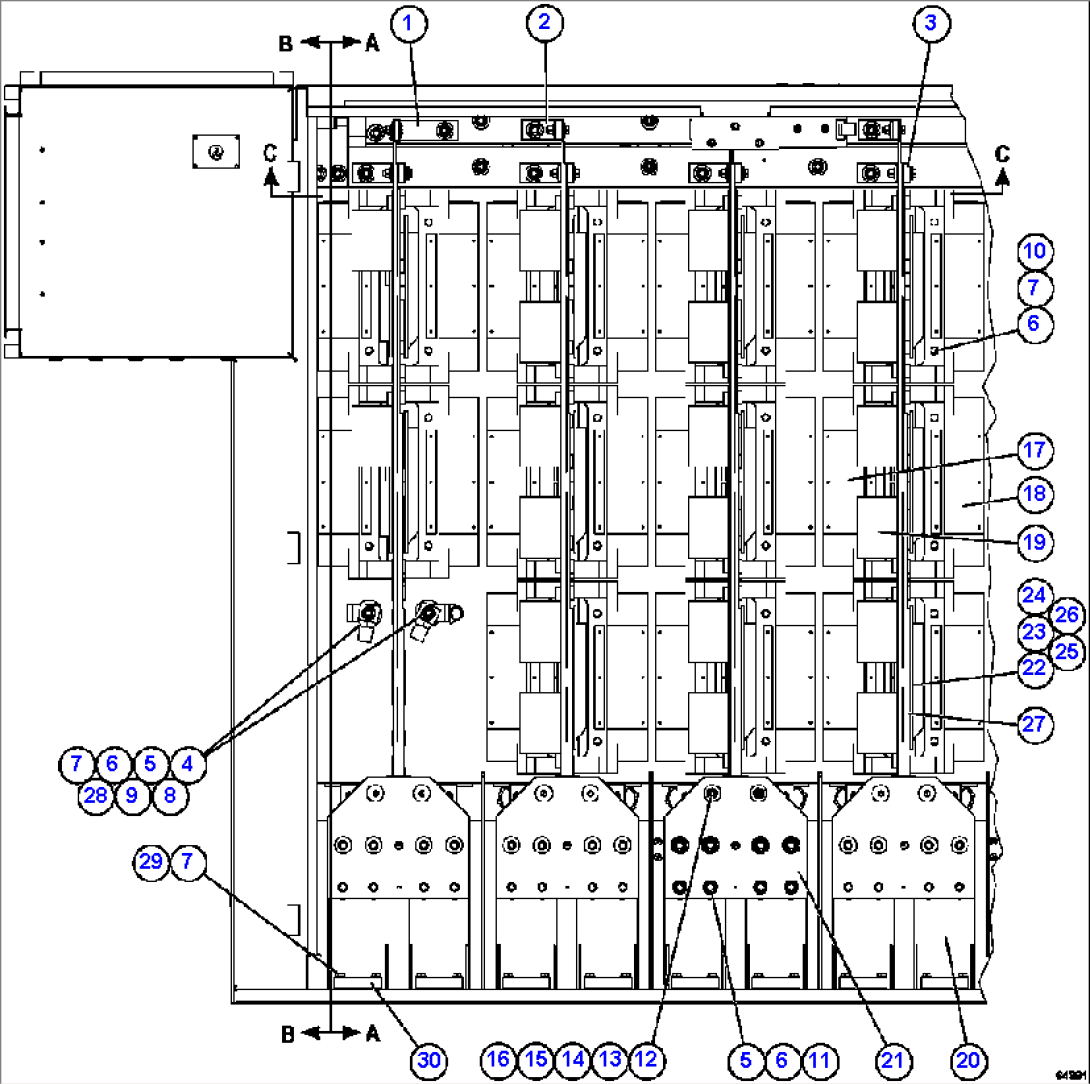

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA4250 | BUS BAR | ||
| 2 | XA4328 | BUS BAR | ||
| 3 | XA4249 | BUS BAR | ||
| 4 | GE0579 | STUD | ||
| 5 | VE4699 | LOCKWASHER - 1/2" | ||
| 6 | VE4698 | NUT - 1/2" - 13NC | ||
| 7 | VE4519 | FLAT WASHER - 1/2" | ||
| 8 | GE1409 | BUS BAR | ||
| 9 | PB3348 | INSULATOR | ||
| 10 | GE1384 | STUD | ||
| 11 | VE4490 | FLAT WASHER - 1/2" | ||
| 12 | VE3918 | WASHER | ||
| 13 | VE4687 | LOCKWASHER - 3/8" | ||
| 14 | VE4515 | FLAT WASHER - 3/8" | ||
| 15 | TC1233 | NUT - 3/8" - 16NC | ||
| 16 | VE4640 | CAPSCREW - 3/8" - 16NC X 1 1/2" | ||
| 17 | GE1255 | INVERTER, IGBT (+) | ||
| 18 | GE1256 | INVERTER, IGBT (-) | ||
| 19 | XA4290 | FUSE, IGBT | ||
| 20 | XA4876 | CAPACITOR, FILTER | ||
| 21 | GE1413 | BUS BAR | ||
| 22 | BF0543 | CAPSCREW - 5/16" - 18NC X 2 1/2" | ||
| 23 | GE1381 | FLAT WASHER - 5/16" | ||
| 24 | GE1383 | FLAT WASHER - 11/16" | ||
| 25 | VE4696 | LOCKWASHER - 5/16" | ||
| 26 | VE0513 | NUT - 5/16" - 18NC | ||
| 27 | GE1412 | BUS BAR, VERTICAL | ||
| 28 | XA5801 | TERMINAL | ||
| 29 | VE4518 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 30 | XA5273 | SPACER | ||
| 30 | (FOR VIEWS A-A, B-B & C-C, SEE THE FOLLOWING PAGES.) |
