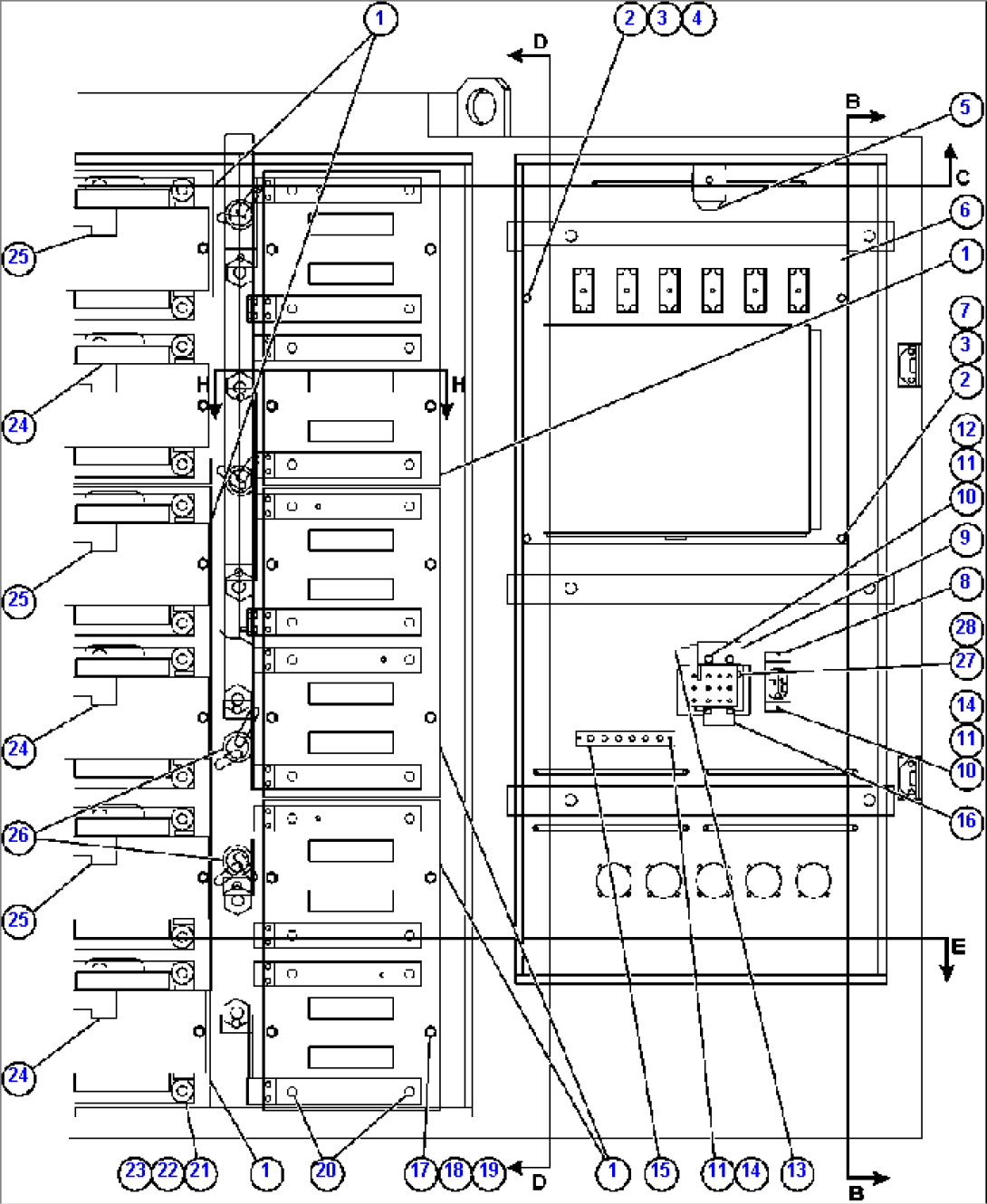

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | GE1299 | BASE ASSEMBLY | ||
| 1 | BF3902 | PANEL, SNUBBER RESISTOR | ||
| 1 | GE1247 | BAR, BUS | ||
| 2 | VE4648 | WASHER - 5/16" | ||
| 3 | VE4696 | LOCKWASHER - 5/16" | ||
| 4 | VE5013 | NUT | ||
| 5 | GE0175 | LAMP, SERVICE | ||
| 6 | GE0856 | ICP PANEL (SEE INDEX) | ||
| 7 | BF4222 | CAPSCREW - 5/16" - 18NC X 3" | ||
| 8 | GE0510 | DIODE ASSEMBLY | ||
| 9 | VE7355 | MODULE, DUAL DIODE | ||
| 10 | VE4655 | WASHER - #10 | ||
| 11 | VE4601 | LOCKWASHER - #10 | ||
| 12 | VJ9161 | CAPSCREW - #10 - 32NF X 1/2" | ||
| 13 | VG7043 | RELAY (SEE INDEX) | ||
| 14 | SF2755 | NUT - #10 - 32NF | ||
| 15 | GE0870 | DIAGRAM, CONSTRUCTION (1) | ||
| 16 | BF4452 | MODULE, SUPPRESSION | ||
| 17 | VX0241 | CAPSCREW - 1/2" - 13NC X 3 1/4" | ||
| 18 | VE4519 | WASHER - 1/2" | ||
| 19 | VE4699 | LOCKWASHER - 1/2" | ||
| 20 | GE0254 | STUD | ||
| 21 | VE5169 | WASHER | ||
| 22 | VE1390 | LOCKWASHER - 5/8" | ||
| 23 | GE0045 | NUT | ||
| 24 | GE0939 | GTO PANEL, POSITIVE PHASE MODULE | ||
| 24 | GE1305 | GATE DRIVE | ||
| 25 | GE0940 | GTO PANEL, NEGATIVE PHASE MODULE | ||
| 25 | GE1305 | GATE DRIVE | ||
| 26 | GE0240 | GROMMET, RUBBER | ||
| 27 | TD1549 | NUT - 1/4" - 20NC | ||
| 28 | DC3584 | LOCKWASHER - 1/4" | ||
| NS|33 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|34 | (SEE PRECEDING AND FOLLOWING PAGE FOR VIEWS OF | |||
| NS|35 | A-A; B-B; C-C; D-D & H-H.) |
