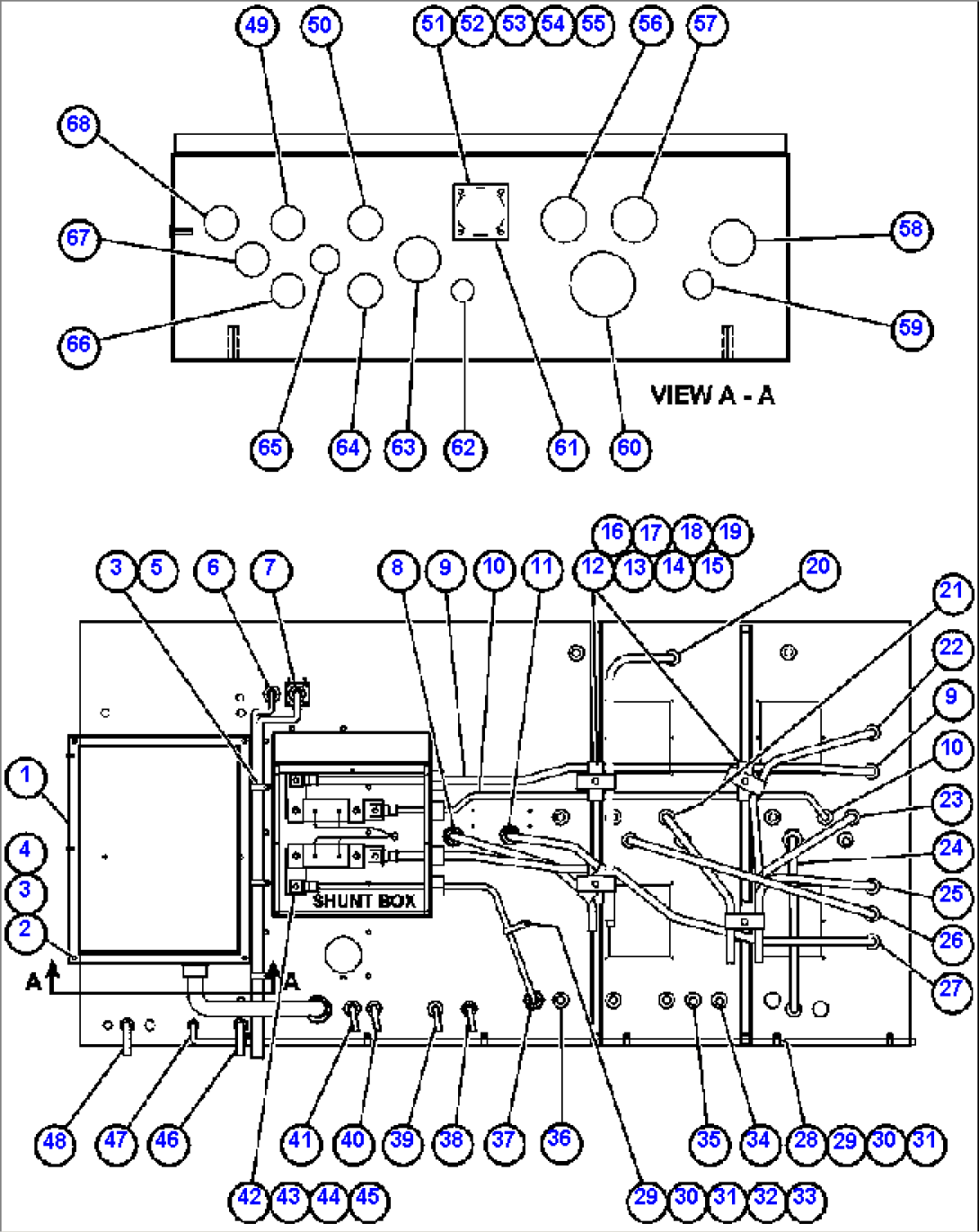

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK3500 | BOX, JUNCTION (SEE INDEX) | ||
| 2 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 3 | TR4436 | FLAT WASHER - 3/8" | ||
| 4 | TC1231 | LOCKWASHER - 3/8" | ||
| 5 | VN8565 | CLAMP | ||
| 6 | CH2550 | CABLE - 74AA | ||
| 7 | CH2562 | CABLE - 71J | ||
| 8 | CH2564 | CABLE - 74 | ||
| 9 | CH3150 | CABLE - 7J1RS | ||
| 10 | CH3185 | CABLE - 7TR10 | ||
| 11 | CH2572 | CABLE - 7J4 | ||
| 12 | VA0609 | SPACER | ||
| 13 | EB9886 | STUD | ||
| 14 | ED8937 | CLEAT, CABLE | ||
| 15 | MM0464 | FLAT WASHER - M16 | ||
| 16 | MM0474 | LOCKWASHER - M16 | ||
| 17 | MM0181 | NUT - M16 X 2.00 | ||
| 18 | EC1091 | STUD | ||
| 19 | ED8936 | CLEAT, CABLE | ||
| 20 | CH3177 | CABLE - 7GA2 | ||
| 21 | CH3171 | CABLE - 7J2 | ||
| 22 | CH3170 | CABLE - 7J1R | ||
| 23 | CH3169 | CABLE - 7TR10 | ||
| 24 | CH3155 | CABLE - 7J30 | ||
| 25 | CH3174 | CABLE - 7J1L | ||
| 26 | CH3172 | CABLE - 7J8 | ||
| 27 | CH3152 | CABLE - 7J1LS | ||
| 28 | TG2562 | CLAMP | ||
| 29 | MM0460 | FLAT WASHER - M8 | ||
| 30 | MM0470 | LOCKWASHER - M8 | ||
| 31 | MM0177 | NUT - M8 X 1.25 | ||
| 32 | TC6058 | CLAMP | ||
| 33 | MM0030 | CAPSCREW - M8 X 1.25 X 30 | ||
| 34 | CH3173 | CABLE - 7GA1 | ||
| 35 | CH3176 | CABLE - 7GA1 | ||
| 36 | CH3175 | CABLE - 7TR9 | ||
| 37 | CH3184 | CABLE - 7TR9 | ||
| 38 | CH2560 | CABLE - 7J9 | ||
| 39 | CH2541 | CABLE - 71G | ||
| 40 | CH2563 | CABLE - 74D | ||
| 41 | CH2561 | CABLE - 75X | ||
| 42 | VC1387 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 43 | TR6008 | FLAT WASHER - 1/2" | ||
| 44 | TR5445 | LOCKWASHER - 1/2" | ||
| 45 | TR6643 | NUT - 1/2" - 13NC | ||
| 46 | ED3913 | CABLE | ||
| 47 | EK8657 | HARNESS - ERR (CONTACTOR BOX TO CONTROL CABINET) | ||
| 48 | EJ9537 | CABLE | ||
| 49 | EJ5520 | HARNESS, L.H. DECK | ||
| 50 | EJ6458 | HARNESS, R.H. DECK | ||
| 51 | ED5353 | COVER | ||
| 52 | MM0335 | SCREW, MACHINE - M3.5 X .6 X 12 | ||
| 53 | 30289R1 | FLAT WASHER - M4 | ||
| 54 | MM0377 | LOCKWASHER - M3.5 | ||
| 55 | MM0371 | NUT - M3.5 X .6 | ||
| 56 | EG1414 | HARNESS, LEFT FRAME RAIL | ||
| 57 | EJ9237 | HARNESS, RIGHT FRAME RAIL | ||
| 58 | VW4875 | BUTTON, PLUG | ||
| 59 | EJ6351 | HARNESS | ||
| 60 | EL7394 | HARNESS | ||
| 61 | ED2922 | GASKET | ||
| 62 | EG0008 | HARNESS | ||
| 63 | EJ7919 | HARNESS | ||
| 64 | EJ7924 | HARNESS | ||
| 65 | EF8498 | HARNESS | ||
| 66 | EF7368 | HARNESS | ||
| 67 | EJ5653 | HARNESS | ||
| 68 | YA3236 | HARNESS |
