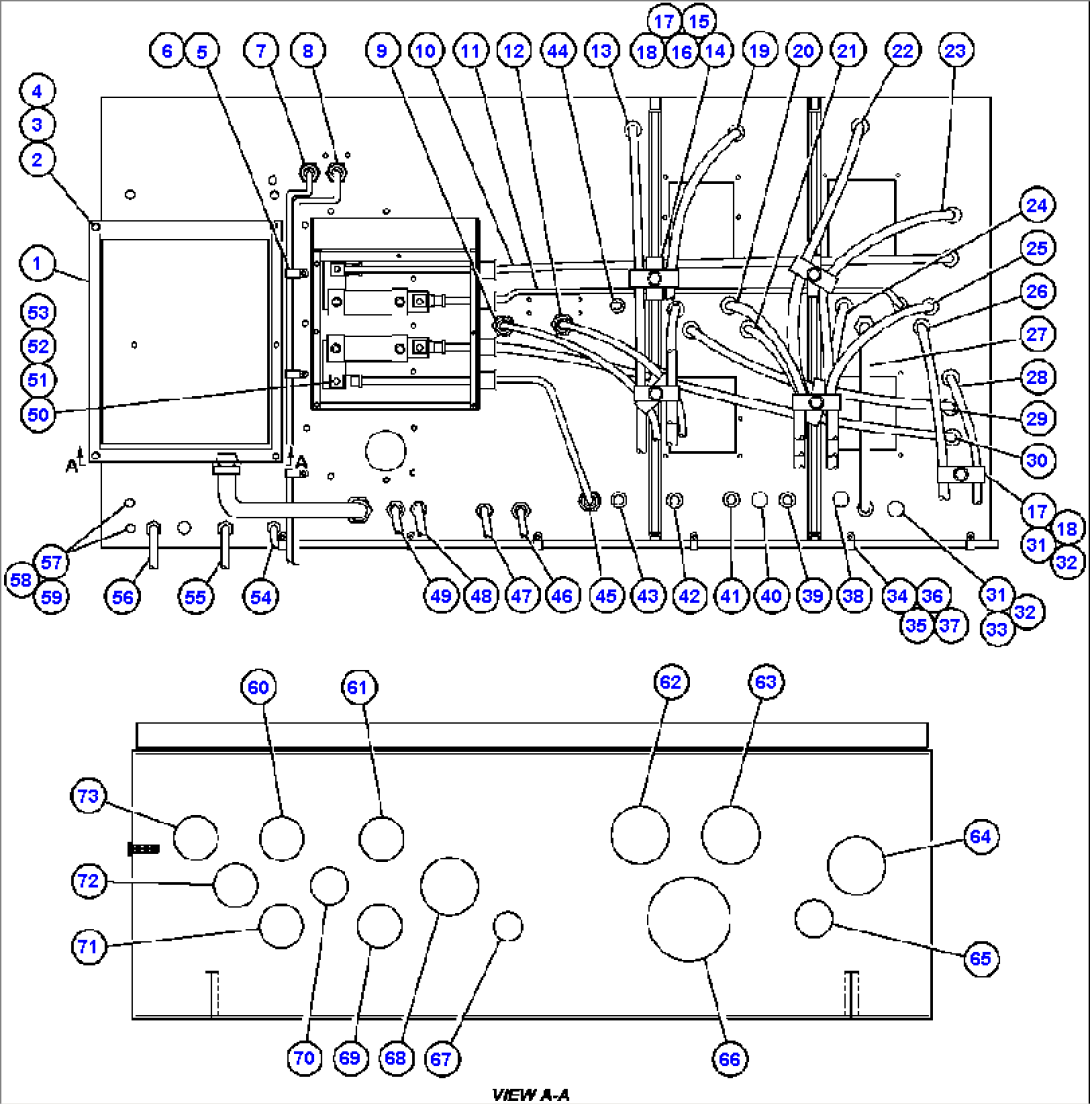

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG1406 | JUNCTION BOX ASSM (SEE INDEX) | ||
| 2 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 3 | TC1231 | LOCKWASHER - 3/8" | ||
| 4 | TC1233 | NUT - 3/8" - 16NC | ||
| 5 | VN8565 | CLAMP | ||
| 6 | TR4436 | FLAT WASHER - 3/8" | ||
| 7 | CH2550 | CABLE - 74AA | ||
| 8 | CH2562 | CABLE - 71J | ||
| 9 | CH2572 | CABLE - 7J4 | ||
| 10 | CH3150 | CABLE - 7J1RS | ||
| 11 | CH3185 | CABLE - 7TR10 | ||
| 12 | CH2564 | CABLE - 74 | ||
| 13 | CH3167 | CABLE - 7RC5 | ||
| 14 | ED8937 | CLEAT, CABLE | ||
| 15 | EB9886 | STUD, THREADED | ||
| 16 | MM0464 | FLAT WASHER - M16 | ||
| 17 | MM0474 | LOCKWASHER - M16 | ||
| 18 | MM0181 | NUT - M16 X 2.00 | ||
| 19 | CH3177 | CABLE - 7GA2 | ||
| 20 | CH3171 | CABLE - 7J2 | ||
| 21 | CH3162 | CABLE - 7J8 | ||
| 22 | CH3163 | CABLE - 7J7 | ||
| 23 | CH3170 | CABLE - 7J1R | ||
| 24 | CH3166 | CABLE - 7J18 | ||
| 25 | CH3169 | CABLE - 7TR10 | ||
| 26 | CH2698 | CABLE - 7TR2 - PANTOGRAPH | ||
| 27 | CH3155 | CABLE - 7J30 | ||
| 28 | CH3174 | CABLE - 7J1L | ||
| 29 | CH3172 | CABLE - 7J8 | ||
| 30 | CH3152 | CABLE - 7J1LS | ||
| 31 | EB9885 | STUD, THREADED | ||
| 32 | MM0706 | FLAT WASHER - M16 | ||
| 33 | CH3157 | CABLE - 7J30 | ||
| 34 | TG2562 | CLAMP | ||
| 35 | MM0460 | FLAT WASHER - M8 | ||
| 36 | MM0470 | LOCKWASHER - M8 | ||
| 37 | MM0177 | NUT - M8 X 1.25 | ||
| 38 | CH3156 | CABLE - 7GA1 - TO BLOWN GRID | ||
| 39 | CH3173 | CABLE - 7GA1 - TO LH WHEEL MOTOR | ||
| 40 | CH3176 | CABLE - 7GA1 - TO RECTIFIER | ||
| 41 | CH3159 | CABLE - 7RC4 | ||
| 42 | CH3158 | CABLE - 7RC6 | ||
| 43 | CH3175 | CABLE - 7TR9 | ||
| 44 | CH3129 | CABLE - 7TR2 - PANTOGRAPH | ||
| 45 | CH3184 | CABLE - 7TR9 | ||
| 46 | CH2560 | CABLE - 7J9 | ||
| 47 | CH2541 | CABLE - 71G | ||
| 48 | CH2563 | CABLE - 74D | ||
| 49 | CH2561 | CABLE - 75X | ||
| 50 | VC1387 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 51 | TR5445 | LOCKWASHER - 1/2" | ||
| 52 | TR6008 | FLAT WASHER - 1/2" | ||
| 53 | TR6643 | NUT - 1/2" - 13NC | ||
| 54 | EG1412 | HARNESS - ERR | ||
| 55 | ED3913 | CABLE, CONDUIT (WHEEL SPEED & TEMP SENSOR WRG) | ||
| 56 | EG1411 | CABLE - DTS | ||
| 57 | VG4399 | BUSHING, CONDULET | ||
| 58 | VM5587 | LOCKNUT | ||
| 59 | VM5736 | GRIP, CORD | ||
| 60 | EG1418 | HARNESS - LH DECK | ||
| 61 | EG1417 | HARNESS - RH DECK | ||
| 62 | EG1414 | HARNESS - LH FRAME RAIL | ||
| 63 | EG1421 | HARNESS - RH FRAME RAIL | ||
| 64 | VW4875 | BUTTON, PLUG | ||
| 65 | EF8495 | HARNESS - P229 CAB POWER | ||
| 66 | EG1413 | HARNESS - JUNCTION BOX INTERFACE | ||
| 67 | EG0008 | HARNESS - ACCUMULATOR PRESSURE SWITCH | ||
| 68 | EF8497 | HARNESS - P218 CAB INTERFACE | ||
| 69 | EG2433 | HARNESS - CAB/SYSTEM DIAGNOSTIC | ||
| 70 | EF8498 | HARNESS - P233 CAB INTERFACE | ||
| 71 | EF3689 | HARNESS - ENGINE | ||
| 72 | EF8492 | HARNESS - BRAKE CABINET TO JUNCTION BOX | ||
| 73 | ED5414 | HARNESS - ENGINE/CONTROL CABINET |
