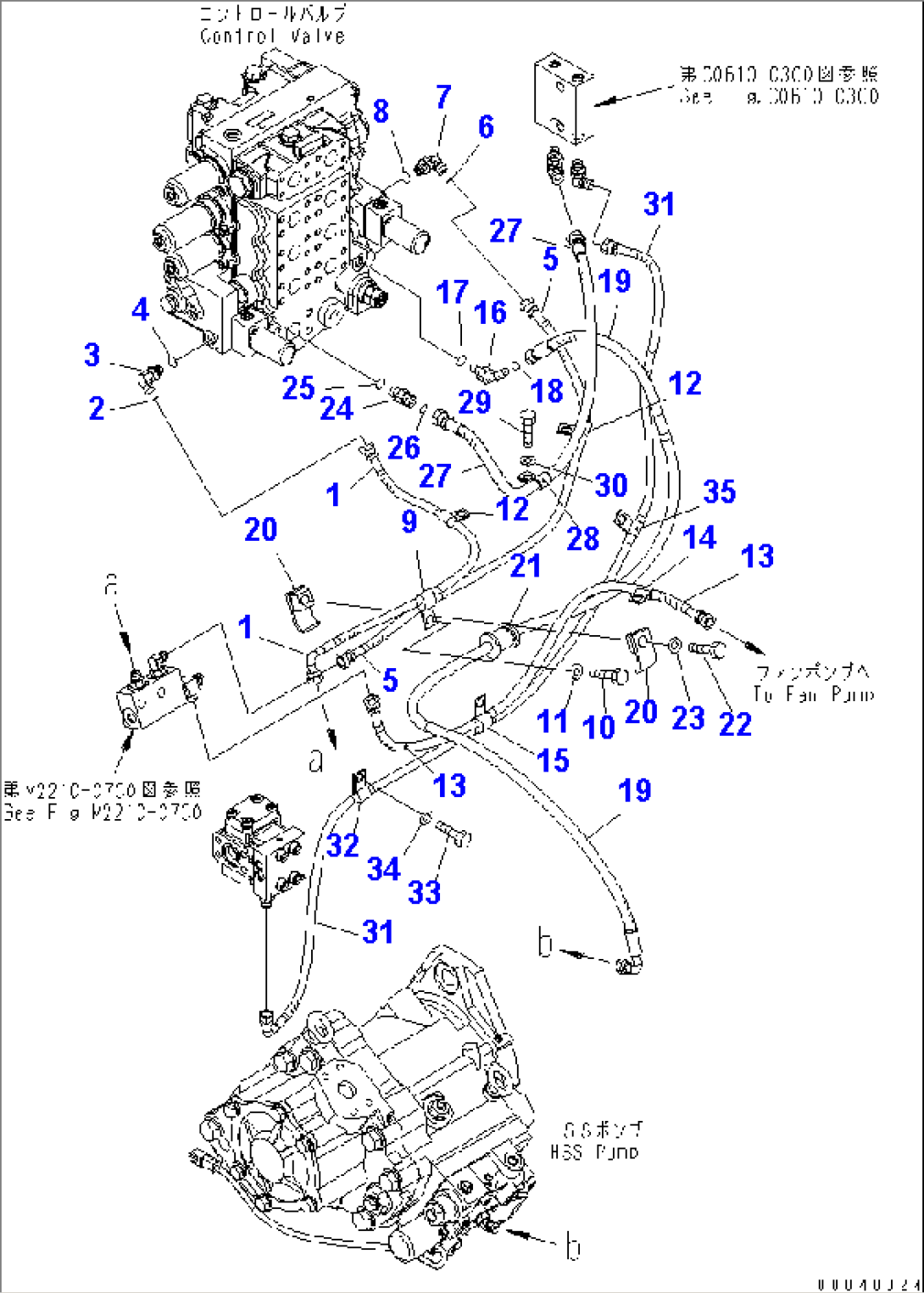

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02763-00206 | HOSE | 1201- | |
| 2 | 02896-11008 | O-RING | 1201- | |
| 3 | 02782-10210 | ELBOW | 1201- | |
| 4 | 07002-11423 | O-RING | 1201- | |
| 5 | 02762-00209 | HOSE | 1201- | |
| 6 | 02896-11008 | O-RING | 1201- | |
| 7 | 02782-10210 | ELBOW | 1201- | |
| 8 | 07002-11423 | O-RING | 1201- | |
| 9 | 04434-51012 | CLIP | 1205- | |
| 9 | 04435-51012 | CLIP | 1201-1204 | |
| 10 | 01010-81230 | BOLT | 1201- | |
| 11 | 01643-31232 | WASHER | 1201- | |
| 12 | 04434-51012 | CLIP | 1201- | |
| 13 | 02762-002A7 | HOSE | 1201- | |
| 14 | 04434-51012 | CLIP | 1201- | |
| 15 | 04435-51012 | CLIP | 1201- | |
| 16 | 154-61-75761 | ELBOW | 1201- | |
| 17 | 07002-11423 | O-RING | 1201- | |
| 18 | 02896-11008 | O-RING | 1201- | |
| 19 | 154-61-71120 | HOSE, 1700MM | 1201- | |
| 20 | 07094-10315 | CLAMP | 1201- | |
| 21 | 07095-00314 | CUSHION | 1201- | |
| 22 | 01010-81265 | BOLT | 1201- | |
| 23 | 01643-31232 | WASHER | 1201- | |
| 24 | 02781-0031D | UNION | 1201- | |
| 25 | 07002-11423 | O-RING | 1201- | |
| 26 | 02896-11009 | O-RING | 1201- | |
| 27 | 02762-00307 | HOSE | 1201- | |
| 28 | 04434-51412 | CLIP | 1201- | |
| 29 | 01010-81230 | BOLT | 1201- | |
| 30 | 01643-31232 | WASHER | 1201- | |
| 31 | 02763-00216 | HOSE | 1201- | |
| 32 | 04434-51012 | CLIP | 1201- | |
| 33 | 01010-81230 | BOLT | 1201- | |
| 34 | 01643-31232 | WASHER | 1201- | |
| 35 | 04434-51012 | CLIP | 1201- |
