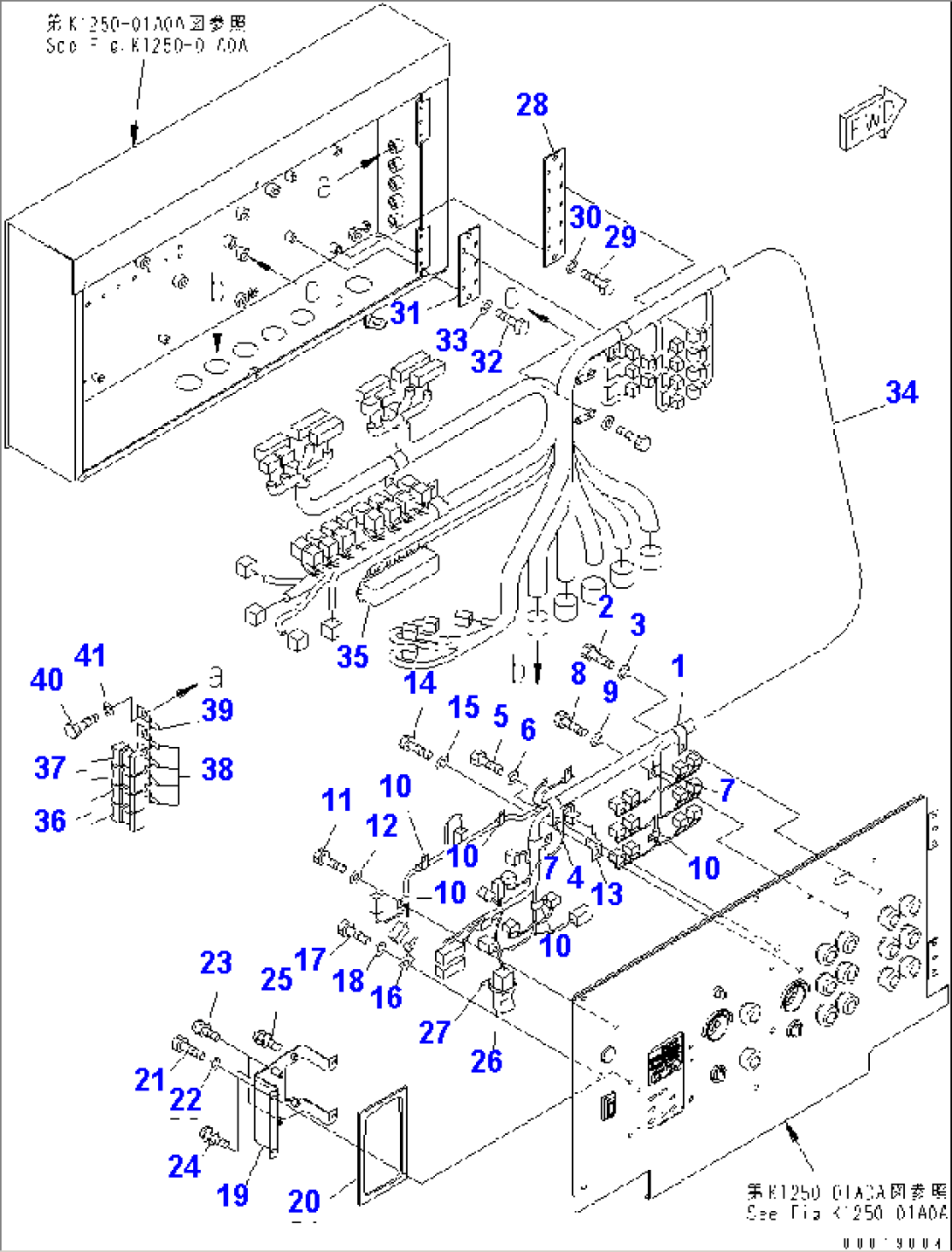

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52711 | CLIP | 1028-@ | |
| 2 | 01010-81016 | BOLT | 1001-@ | |
| 3 | 01643-31032 | WASHER | 1001-@ | |
| 4 | 08036-03014 | CLIP | 1028-@ | |
| 5 | 01010-81016 | BOLT | 1001-@ | |
| 6 | 01643-31032 | WASHER | 1001-@ | |
| 7 | 08036-01814 | CLIP | 1001-@ | |
| 8 | 01010-81016 | BOLT | 1001-@ | |
| 9 | 01643-31032 | WASHER | 1001-@ | |
| 10 | 08036-01014 | CLIP | 1001-@ | |
| 11 | 01010-81016 | BOLT | 1001-@ | |
| 12 | 01643-31032 | WASHER | 1001-@ | |
| 13 | 08053-01510 | CLIP | 1001-@ | |
| 14 | 01010-81016 | BOLT | 1001-@ | |
| 15 | 01643-31032 | WASHER | 1001-@ | |
| 16 | 08193-20010 | CLIP | 1001-@ | |
| 17 | 01010-81016 | BOLT | 1001-@ | |
| 18 | 01643-31032 | WASHER | 1001-@ | |
| 19 | 8295-06-1340 | BRACKET | 1001-@ | |
| 20 | 8247-06-7320 | PACKING | 1001-@ | |
| 21 | 01010-80612 | BOLT | 1001-@ | |
| 22 | 01643-30623 | WASHER | 1001-@ | |
| 23 | 01023-10630 | SCREW | 1001-@ | |
| 24 | 01023-10620 | SCREW | 1001-@ | |
| 25 | 01023-10614 | SCREW | 1001-@ | |
| 26 | 208-06-61410 | SWITCH | 1001-@ | |
| 27 | 08034-20519 | BAND | 1001-@ | |
| 28 | 8295-06-1850 | PLATE | 1001-@ | |
| 29 | 01010-80816 | BOLT | 1001-@ | |
| 30 | 01643-30823 | WASHER | 1001-@ | |
| 31 | 8295-06-1860 | PLATE | 1001-@ | |
| 32 | 01010-80816 | BOLT | 1001-@ | |
| 33 | 01643-30823 | WASHER | 1001-@ | |
| 34 | 8295-06-1274 | WIRING HARNESS | 1022-1067 | |
| 21J-06-13661 | DIODE | 1001-@ | ||
| 08041-01000 | FUSE, 10A | 1001-@ | ||
| 08041-02000 | FUSE, 20A | 1001-@ | ||
| 08041-02500 | FUSE, 25A | 1001-@ | ||
| 08041-03000 | FUSE, 30A | 1001-@ | ||
| 35 | 08044-01500 | BOX | 1001-@ | |
| 36 | 8295-06-1890 | RESISTOR | 1001-@ | |
| 37 | 8295-06-1910 | DIODE | 1028-@ | |
| 38 | 08193-30010 | CLIP | 1028-@ | |
| 39 | 08193-20010 | CLIP | 1028-@ | |
| 40 | 01010-81016 | BOLT | 1028-@ | |
| 41 | 01643-31032 | WASHER | 1028-@ |
