| Item | Part No. | Part Name | Qty | Serial No. |
| 700-91-34000 | VALVE ASS'Y | 3034- | ||

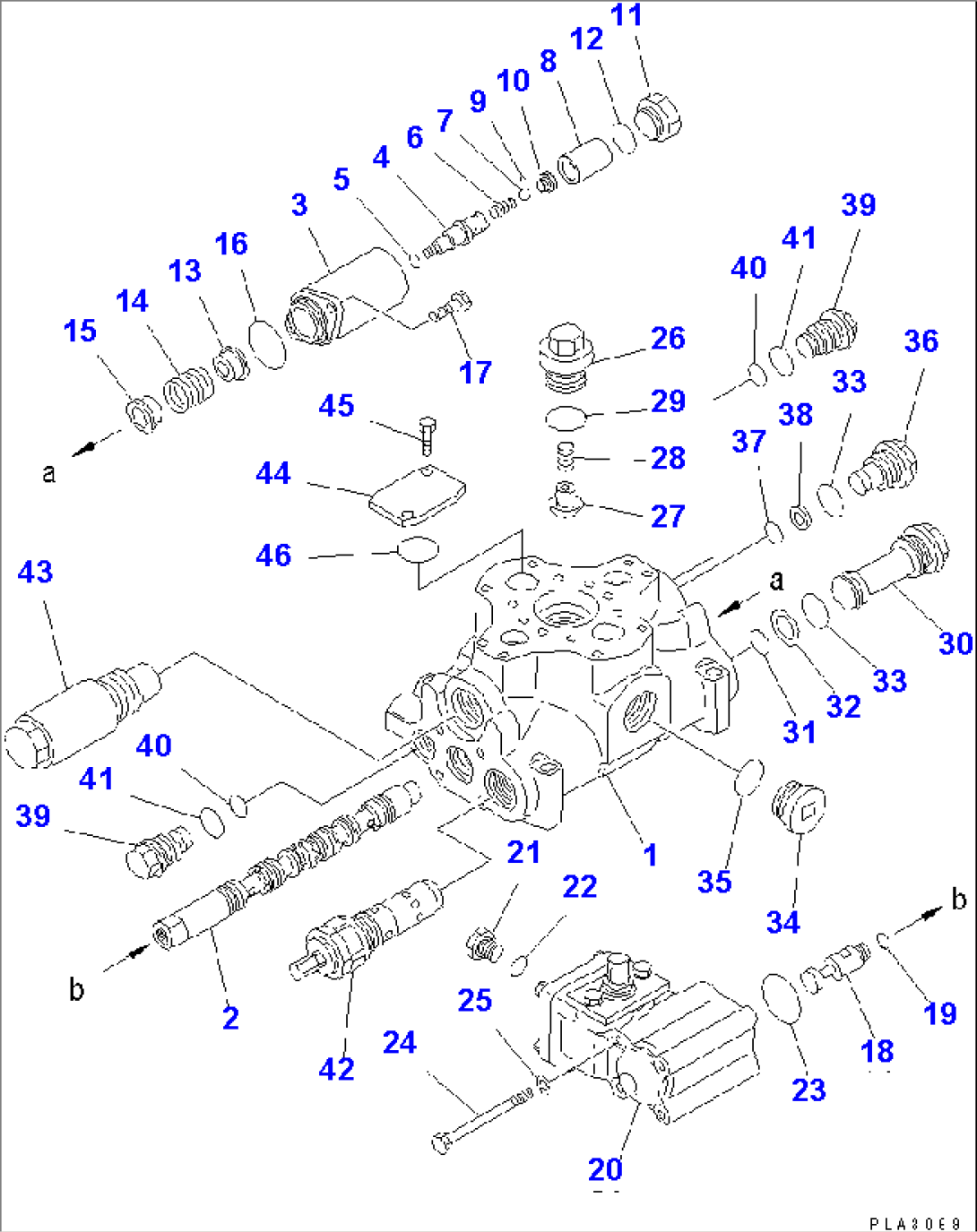

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1661-01A0 TO Y1661-03A0. | ||||
| 1 | \6\ | BODY,VALVE | 3034- | |
| 2 | \6\ | SPOOL | 3034- | |
| 3 | 700-91-11230 | CASE | 3034- | |
| 4 | 700-91-34130 | PLUG | 3034- | |
| 5 | 07000-11006 | O-RING | 3034- | |
| 6 | 700-82-11380 | SPRING | 3034- | |
| 7 | 04260-00952 | BALL | 3034- | |
| 8 | 700-91-34140 | DETENT | 3034- | |
| 9 | 700-84-11730 | BALL | 3034- | |
| 10 | 700-21-11210 | PLUG | 3034- | |
| 11 | 700-92-11430 | PLUG | 3034- | |
| 12 | 07002-03034 | O-RING | 3034- | |
| 13 | 700-91-11380 | RETAINER | 3034- | |
| 14 | 700-91-11390 | SPRING | 3034- | |
| 15 | 700-91-11260 | RETAINER | 3034- | |
| 16 | 07000-03042 | O-RING | 3034- | |
| 17 | 01252-30820 | BOLT | 3034- | |
| 18 | 700-93-11930 | JOINT | 3034- | |
| 19 | 07002-11423 | O-RING | 3034- | |
| 20 | (702-13-21601) | ROTARY SEAL ASS'Y | 3034- | |
| 21 | 700-91-11290 | PLUG | 3034- | |
| 22 | 07000-02020 | O-RING | 3034- | |
| 23 | 07000-03042 | O-RING | 3034- | |
| 24 | 430-07-23560 | BOLT | 3034- | |
| 25 | 01602-20825 | WASHER,SPRING | 3034- | |
| 26 | 700-93-11481 | PLUG | 3034- | |
| 27 | 700-93-11461 | VALVE,CHECK | 3034- | |
| 28 | 700-93-11471 | SPRING | 3034- | |
| 29 | 07002-13634 | O-RING | 3034- | |
| 30 | 700-93-11310 | PLUG | 3034- | |
| 31 | 700-93-11320 | O-RING | 3034- | |
| 32 | 700-93-11330 | RING,BACK-UP | 3034- | |
| 33 | 07002-03634 | O-RING | 3034- | |
| 34 | 07040-13618 | PLUG | 3034- | |
| 35 | 07002-13634 | O-RING | 3034- | |
| 36 | 700-94-11260 | PLUG | 3034- | |
| 37 | 07000-12018 | O-RING | 3034- | |
| 38 | 07001-02018 | RING,BACK-UP | 3034- | |
| 39 | 700-22-11360 | PLUG | 3034- | |
| 40 | 07000-02014 | O-RING | 3034- | |
| 41 | 07002-02434 | O-RING | 3034- | |
| 42 | (700-93-56000) | VALVE ASS'Y,RELIEF | 3034- | |
| 43 | (700-90-74001) | VALVE ASS'Y,SUCTION | 3034- | |
| 44 | 700-93-11940 | FLANGE | 3034- | |
| 45 | 01010-81025 | BOLT | 3034- | |
| 46 | 07430-71380 | O-RING | 3034- |
