| Item | Part No. | Part Name | Qty | Serial No. |

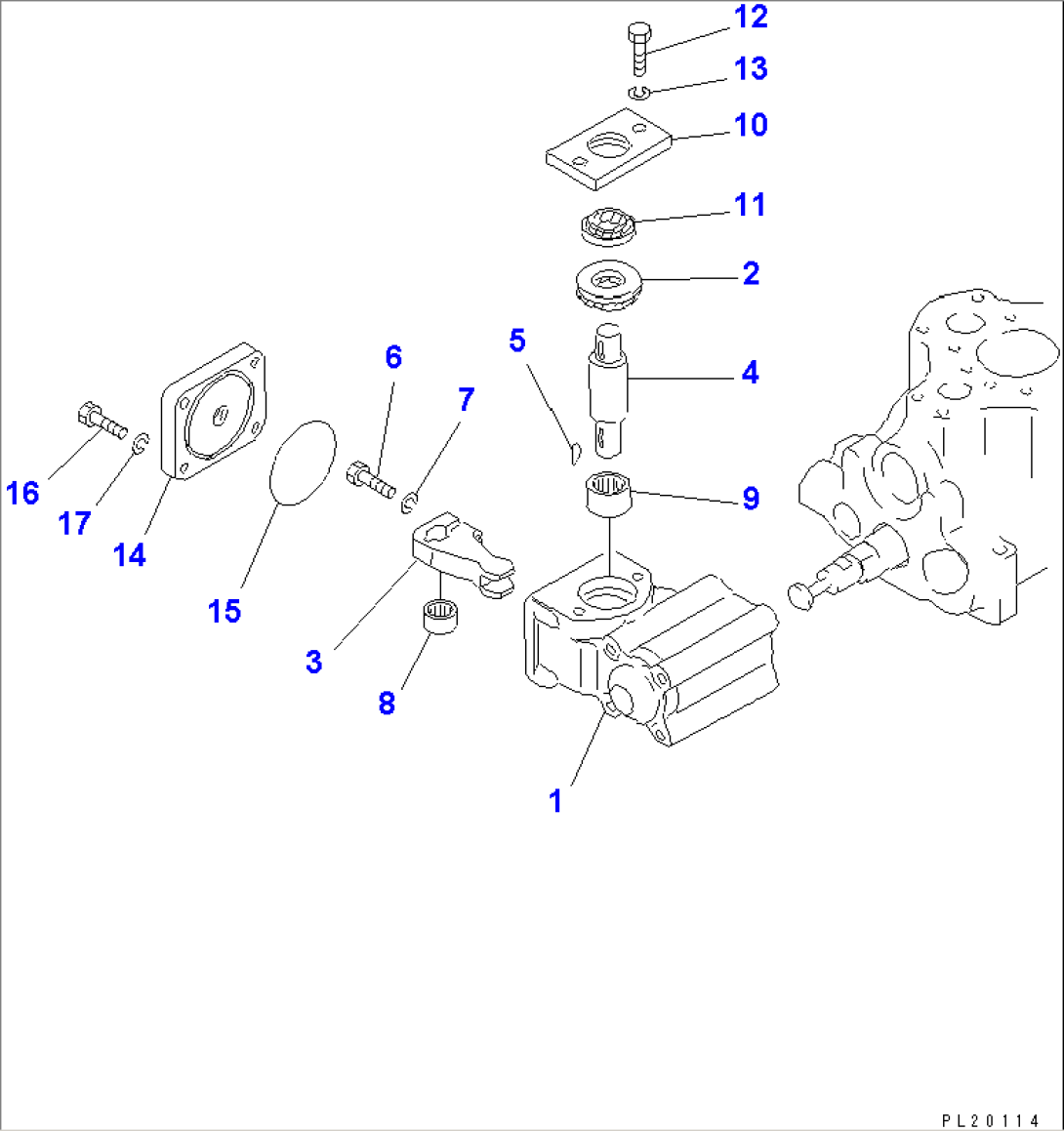

| (700-91-34000) | VALVE ASS'Y | 3034- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1661-01A0 TO Y1661-03A0. | ||||
| 702-13-21601 | ROTARY SEAL ASS'Y | 3034- | ||
| 1 | 702-13-21610 | CASE | 3034- | |
| 2 | 07430-11161 | SEAL,OIL | 3034- | |
| 3 | 702-13-21642 | LEVER | 3034- | |
| 4 | 702-13-21650 | SHAFT | 3034- | |
| 5 | 04010-00519 | KEY | 3034- | |
| 6 | 01010-80835 | BOLT | 3034- | |
| 7 | 01602-00825 | WASHER,SPRING | 3034- | |
| 8 | 702-13-21620 | BEARING | 3034- | |
| 9 | 06120-02520 | BEARING | 3034- | |
| 10 | 701-51-32170 | PLATE | 3034- | |
| 11 | 07016-00256 | SEAL | 3034- | |
| 12 | 01010-80820 | BOLT | 3034- | |
| 13 | 01602-00825 | WASHER,SPRING | 3034- | |
| 14 | 702-13-21630 | COVER | 3034- | |
| 15 | 07000-02065 | O-RING | 3034- | |
| 16 | 01010-80830 | BOLT | 3034- | |
| 17 | 01602-20825 | WASHER,SPRING | 3034- |
