| Item | Part No. | Part Name | Qty | Serial No. |

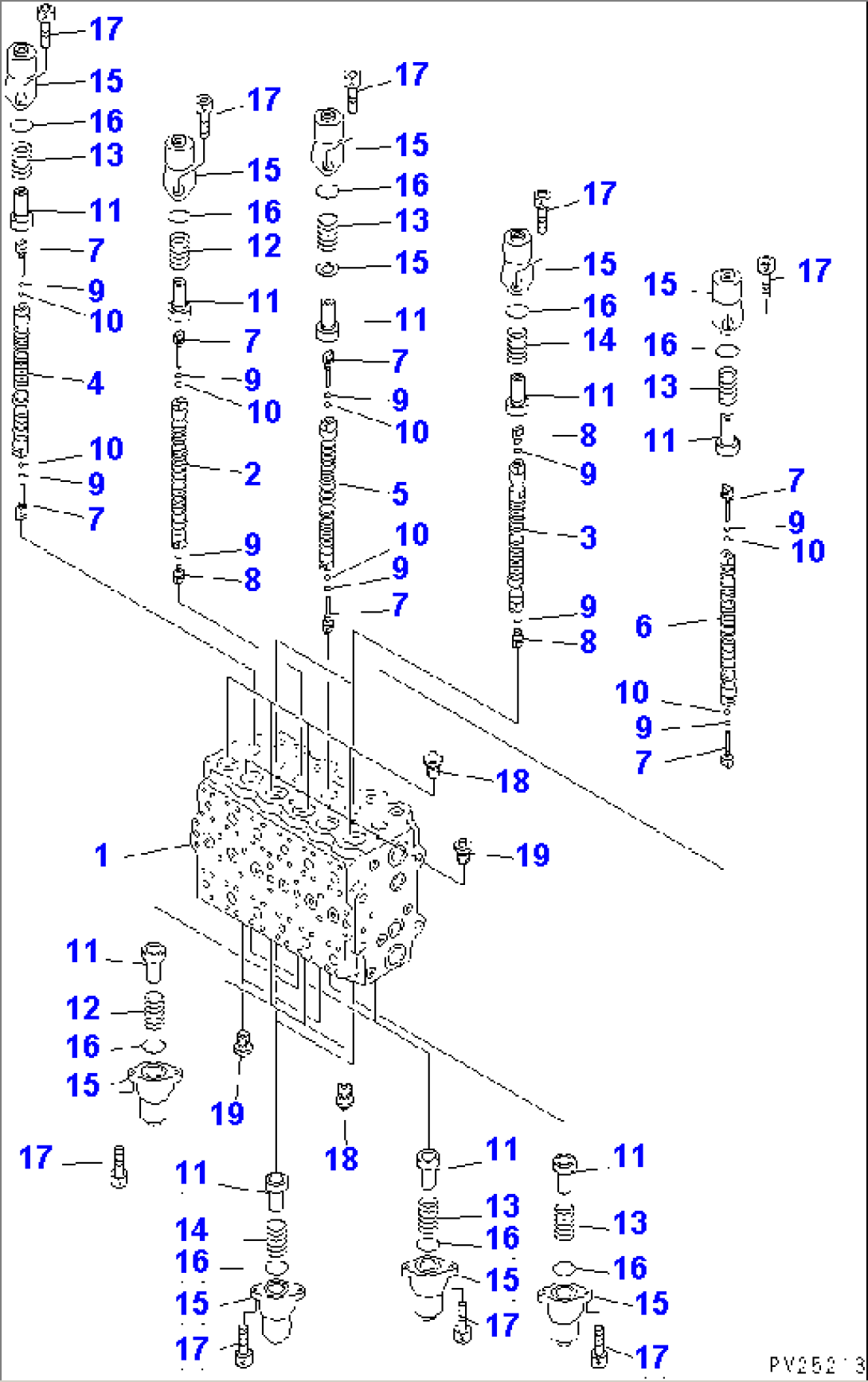

| 723-4A-10200 | VALVE ASS'Y | 1002- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 TO 6211. | ||||
| 1 | \6\ | BLOCK,VALVE | 1002- | |
| 2 | \6\ | SPOOL | 1002- | |
| 3 | \6\ | SPOOL | 1002- | |
| 4 | \6\ | SPOOL | 1002- | |
| 5 | \6\ | SPOOL | 1002- | |
| 6 | \6\ | SPOOL | 1002- | |
| 7 | 723-46-15130 | PLUG | 1002- | |
| 8 | 723-46-15140 | PLUG | 1002- | |
| 9 | 07002-10823 | O-RING | 1002- | |
| 10 | 708-7T-16460 | BALL | 1002- | |
| 11 | 723-46-15120 | RETAINER | 1002- | |
| 12 | 723-46-14110 | SPRING | 1002- | |
| 13 | 723-46-14170 | SPRING | 1002- | |
| 14 | 723-46-14131 | SPRING | 1002- | |
| 15 | 723-46-15110 | CASE | 1002- | |
| 16 | 07430-71380 | O-RING | 1002- | |
| 17 | 01252-60820 | BOLT | 1002- | |
| 18 | 723-46-41110 | VALVE | 1002- | |
| 19 | 723-46-41120 | VALVE | 1002- |
