| Item | Part No. | Part Name | Qty | Serial No. |
| (\2\709-12-13604) | CONTROL VALVE | (52001-52017) | ||

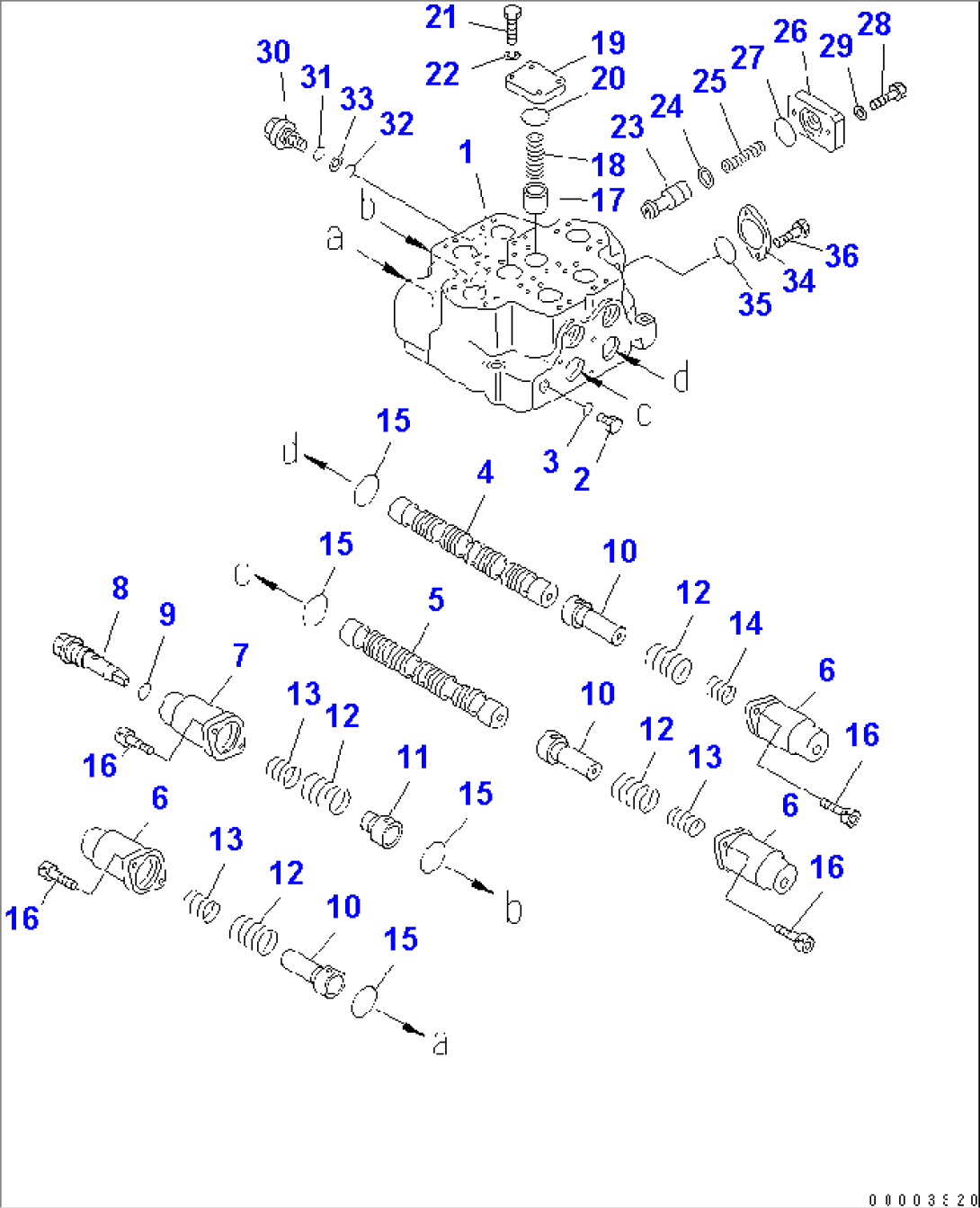

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 AND Y1662-02A0. | ||||
| \6\ | VALVE SUB ASS'Y | 52001-52017 | ||
| 1 | \6\ | BLOCK,VALVE | 52001-52017 | |
| 2 | 700-22-11370 | PLUG | 52001-52017 | |
| 3 | 07002-12434 | O-RING | 52001-52017 | |
| 4 | \6\ | SPOOL | 52001-52017 | |
| 5 | \6\ | SPOOL | 52001-52017 | |
| 6 | 709-14-11520 | CASE | 52001-52017 | |
| 7 | 709-12-12780 | CASE | 52001-52017 | |
| 8 | 709-12-12810 | PLUG | 52001-52017 | |
| 9 | 07002-14234 | O-RING | 52001-52017 | |
| 10 | 709-14-11530 | RETAINER | 52001-52017 | |
| 11 | 709-12-12790 | RETAINER | 52001-52017 | |
| 12 | 709-14-11550 | SPRING | 52001-52017 | |
| 13 | 709-12-12270 | SPRING | 52001-52017 | |
| 14 | 709-12-12280 | SPRING | 52001-52017 | |
| 15 | 07000-12065 | O-RING | 52001-52017 | |
| 16 | 01252-61035 | BOLT | 52001-52017 | |
| 17 | 709-12-11411 | VALVE,CHECK | 52001-52017 | |
| 18 | 709-12-11430 | SPRING | 52001-52017 | |
| 19 | 709-12-12440 | PLATE | 52001-52017 | |
| 20 | 07000-13048 | O-RING | 52001-52017 | |
| 21 | 01010-81250 | BOLT | 52001-52017 | |
| 22 | 01602-21236 | WASHER | 52001-52017 | |
| 23 | 709-12-11590 | VALVE | 52001-52017 | |
| 24 | 709-12-11520 | SEAL | 52001-52017 | |
| 25 | 709-12-11530 | SPRING | 52001-52017 | |
| 26 | 709-12-11570 | FLANGE | 52001-52017 | |
| 27 | 07000-13048 | O-RING | 52001-52017 | |
| 28 | 01010-61460 | BOLT | 52001-52017 | |
| 29 | 01643-31445 | WASHER | 52001-52017 | |
| 30 | 700-94-11260 | PLUG | 52001-52017 | |
| 31 | 07002-13634 | O-RING | 52001-52017 | |
| 32 | 07000-12018 | O-RING | 52001-52017 | |
| 33 | 07001-02018 | RING,BACK-UP | 52001-52017 | |
| 34 | 709-12-11611 | PLATE | 52001-52017 | |
| 35 | 07000-12060 | O-RING | 52001-52017 | |
| 36 | 01010-61425 | BOLT | 52001-52017 |
