| Item | Part No. | Part Name | Qty | Serial No. |
| (42A-64-13110) | VALVE ASS'Y | 10001- | ||

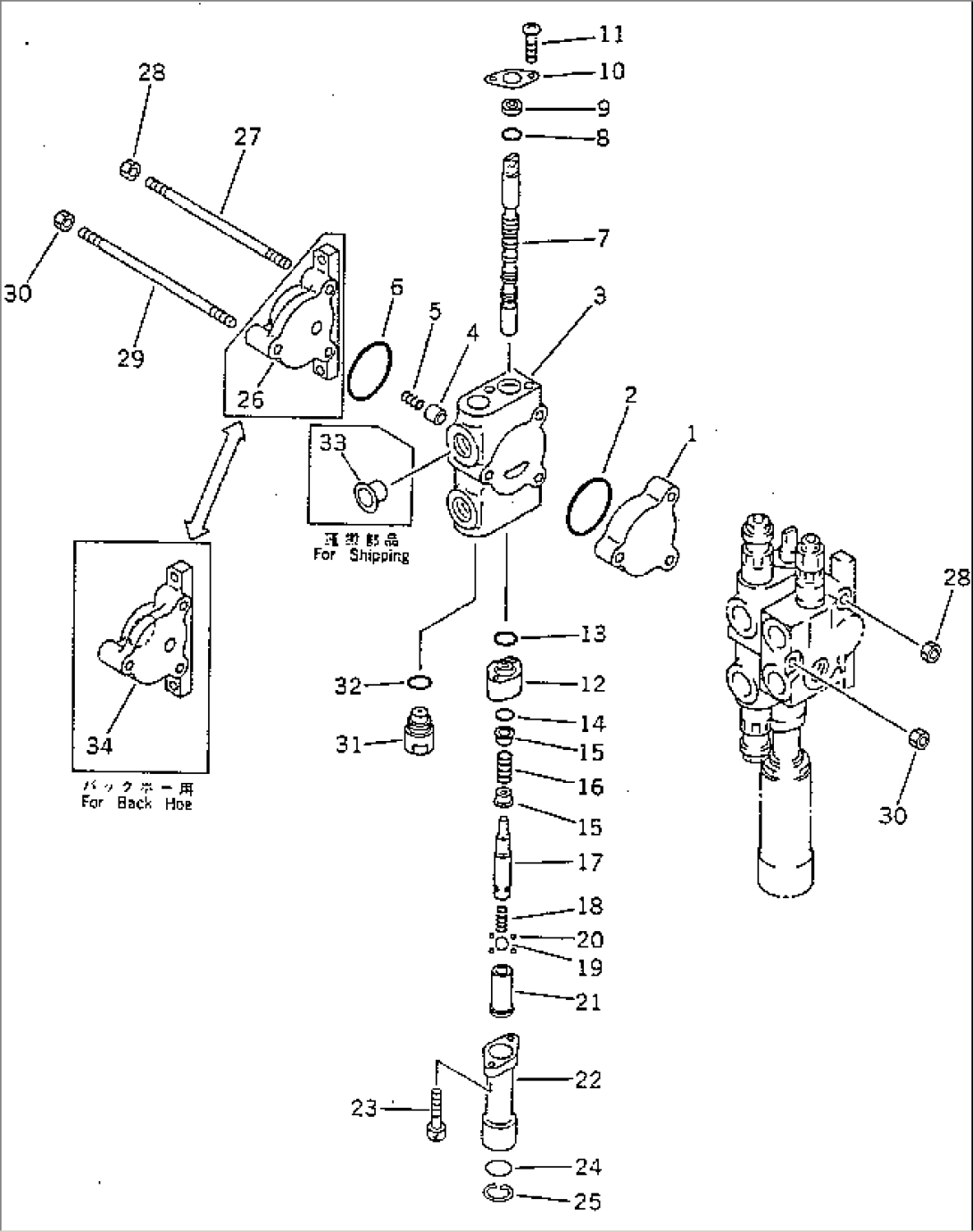

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 AND 6202. | ||||
| 42A-64-13190 | SPACER ASS'Y | 10001- | ||
| 1 | \6\ | SPACER | 10001- | |
| 2 | 42A-64-13740 | O-RING | 10001- | |
| 42A-64-13210 | SPOOL SECTION ASS'Y | 10001- | ||
| 3 | \6\ | HOUSING | 10001- | |
| 4 | 42A-64-13420 | POPPET | 10001- | |
| 5 | 42A-64-13430 | SPRING | 10001- | |
| 6 | 42A-64-13740 | O-RING | 10001- | |
| 7 | \6\ | SPOOL | 10001- | |
| 8 | 42A-64-13710 | O-RING | 10001- | |
| 9 | 42A-64-13720 | WIPER | 10001- | |
| 10 | 42A-64-13330 | PLATE | 10001- | |
| 11 | 42A-64-13440 | SCREW | 10001- | |
| 12 | 42A-64-13530 | SPACER | 10001- | |
| 13 | 42A-64-13730 | O-RING | 10001- | |
| 14 | 42A-64-13710 | O-RING | 10001- | |
| 15 | 42A-64-13380 | SHEET,SPRING | 10001- | |
| 16 | 42A-64-13570 | SPRING | 10001- | |
| 17 | 42A-64-13560 | PIN | 10001- | |
| 18 | 42A-64-13580 | SPRING | 10001- | |
| 19 | 42A-64-13590 | BALL | 10001- | |
| 20 | 42A-64-13610 | BALL | 10001- | |
| 21 | 42A-64-13550 | SLEEVE | 10001- | |
| 22 | 42A-64-13540 | CAP | 10001- | |
| 23 | 42A-64-13640 | BOLT,HEAD | 10001- | |
| 24 | 42A-64-13620 | SPACER | 10001- | |
| 25 | 42A-64-13630 | RING,SNAP | 10001- | |
| 26 | 42A-64-13170 | OUTLET SECTION ASS'Y,OUTLET | 10001- | |
| 27 | 42A-64-13130 | ROD,TIE | 10001- | |
| 28 | 42A-64-13120 | NUT | 10001- | |
| 29 | 42A-64-13150 | ROD,TIE | 10001- | |
| 30 | 42A-64-13140 | NUT | 10001- | |
| 31 | 42A-64-13240 | VALVE ASS'Y,RELIEF | 10001- | |
| 32 | 42A-64-13290 | O-RING | 10001- | |
| 33 | 42A-64-13250 | PLUG,(FOR SHIPPING) | 10001- | |
| 34 | 42A-855-1350 | OUTLET SECTION ASS'Y,OUTLET (FOR BACKHOE) | 10001- |
