| Item | Part No. | Part Name | Qty | Serial No. |
| (723-62-12100) | CONTROL VALVE | 3034- | ||

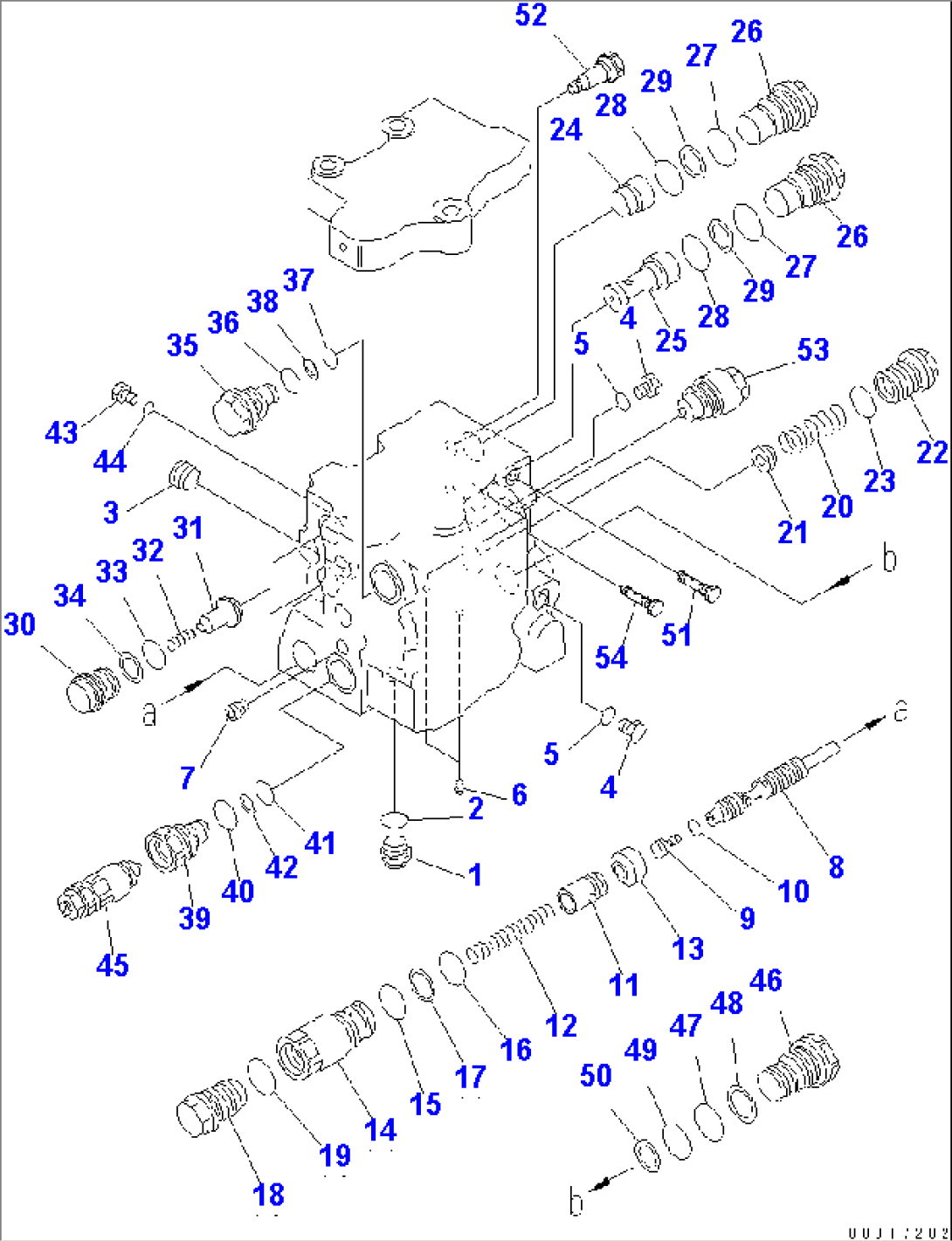

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-04A0. | ||||
| 1 | 709-74-91860 | PLUG | 3034- | |
| 2 | 07002-12434 | O-RING | 3034- | |
| 3 | 07043-70617 | PLUG | 3034- | |
| 4 | 07040-11409 | PLUG | 3034- | |
| 5 | 07002-11423 | O-RING | 3034- | |
| 6 | \6\ | PLUG | 3034- | |
| 7 | \6\ | PLUG | 3034- | |
| 8 | \6\ | SPOOL | 3034- | |
| 9 | 723-62-31520 | PLUG | 3034- | |
| 10 | 07002-10823 | O-RING | 3034- | |
| 11 | 723-62-31530 | PISTON | 3034- | |
| 12 | 723-62-31540 | SPRING | 3034- | |
| 13 | 723-62-31640 | GUIDE | 3034- | |
| 14 | 723-62-31630 | PLUG | 3034- | |
| 15 | 07002-14234 | O-RING | 3034- | |
| 16 | 07000-13032 | O-RING | 3034- | |
| 17 | 07001-03032 | RING,BACK-UP | 3034- | |
| 18 | 723-62-31570 | PLUG | 3034- | |
| 19 | 07002-13634 | O-RING | 3034- | |
| 20 | 723-62-31580 | SPRING | 3034- | |
| 21 | 723-62-31590 | RETAINER | 3034- | |
| 22 | 723-62-31610 | PLUG | 3034- | |
| 23 | 07002-13634 | O-RING | 3034- | |
| 24 | \6\ | RETAINER | 3034- | |
| 25 | \6\ | ORIFICE | 3034- | |
| 26 | 723-62-31720 | PLUG | 3034- | |
| 27 | 700-61-49160 | O-RING | 3034- | |
| 28 | 723-63-31850 | O-RING | 3034- | |
| 29 | 723-63-31860 | RING | 3034- | |
| 30 | 709-74-92821 | PLUG | 3034- | |
| 31 | 709-94-92811 | VALVE | 3034- | |
| 32 | 709-94-91751 | SPRING | 3034- | |
| 33 | 700-93-11320 | O-RING | 3034- | |
| 34 | 700-93-11330 | RING | 3034- | |
| 35 | 723-63-31880 | PLUG | 3034- | |
| 36 | 07002-13634 | O-RING | 3034- | |
| 37 | 07000-12018 | O-RING | 3034- | |
| 38 | 07001-02018 | RING | 3034- | |
| 39 | 723-62-31750 | PLUG | 3034- | |
| 40 | 07002-13634 | O-RING | 3034- | |
| 41 | 07000-12018 | O-RING | 3034- | |
| 42 | 07001-02018 | RING,BACK-UP | 3034- | |
| 43 | 07040-11007 | PLUG | 3034- | |
| 44 | 07002-11023 | O-RING | 3034- | |
| 45 | (723-60-11100) | VALVE ASS'Y,SUCTION AND SAFETY | 3034- | |
| 46 | 723-63-31990 | PLUG | 3034- | |
| 47 | 07000-13035 | O-RING | 3034- | |
| 48 | 07001-03035 | RING,BACK-UP | 3034- | |
| 49 | 07000-13030 | O-RING | 3034- | |
| 50 | 07001-03030 | RING,BACK-UP | 3034- | |
| 51 | (723-60-23301) | VALVE ASS'Y,CHECK | 3034- | |
| 52 | (723-60-23400) | VALVE ASS'Y,CHECK | 3034- | |
| 53 | (723-60-23800) | VALVE ASS'Y,SUCTION | 3034- | |
| 54 | (723-60-23601) | VALVE ASS'Y,CHECK | 3034- |
