| Item | Part No. | Part Name | Qty | Serial No. |
| (709-12-14801) | CONTROL VALVE | 80001- | ||

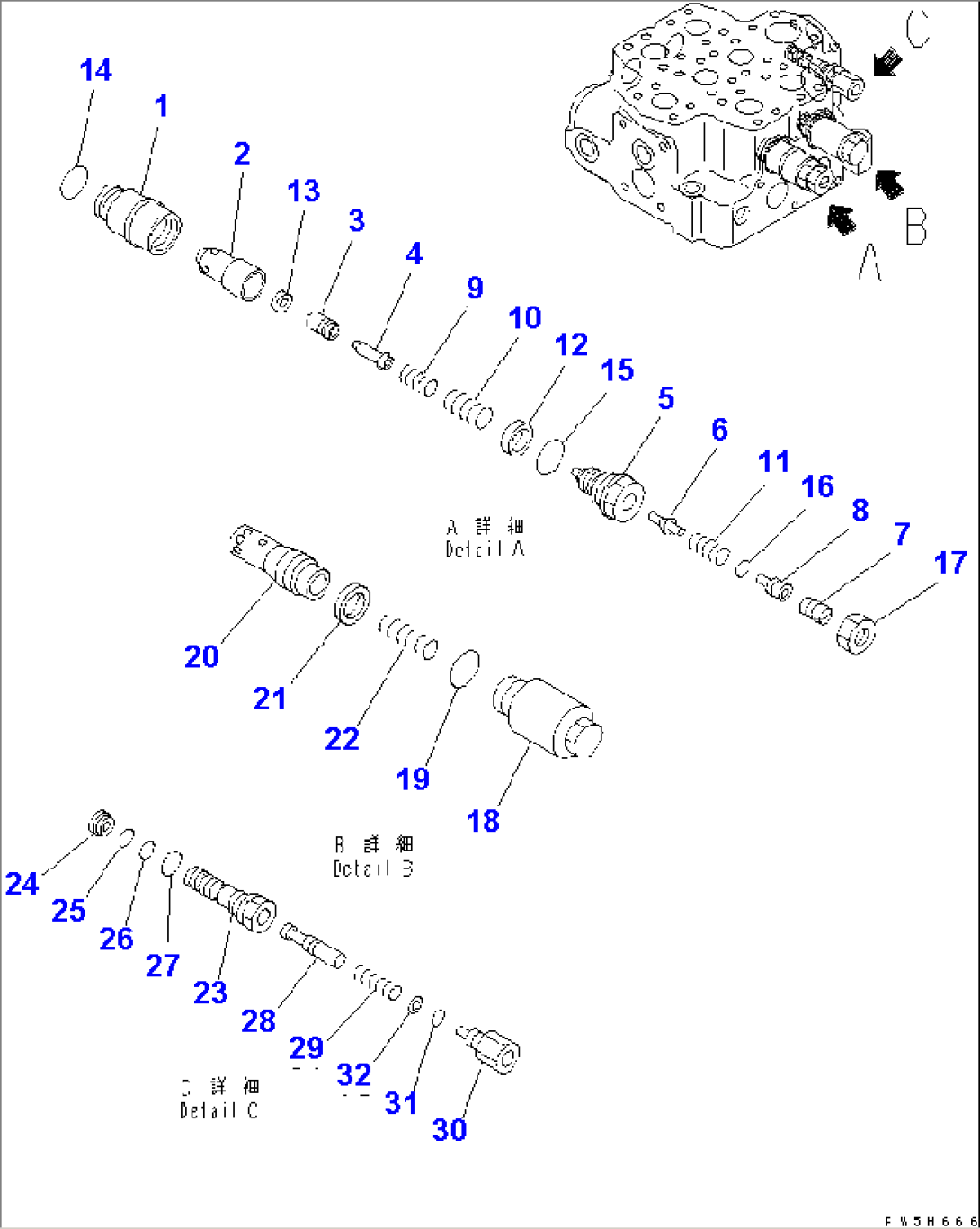

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-07A0. | ||||
| 709-10-62700 | VALVE ASS'Y,SUCTION AND SAFETY | 80001- | ||
| 1 | \6\ | SLEEVE | 80001- | |
| 2 | \6\ | SLEEVE | 80001- | |
| 3 | \6\ | POPPET | 80001- | |
| 4 | \6\ | PISTON | 80001- | |
| 5 | \6\ | PLUG | 80001- | |
| 6 | \6\ | POPPET | 80001- | |
| 7 | \6\ | SCREW | 80001- | |
| 8 | \6\ | SPACER | 80001- | |
| 9 | \6\ | SPRING | 80001- | |
| 10 | \6\ | SPRING | 80001- | |
| 11 | \6\ | SPRING | 80001- | |
| 12 | \6\ | SEAL | 80001- | |
| 13 | \6\ | SEAL | 80001- | |
| 14 | 07002-13634 | O-RING | 80001- | |
| 15 | \6\ | O-RING | 80001- | |
| 16 | \6\ | O-RING | 80001- | |
| 17 | \6\ | NUT | 80001- | |
| 700-90-74001 | VALVE ASS'Y,SUCTION | 80001- | ||
| 18 | \6\ | SLEEVE | 80001- | |
| 19 | 07002-03634 | O-RING | 80001- | |
| 20 | \6\ | VALVE | 80001- | |
| 21 | \6\ | SEAL | 80001- | |
| 22 | \6\ | SPRING | 80001- | |
| 709-10-68401 | VALVE ASS'Y | 80001- | ||
| 23 | \6\ | SLEEVE | 80001- | |
| 24 | \6\ | SEAT | 80001- | |
| 25 | 700-22-11410 | O-RING | 80001- | |
| 26 | 07000-12016 | O-RING | 80001- | |
| 27 | 07002-12434 | O-RING | 80001- | |
| 28 | \6\ | PISTON | 80001- | |
| 29 | \6\ | SPRING | 80001- | |
| 30 | \6\ | NIPPLE | 80001- | |
| 31 | \6\ | O-RING | 80001- | |
| 32 | \6\ | SHIM, 0.2MM | 80001- |
