| Item | Part No. | Part Name | Qty | Serial No. |
| (709-12-12603) | CONTROL VALVE | 10043- | ||
| (709-12-12602) | CONTROL VALVE | 10003-10042 | ||
| (709-12-12601) | CONTROL VALVE | 10001-10002 | ||

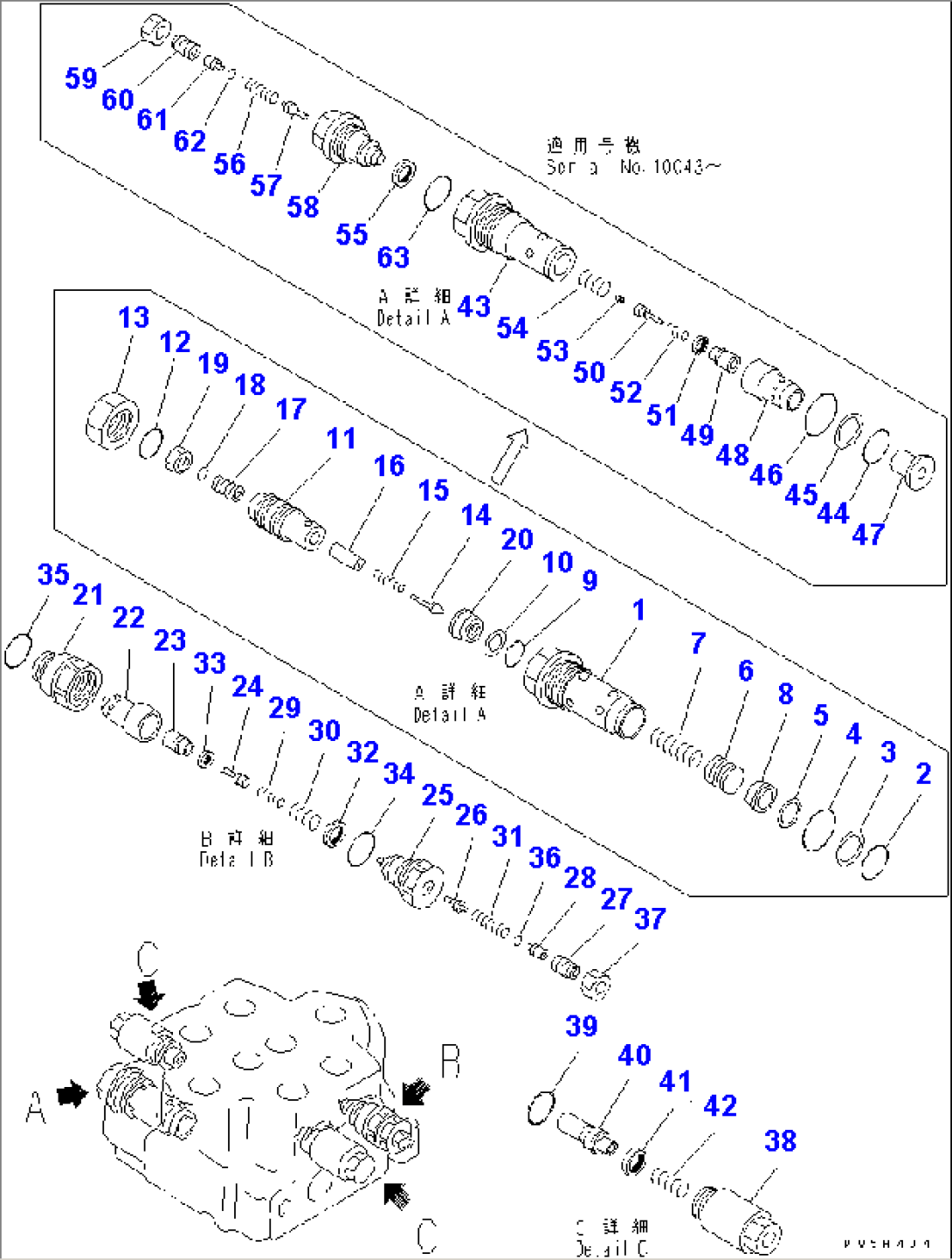

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 AND Y1660-02A0. | ||||
| 709-10-53701 | VALVE ASS'Y,RELIEF | 10003-10042 | ||
| 709-10-53700 | VALVE ASS'Y,RELIEF | 10001-10002 | ||
| 1 | \6\ | SLEEVE | 10001-10042 | |
| 2 | 07000-13032 | O-RING | 10001-10042 | |
| 3 | 07001-03032 | RING | 10001-10042 | |
| 4 | 07002-05234 | O-RING | 10001-10042 | |
| 5 | \6\ | RING,SNAP | 10001-10042 | |
| 6 | \6\ | VALVE | 10001-10042 | |
| 7 | \6\ | SPRING | 10001-10042 | |
| 8 | \6\ | RETAINER | 10001-10042 | |
| 9 | \6\ | O-RING | 10001-10042 | |
| 10 | \6\ | RING,BACK-UP | 10001-10042 | |
| 11 | \6\ | HOLDER | 10001-10042 | |
| 12 | \6\ | O-RING | 10001-10042 | |
| 13 | \6\ | NUT | 10001-10042 | |
| 14 | \6\ | POPPET | 10001-10042 | |
| 15 | \6\ | SPRING | 10001-10042 | |
| 16 | \6\ | RETAINER | 10001-10042 | |
| 17 | \6\ | SCREW | 10003-10042 | |
| \6\ | SCREW | 10001-10002 | ||
| 18 | \6\ | O-RING | 10001-10042 | |
| 19 | \6\ | NUT | 10003-10042 | |
| \6\ | NUT | 10001-10002 | ||
| 20 | \6\ | SEAT | 10001-10042 | |
| 709-90-71700 | VALVE ASS'Y,SUCTION AND SAFETY | 10001- | ||
| 21 | \6\ | SLEEVE | 10001- | |
| 22 | \6\ | SLEEVE | 10001- | |
| 23 | \6\ | POPPET | 10001- | |
| 24 | \6\ | PISTON | 10001- | |
| 25 | \6\ | PLUG | 10001- | |
| 26 | \6\ | POPPET | 10001- | |
| 27 | \6\ | SCREW | 10001- | |
| 28 | \6\ | SPACER | 10001- | |
| 29 | \6\ | SPRING | 10001- | |
| 30 | \6\ | SPRING | 10001- | |
| 31 | \6\ | SPRING | 10001- | |
| 32 | \6\ | SEAL | 10001- | |
| 33 | \6\ | SEAL | 10001- | |
| 34 | \6\ | O-RING | 10001- | |
| 35 | 07002-03634 | O-RING | 10001- | |
| 36 | \6\ | O-RING | 10001- | |
| 37 | \6\ | NUT | 10001- | |
| 700-90-74001 | VALVE ASS'Y,SUCTION | 10001- | ||
| 38 | \6\ | SLEEVE | 10001- | |
| 39 | 07002-03634 | O-RING | 10001- | |
| 40 | \6\ | VALVE | 10001- | |
| 41 | \6\ | SEAL | 10001- | |
| 42 | \6\ | SPRING | 10001- | |
| 709-10-54600 | VALVE ASS'Y,RELIEF | 10043- | ||
| 43 | \6\ | SLEEVE | 10043- | |
| 44 | 07000-13032 | O-RING | 10043- | |
| 45 | 07001-03032 | RING | 10043- | |
| 46 | 07002-15234 | O-RING | 10043- | |
| 47 | \6\ | ORIFICE | 10043- | |
| 48 | \6\ | SLEEVE | 10043- | |
| 49 | \6\ | POPPET | 10043- | |
| 50 | \6\ | PISTON | 10043- | |
| 51 | \6\ | SEAL | 10043- | |
| 52 | \6\ | SPRING | 10043- | |
| 53 | \6\ | SEAT | 10043- | |
| 54 | \6\ | SPRING | 10043- | |
| 55 | \6\ | SEAL | 10043- | |
| 56 | \6\ | SPRING | 10043- | |
| 57 | \6\ | POPPET | 10043- | |
| 58 | \6\ | PLUG | 10043- | |
| 59 | \6\ | NUT | 10043- | |
| 60 | \6\ | SCREW | 10043- | |
| 61 | \6\ | SPACER | 10043- | |
| 62 | \6\ | O-RING | 10043- | |
| 63 | \6\ | O-RING | 10043- |
